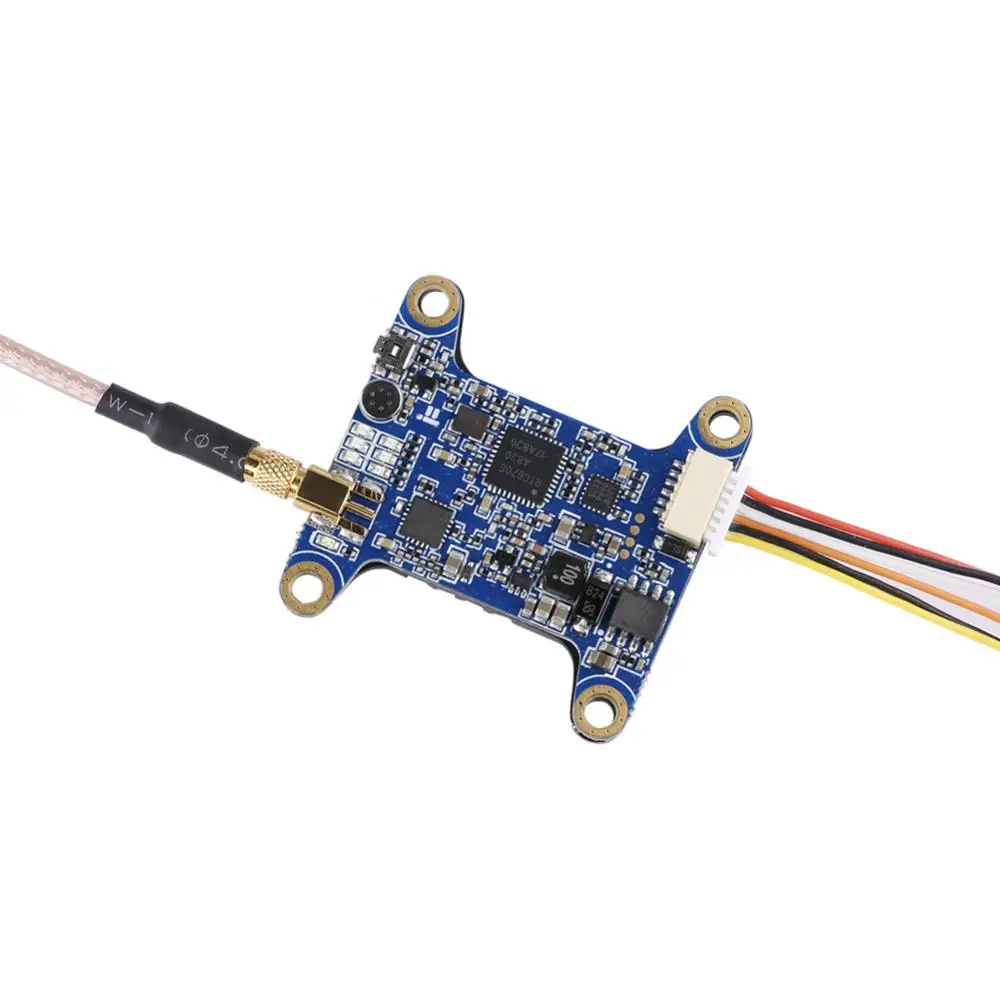

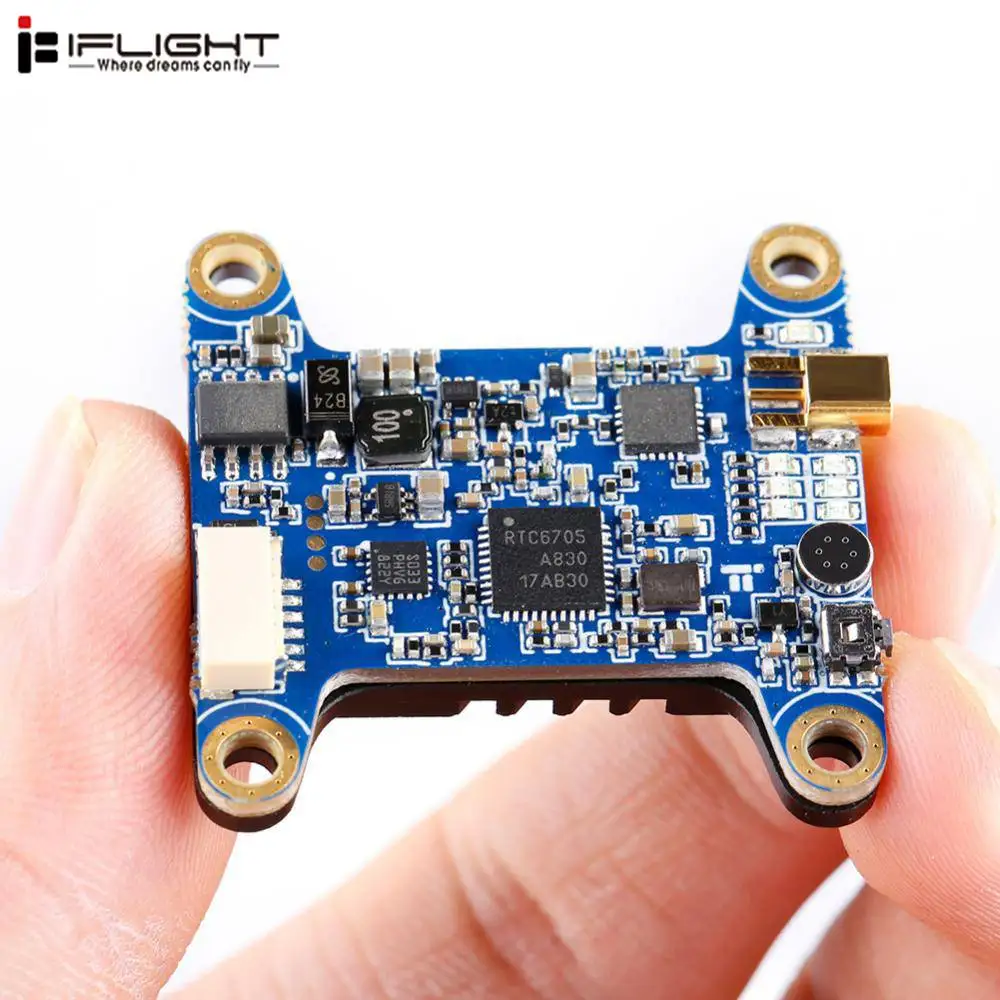

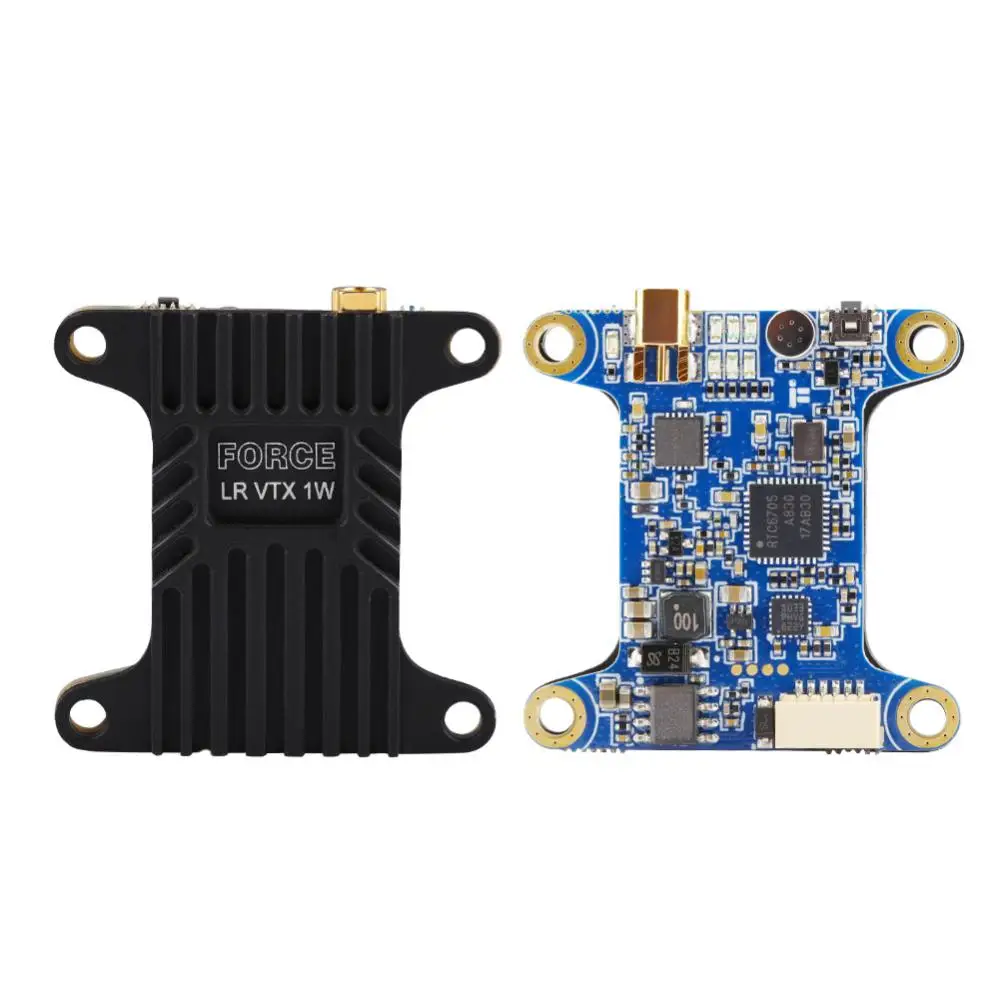

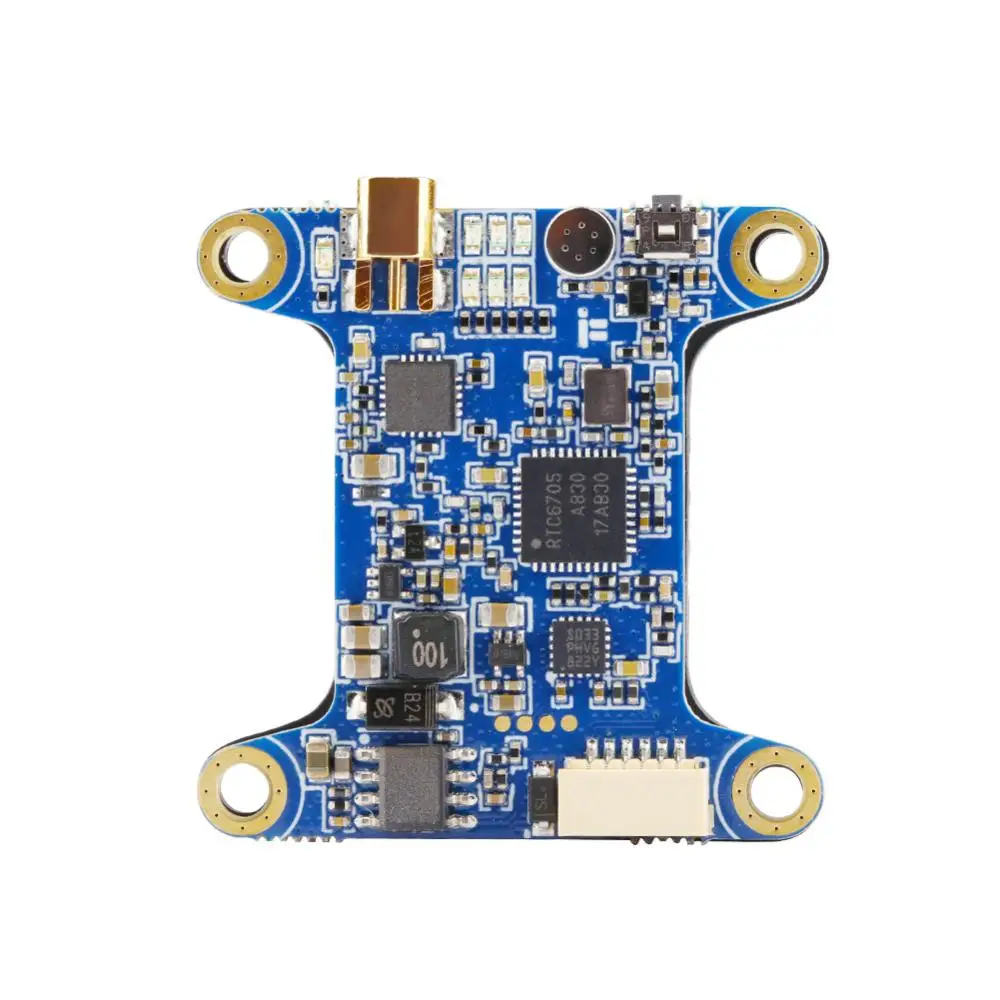

iFlight The Force Long Range 5.8G 48CH 1W RC Drone VTX OSD 25mW/200mW/400mW/800mW/1000mW Switchable

Specification:
Brand name: iFlight
Item name: The Force Long Range 1W VTX
Input voltage: DC 7-28V
Input current: +12V/500mA@1000mW
Output power: 25mW/200mW/400mW/800mW/1000mW switchable
Channel: 48CH
Connector: MMCX (with sma/rp-sma extension cable)
Size: 36x36x8mm
Mounting hole: 4-M3

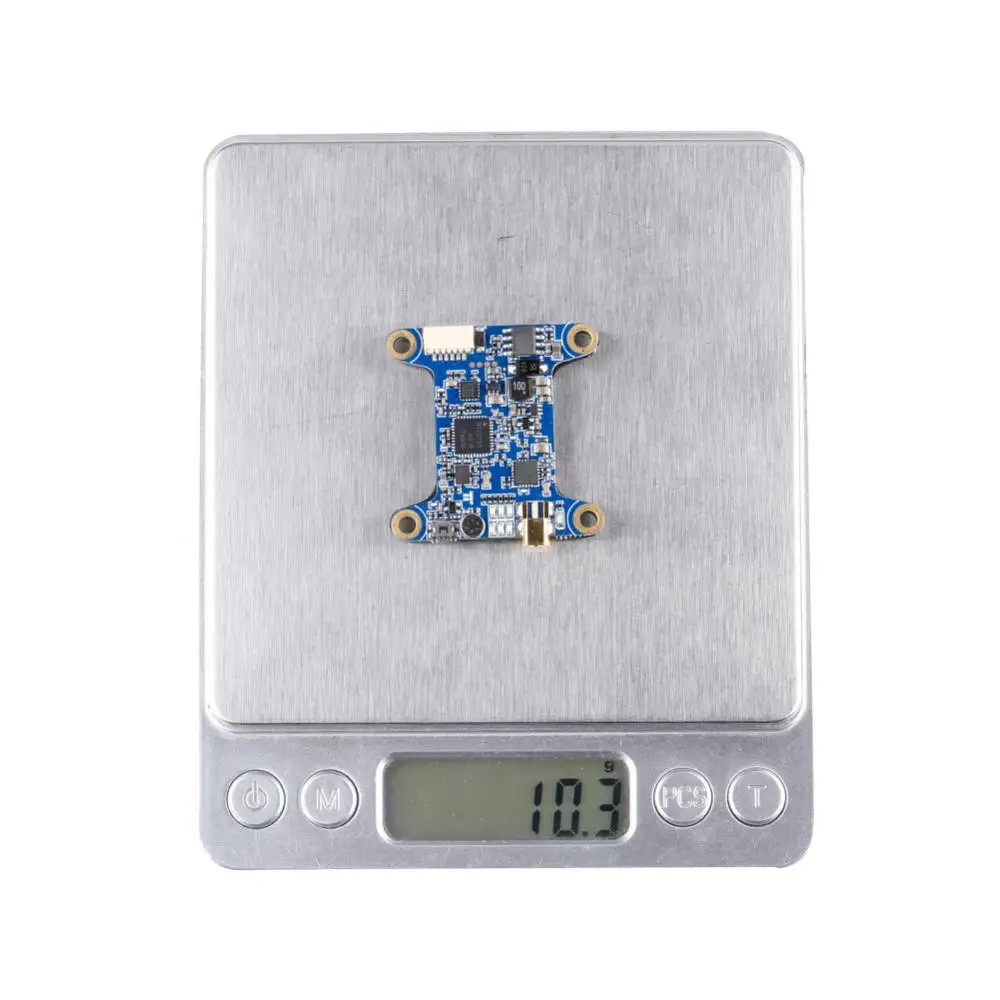

Weight: ≤11g(excluding antenna)

Features:
- Support OSD Frequency and Power tuning;
- The output power is stable, the far transmission distance: ≥10km
- Transmit power 5 gear switch: 25mW/200mW/400mW/800mW/1000mW;
- Output 48 frequency points, and has 6 group 8 race frequency at the same time using each other without interference;
- Frequency lock fast, the boot does not interfere with companions;
- Built-in output power self-check function;
- Full format video format: NTSC /PAL;
- Wide input voltage range. low power consumption:
7V-28V +12V/500mA@1000mW;
- Small size: 36mm×36mm×8mm;
- Mounting holes 4-M3
- Lightweight: ≤11g(excluding antenna)

How to switch frequency and power
1.BetaFlight Firmware
2.CH & FR Switching
Short press Function Button once to change CH(CH1-CH8)
Long press Function Button for 2 seconds and then short press to change FR A b E F r L
3.Power Switching
Long press for 10 seconds and then short press the button to change Power
25mW/200mW/400mW/800mW/1000mW

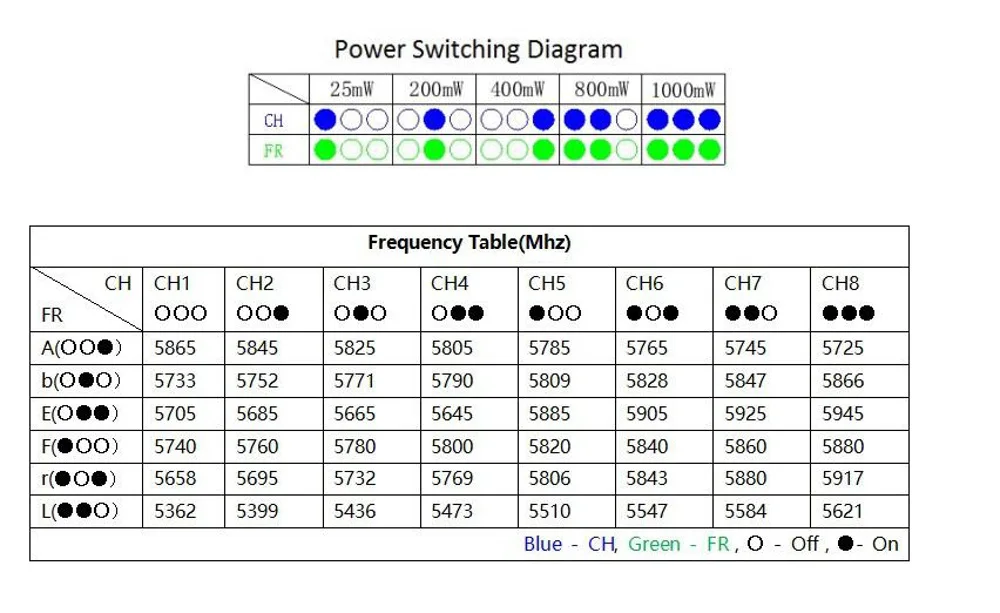

Power Diagram:
Power Indicator: Red
25mW: Flash 1 time stop for 3 seconds
200mW: Flash 2 times stop for 3 seconds
400mW: Flash 3 times stop for 3 seconds
800mW: Flash 4 times stop for 3 seconds
1000mW: Flash 5 times stop for 3 seconds
0mW/fault: Always on

Notice:
* Please ensure that antenna is installed on the output terminal of VTX before powering to avoid damage of internal components;
* Please note that input voltage is underspecified range; positive and negative polarities of output terminal are on right position to avoid damage of internal components;
* If the antenna is needed to be replaced, please choose an antenna with a good standing wave and gain effect to achieve a longer transmission distance;
* Pay attention to ESC protection during transportation and installation;

Package Included:
1 x The Force Long Range 1W VTX
