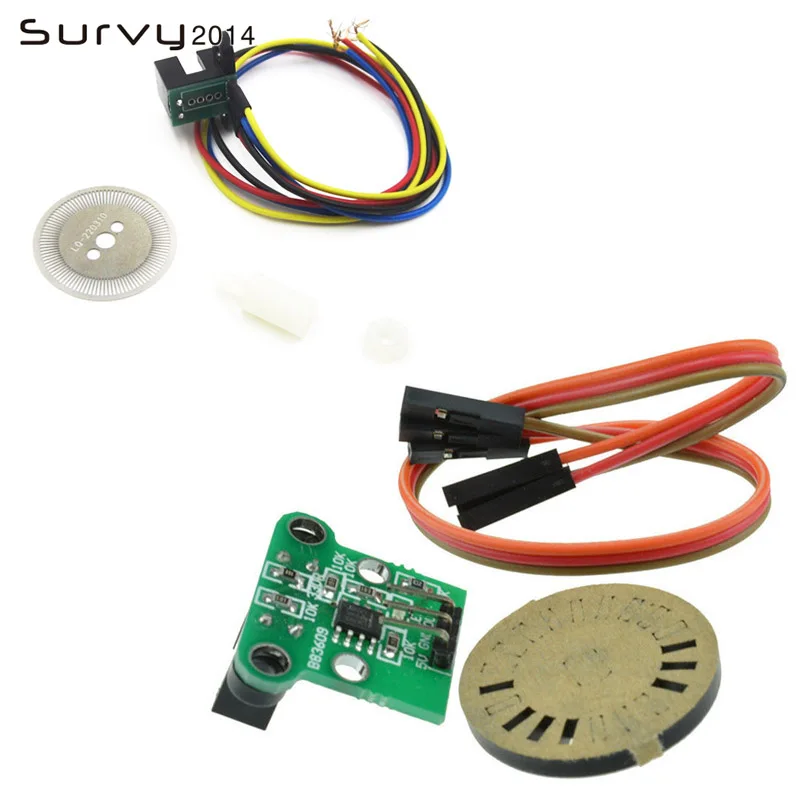

HC-020K Double Speed Measuring Module w/ Photoelectric Encoders to Test Motor's Rotational | Электронные компоненты и

HC-020K Double Speed Measuring Module w/ Photoelectric Encoders to Test Motor's Rotational | Электронные компоненты и

 A

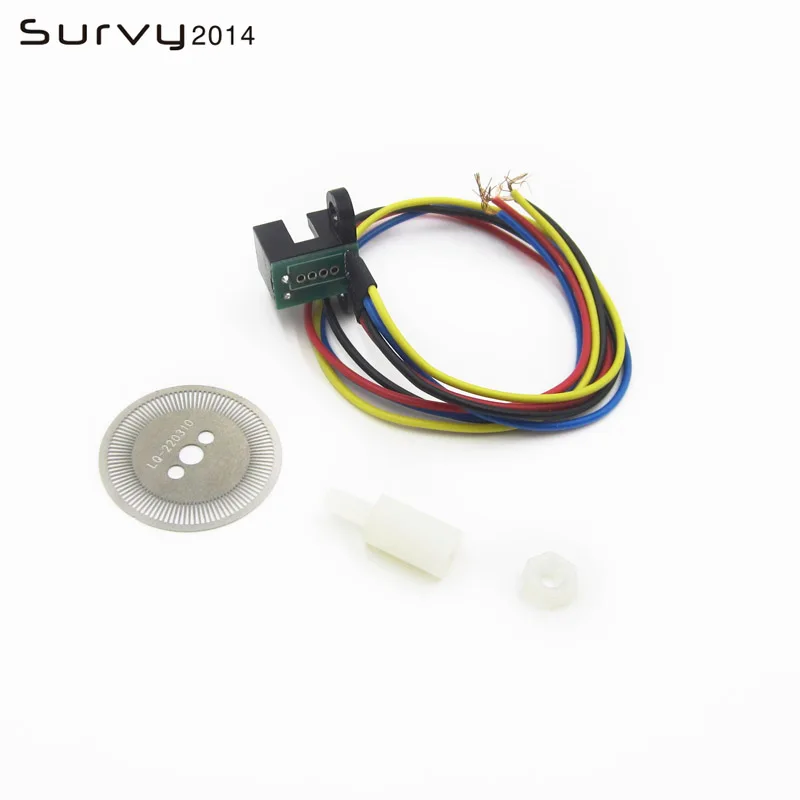

Code disk Technical parameters:

Brand new and high quality.
Number of lines: 100 lines
Outer diameter: 22mm
Bore Diameter: 3.5mm
Thickness: 0.3mm
Material: Steel
Production process: Laser Cutting
Speed of pipe technical parameters:
On the tube Manufacturer: Hewlett-Packard HP Original
Supply voltage: 5V
Wiring: Red-5V Black-GND
Output Signal: 5Vp-p two quadrature signal output
Package

1*Photoelectric Speed Sensor Encoder Coded Disc code wheel for Freescale Smart car

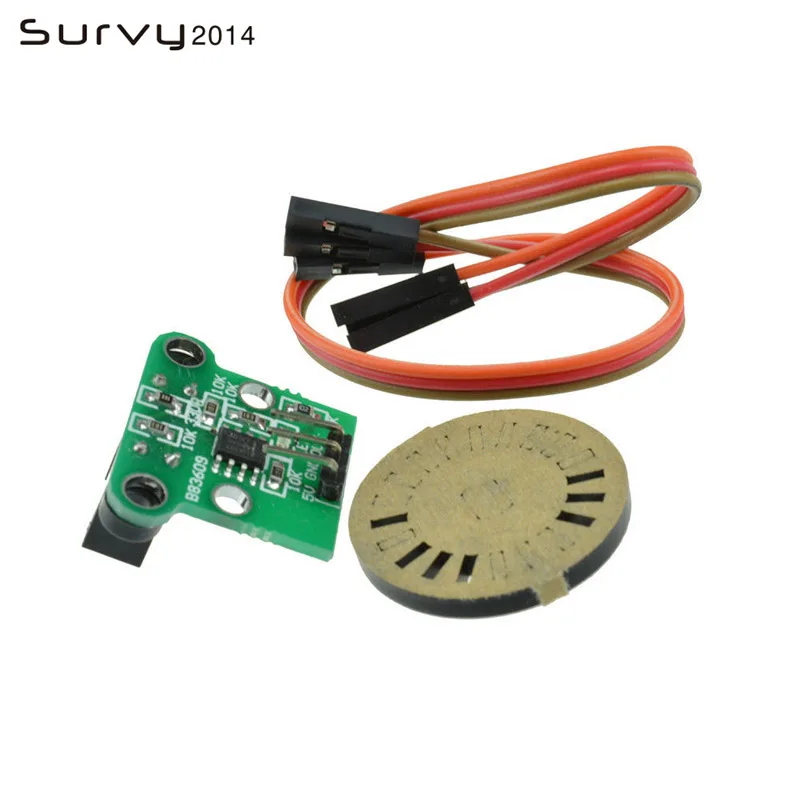

HC-020K Photoelectric Speed Sensor

B
Features:

Module Working Voltage: 4.5-5.5V
Launch Tube Pressure Drop: Vf=1.6V
Launch Tube Current: If<20mA
Signal output: A, B two lines; TT power level;
Resolution: 0.01mm
Measurement frequency: 100KHz
Disc diameter: 24mm
Inner Disc Diameter: 4mm
Encoder resolution: 20 lines
Speed measuring sensor configuration: measure line 1 motor speed
Application: For experiment

Package Included:
1 x Encoders
