Overview:

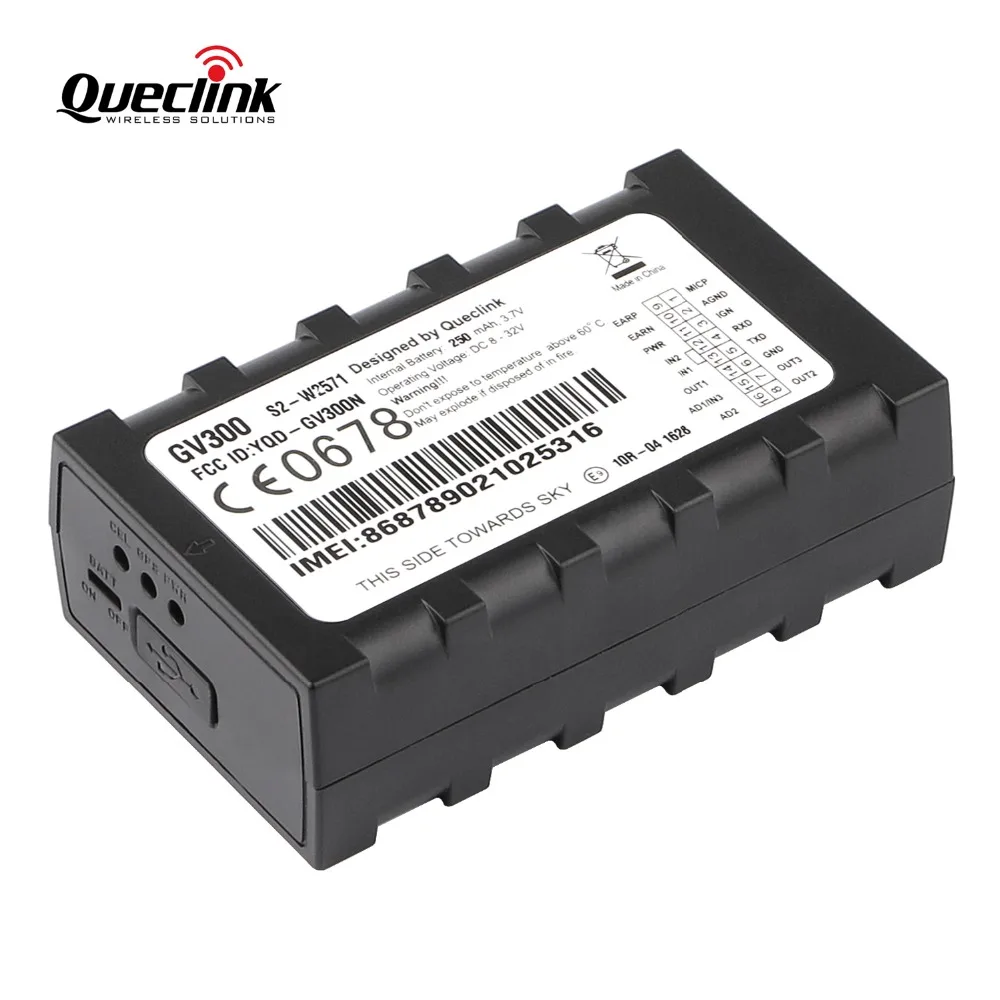

The GV300 is a compact GPS tracker designed for a wide variety of vehicle tracking applications. It has multiple I/O interfaces that can be used for monitoring or controlling external devices. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the GV300N's location to be monitored in real time or periodically tracked by a backed server and mobile devices. Its built-in 3-axis accelerometer allows motion detection and extends battery life through sophisticated power management algorithms. System integration is straightforward as complete documentation is provided for the full featured @ Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, driving behavior, low battery and scheduled GPS position.

Main Features:

*Wide operating voltage range 8V to 32V DC

*Internal u-blox chipset

*Low power consumption, long standby time with internal battery

*Quad band GSM/GPRS 850/900/1800/1900 MHz

*Embedded full featured @Track protocol

*Multiple I/O interfaces for monitoring and control

*Internal 3-axis accelerometer supporting driving behavior monitoring, power saving and motion detection

*Internal GSM antenna

*Internal and external GNSS antenna

*CE/FCC/E-Mark/Anatel GV300 certified

Specifications

GSM Specifications

Frequency： Quad band:  850/900/1800/1900 MHz， Compliant to GSM phase 2/2+，-Class 4 (2W @ 850/900 MHz)， -Class 1 (1W @ 1800/1900 MHz)

GPRS： GPRS multi-slot class 12 (10 by default)， GPRS mobile station class B

GNSS Specifications

GNSS Type： u-blox All-In-One GPS receiver

Sensitivity： Autonomous: -147 dBm， Hot start: -156 dBm， Reacquisition: -160 dBm， Tracking: -162 dBm

Position Accuracy (CEP): Autonomous: < 2.5m

TTFF (Open Sky): Cold start: 27s average, Warm start: 27s average, Hot start: 1s average

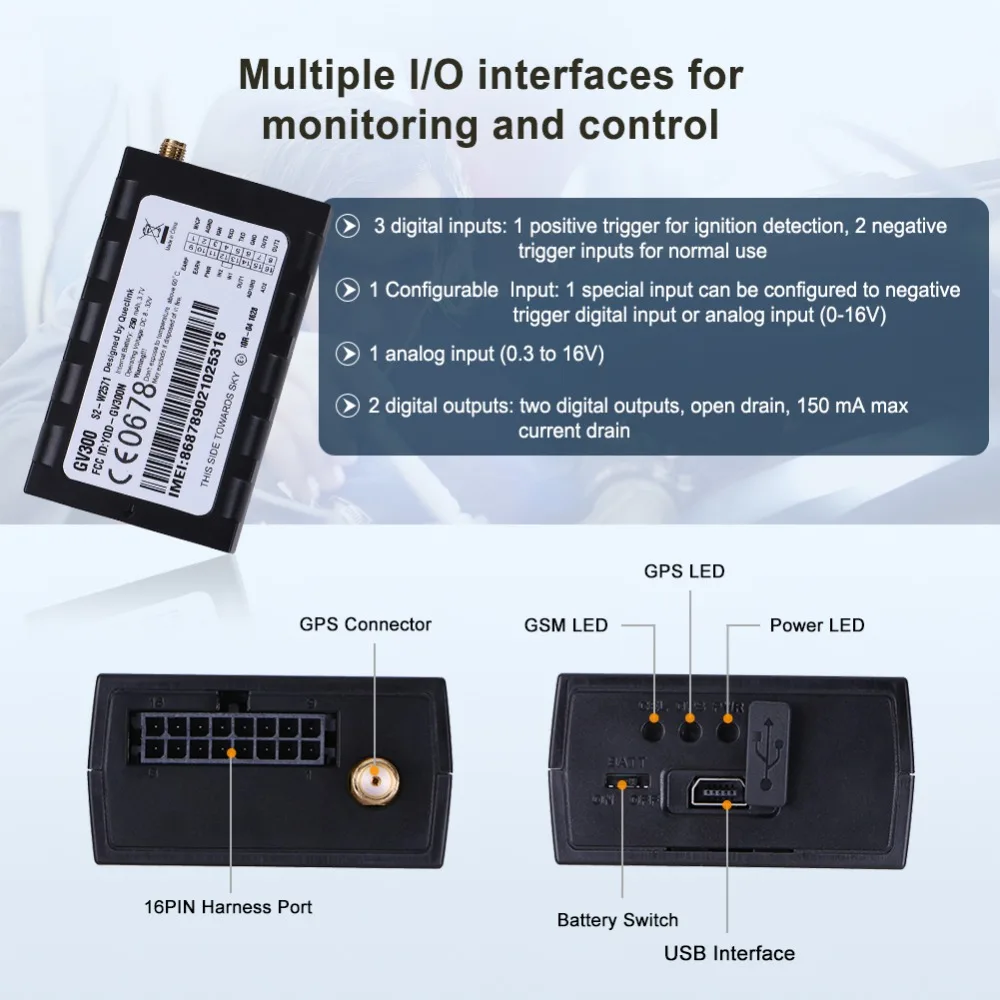

Interfaces

Digital Inputs: 1 positive trigger input for ignition detection, 2 negative trigger inputs for normal use

Configurable  Input: 1 special input can be configured as a negative trigger digital input or an analog input (0V-16V)

Analog Input: 1 analog input (0.3V-16V)

Digital Outputs: 2 digital outputs, open drain, 150 mA max drive current

Latched Digital Output: 1 digital output with internal latch circuit, open drain, 150 mA max drive current

Two-way Audio Interfaces: 2 differential outputs, 1 single end input

Cellular Antenna: Internal only

GNSS Antenna: Internal antenna and optional external antenna

LED Indicators: CEL, GNSS, PWR

Mini USB Interface: Used for upgrading and debugging

Serial Port: 1 RS232 serial port on 16 pin molex type connector, for external devices (GARMIN protocol support)

General Specifications

Dimensions: 80mm(L) x 49mm(W) x 26mm(H)

Weight: 72g

Backup Battery: Li-Polymer, 250 mAh

Operating Voltage: 8V to 32V DC

Operation Temperature: -30℃ ~ +80℃      -40℃ ~ +80℃ for storage

Air Interface Protocol

Transmit Protocol: TCP, UDP, SMS

Scheduled Report: Report position and status based on preset time intervals, distance, mileage or a combination of these settings

Geo-fences: Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions

Low Power Alarm: Alarm when backup battery is low

Power On Report: Report when the device is powered on

Tow Alarm: Alarm for tow event in ignition-off state

Antenna Disconnect Alarm: Alarm when external GPS antenna is disconnected

Driving Behavior Monitoring: Aggressive driving behavior detection, including harsh braking, acceleration, etc.

Crash Detection: Accident data collection for reconstruction and analysis

Special Alarm: Special alarm based on digital/analog inputs

Remote Control: OTA control of digital outputs

About web platform:


Now we have not developed their own tracking platform for the model of GV300, but our devices can be compatible with the well-known tracking platform on the market:

1. North America: positionlogic

2. Global: GPSGATE, Key Telematics, Gurtam

Plz don't hesitate to contact with us if you want to develop your own tracking platform, we can provide the protocol  to help you develop your tracking platform!

1 * GV300 Main Unit gps tracer car  SM Tracker
