4-Channel HD-TVI 5MP Lite Video Security System DVR recorder with 4x HD Indoor/Outdoor Weatherproof CCTV IP Camera | Безопасность и

4-Channel HD-TVI 5MP Lite Video Security System DVR recorder with 4x HD Indoor/Outdoor Weatherproof CCTV IP Camera | Безопасность и

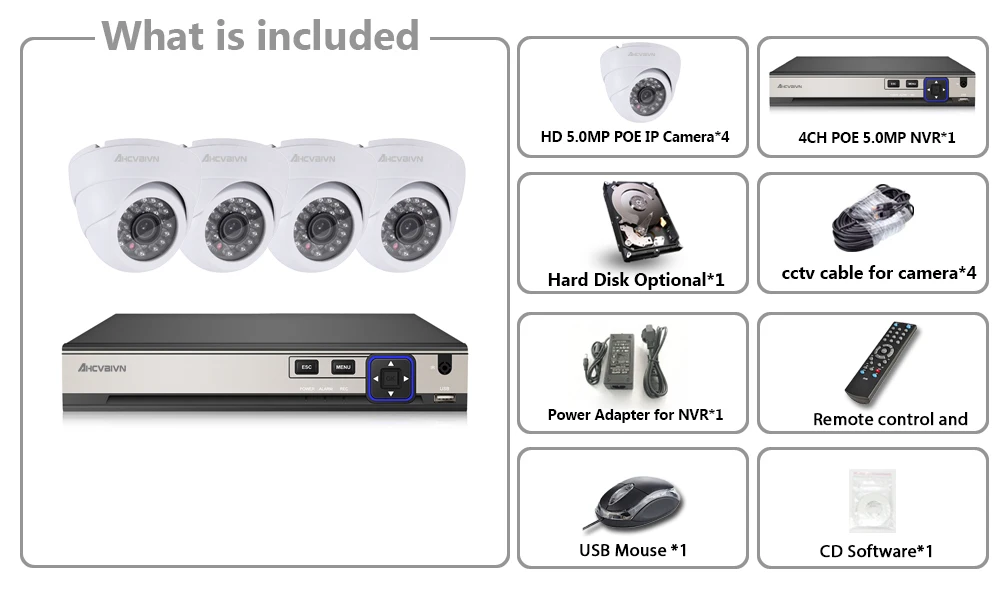

• 1 X 4CH 5.0MP POE NVR Network Video Recorder
• 4 x HD POE IP 5.0MP indoor outdoor IR Day Night vision weatherproof cameras(color optional)
• 4 X 65feet(20m) Network cable for camera
• 1 x Power Supply for NVR
• 1 X USB Mouse for NVR
• 1 X Software CD for NVR
• 1 X Remote Control for NVR
• Hard Disk Optional !!!

AHCVBIVN Security - CCTV Camera System, A guaranteed and reliable Security Solution for your Home and Business! 720P/960P/1080P/2MP/3MP/4MP/ 5MP High Definition and Video at day and night. Email alerts and Motion detection, IP66! Waterproof and universal for Outdoor/Indoor, free app for P2P Cloud function and storage, support android, iPhone , ipad,PC,CMS etc.

• 4pcs HD POE 5.0MP CCTV IP Cameras;
• 4CH POE 5.0MP IP NVR Recorder
• Strong Network Server;
• With P2P Cloud Function;
• support USB ,Mouse,backup;
• Support Android,iphone,ipad,pc,cms view;
• Support VGA output&HDMI output;
• Support Alarm input ,Alarm output;
• Record Resolution: 5.0MP;
• With H.265 High efficiency Video Compression;
• Auto White Balance,Auto Gain control,back light comp;
• HDD Interface:SATA,Support between 250GB and 6TB;
• Multi-language menus option up to 28 kinds of language;
• *Support 4.0MP cameras input and HDMI &VGA Output ;
• *P2P cloud service for Android/iOS mobile devices remote view anywhere anytime;
• *Motion detection recording. The NVR will be triggered to record when detect something moving. NO trigger, no record, more intelligent and space-saving;
• *Email alert and alarm notification. When motion detection is triggered, the NVR will automatically send out buzzer sound and alarm notifications to your email, including snapshot on the spot;
• *Multiple ways to access on the PC, phone and pad, can be viewed by PC client, Phone APP and IE ,Chrome,Firefox,Safari browser;
• *Support 3.5 inch SATA port hard drive, capacity about 500G/1T/2T/3T/4TB/5TB/6TB, and less than 500G is not supported;
• *This NVR default VGA resolution is 1920*1080, so we suggest you to use the monitor with 1280*1024 or higher resolution 1920*1080 HDMI for normal use;
• HD CCTV POE NVR Digtial Video Recorer,Support all 1.0mp&2.0mp&3.0mp&4.0mp&5mp ip Camera

H.265 4CH 5MP POE NVR Specifications

System

Main processor: Embedded processor

Operating system: Embedded Linux

Video compression:H.265

System resource：Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up

Interface

Operation interface：16bit real color GUI interface support

Preview ： 1/4/8/9

Video

Video standard :PAL; NTSC

Image encode:H.265

Monitor quality: VGA,HDMI:High definition

Video input ：4*5MP IP Camera

Motion detection：Support

Email Alert : Support

Audio

Audio compression ：G.711A

Intercom : Yes

Record&Playback

Record mode：manual>alarm>motion detection>timing

Local playback：5MP

Video search：Time, date, event, channel search

Storage&Back up

Video storage : Local HDD ,Network

Back up mode： Network backup, USB portable，HDD,USB imprint,SATA imprint

Interface

Video input：4CH POE Port

Video output : 1ch VGA,1ch HDMI HD output

Loop output : N/A

Audio I/O :No

Alarm I/O:No

Network port:1*RJ45 1000M self-adaptive Ethernet port;8*POE ports support poe power supply

USB port : 2* USB 2.0

HDD port :1 SATA ports,max support 6TB(HDD is optional)

Other

Power :48V

ONVIF :Support

USB Mouse：included

Remote Control : included

Temperature : -20℃+50℃

Humidity : -10%-90%

Dimension : L255mm* W225mm* H45mm

Weight :1.5KG

NVR Language

Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

HD POE 5.0MP IP Camera Specifications

Video

Image sensor:1/3"inch CMOS

Video quality:5.0MP

Lens:3.6mm lens

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-50degF~122degF / -40degC ~50degC

Operating Power:DC 12V POE

Weatherproof:yes

Minimum Illumination: 0.01 Lux

Body Construction:Dome with Built-in Wall Mount

Noise Reduction: Support 2D/3D

BitRate Control:VBR/CBR

Network Interface:RJ45

Digital WDR: Support

Night Vision

Distance:Up to 40m

IR Cut Filter:yes

Number of IR Lens:24pcs IR LED Array

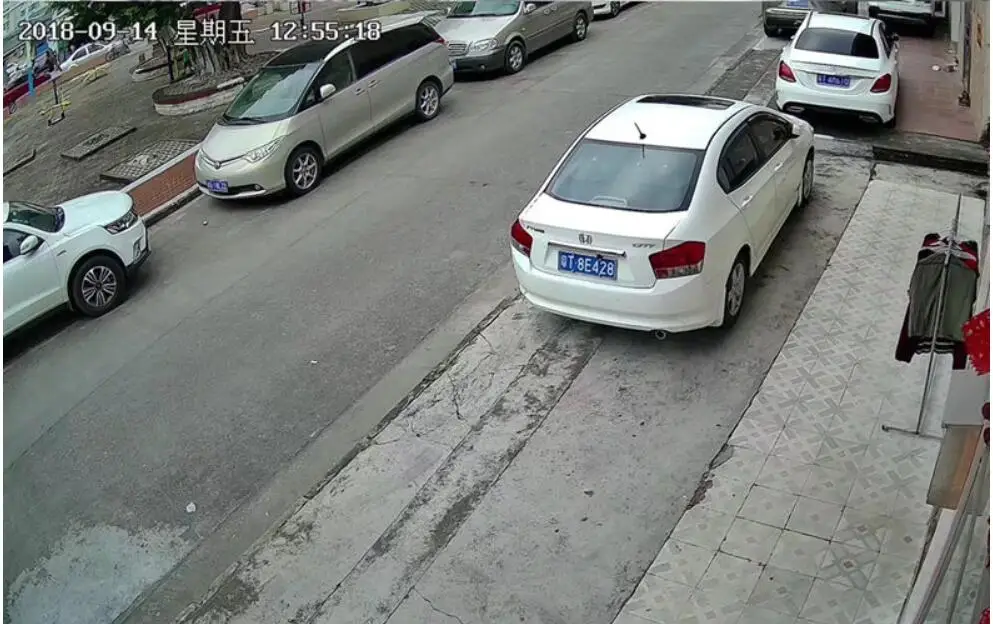

1.HD 5.0MP High Definition Display

High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 5.0MP Resolution.The angle will be more larger,and the image will be more clearer.

2.Why chooses H.265

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

3.Remote access anywhere,anytime

4.Multiple viewing options

View on HDMI Monitor

Easily display video through the HDMI port of your computer monitor to take full advantage of the security system's

clarity(HDMI Cable not included)

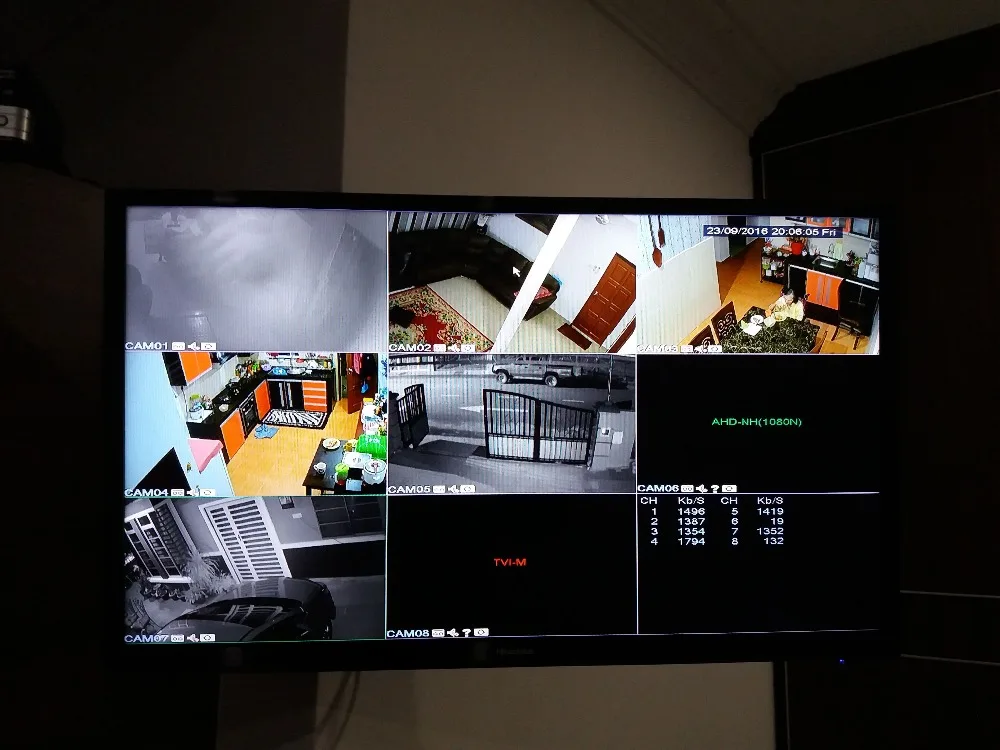

View on TV or PC Monitor

For added convenience, the NVR also comes with VGA and HDMI connections for standard resolution viewing options.

VGA or BNC to RCA cable is not included.

5.Instant email alert

6.Easy remote view setting

Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

7.Easy p2p cloud remote view

8.Plug and play ,Easy to use

The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

1.overview

By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;

Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not distortion.

HD IP POE video output;

The transmission distance is 150 meters;

Support automatic electronic shutter function, adapt to different monitoring environment;

Waterproof design IP67, reliability;

Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;

Easy installation & operation, as same as analog CCTV system

More acceptable, lower price than analog surveilance system

NO Delay, Real time Display.

3.Day and night monitoring

4.3.6mm lens Wide Video angle

Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.
