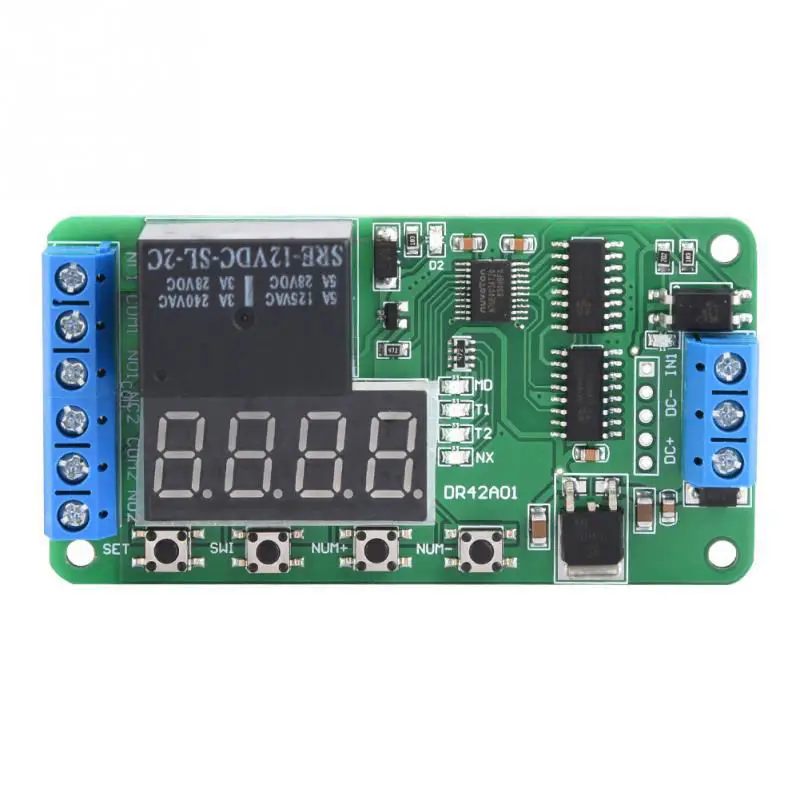

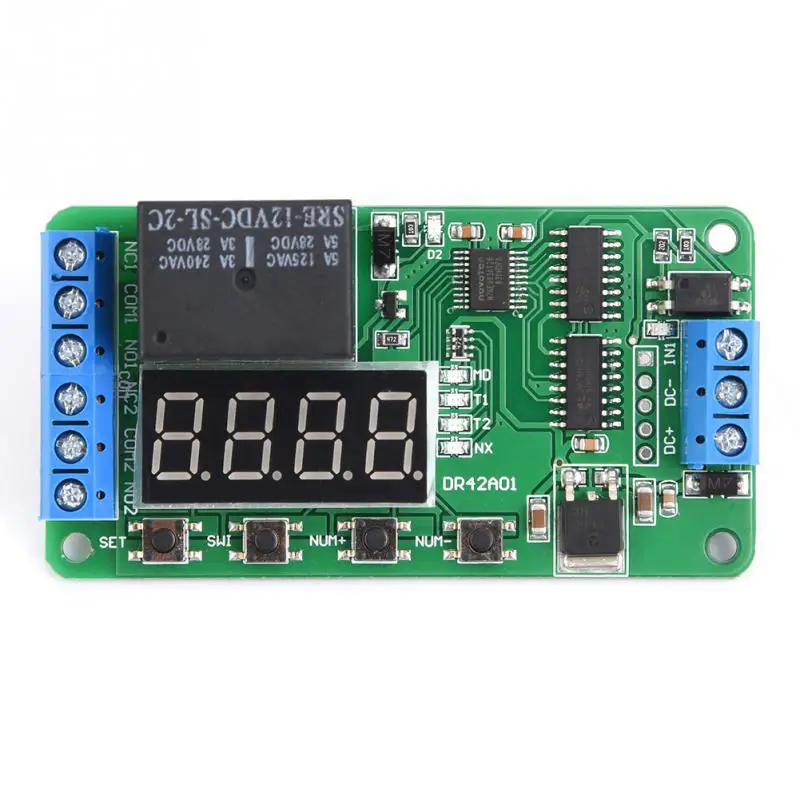

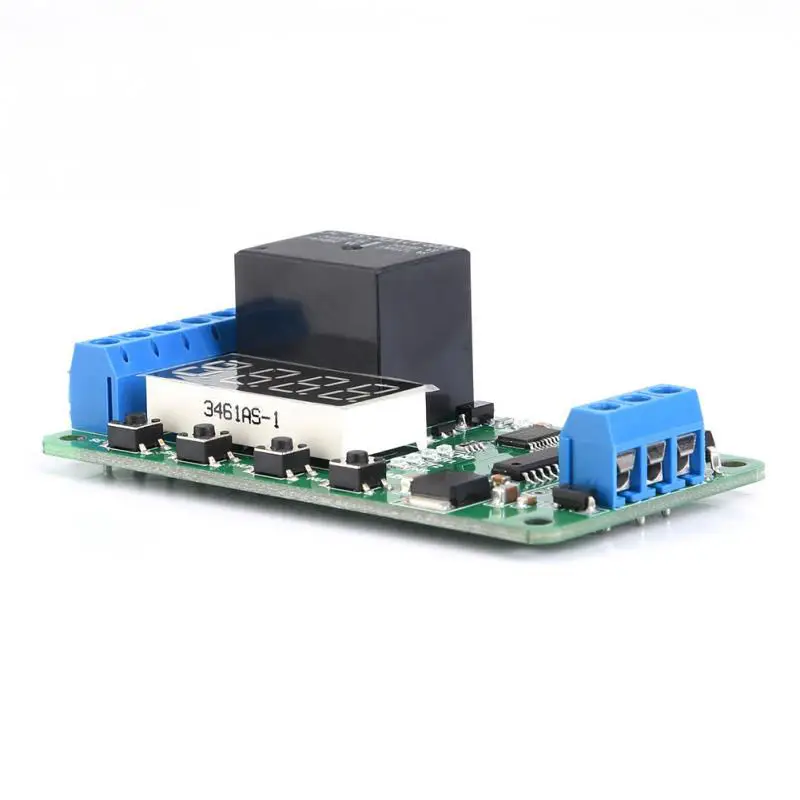

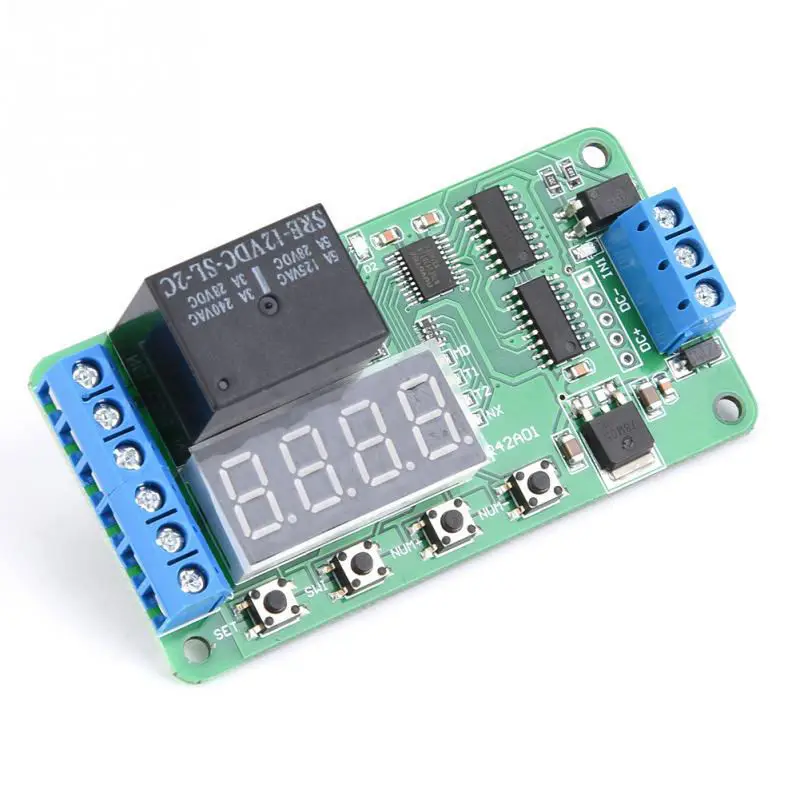

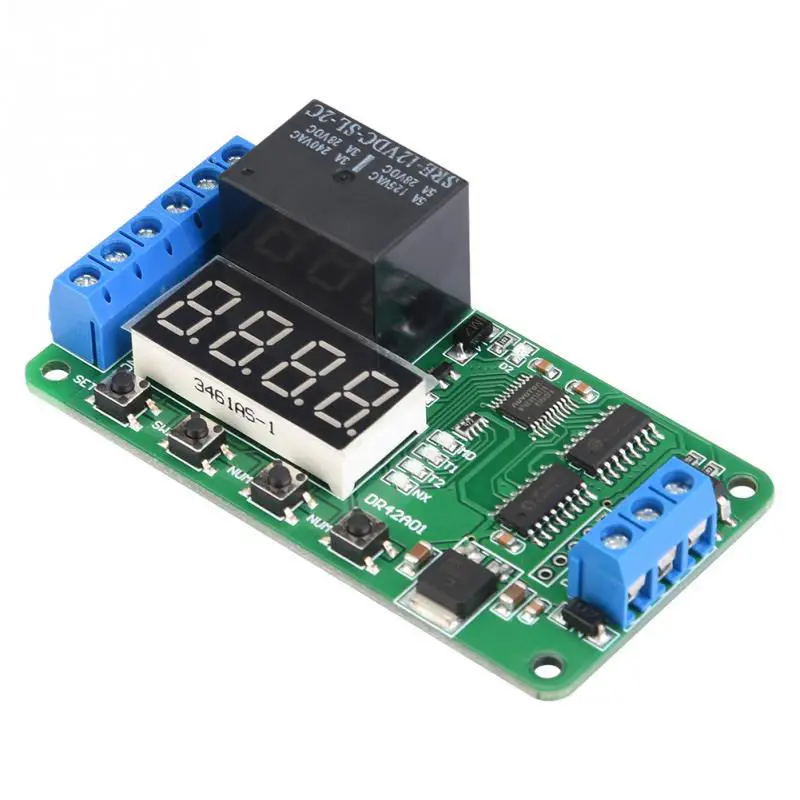

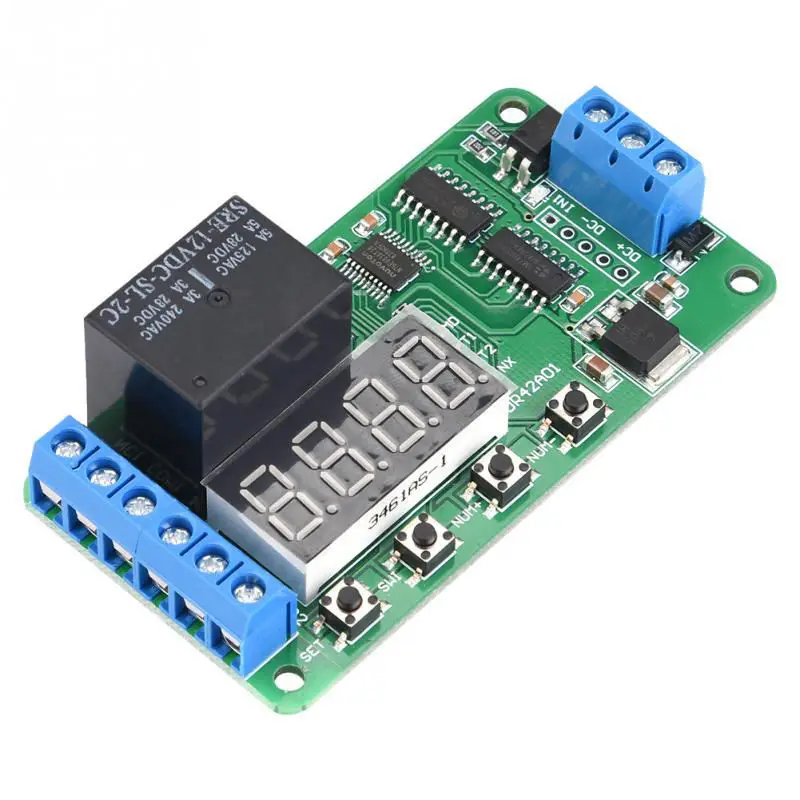

The multifunctional relay control module (DR42A01), designed for the customers of different needs, micro-controller as the main control unit, preset 18 kinds of functions, and can be based on user needs, customize and add other specific functions.
The module using of high-quality power relay module, high-power and high-voltage transistor, red signal lights, double-sided PCB board, stable performance, can be widely used in a variety of power control occasions.   The user can select one of the following 18 kinds of function according to keys and display, can set and save the parameters of the 18 kinds of function, also can view the current function parameters, time parameter sets the minimum 0.1 second adjustable, more expertise.
Gentle remind: Function 1-8 start automatically after power on; function 9-18 start required a low level Pulse signal trigger, and the low level duration greater than or equal to 20ms; function 9 is self-locking mode; function 10 is a level control mode.
Operating Voltage: 12V/(+/-10%)
Working Current: 12V / less than 70mA (when the relay is not operating less than 40mA, turn off the display less than 12mA
Working Temperature:-20 Celsius—60 Celsius(Limit range-30 Celsius—70 Celsius)   Load Capacity:
the module normally open interface maximum load capacity: DC 0-28V/5A, AC 0-125V/5A
the module normally closed interface maximum load capacity: DC 0-28V/3A,AC 0-240V/3A
Quantity: 1 Pc
colour:Green + blue
Material:ABS+ metal
size:76x40x20mm/3x1.47x0.79inch
Screw holes center distance: 69x33mm/2.7x1.3inch   Package Contents:
1 * Delay Timer Relay
Only the above package content, other products are not included.   Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
