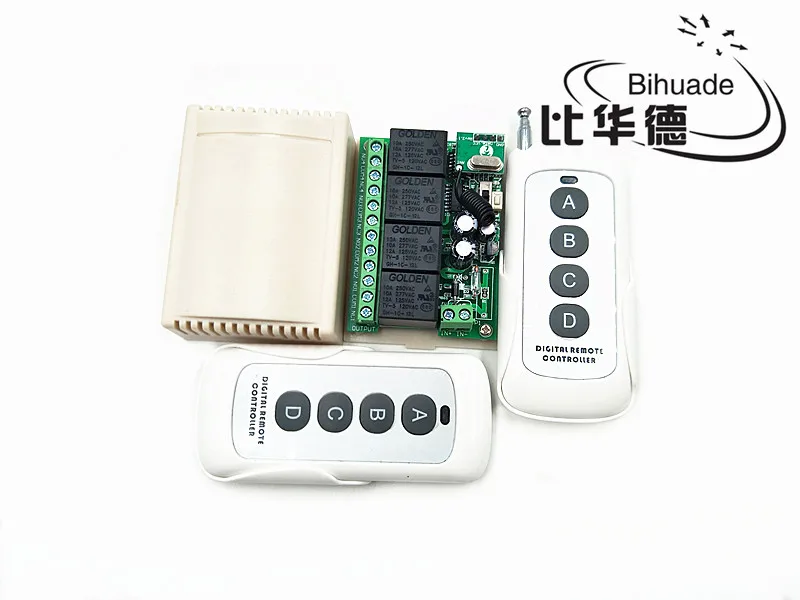

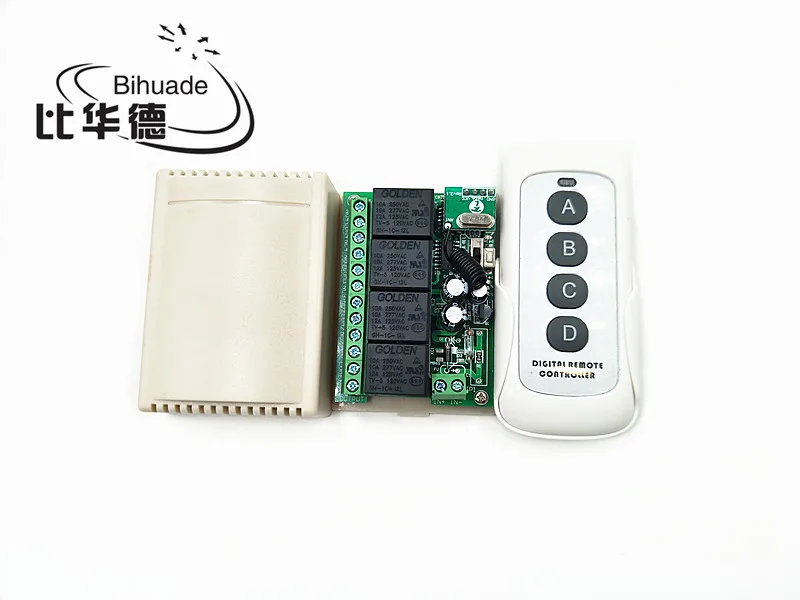

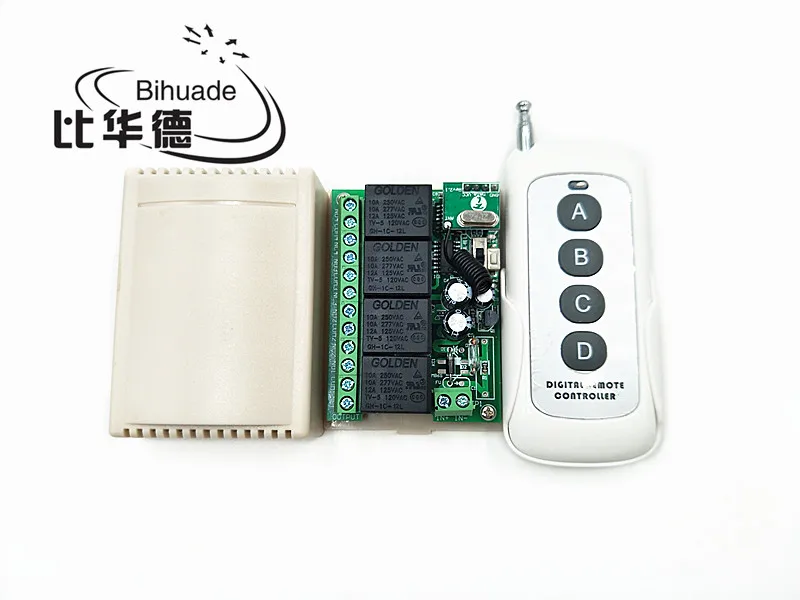

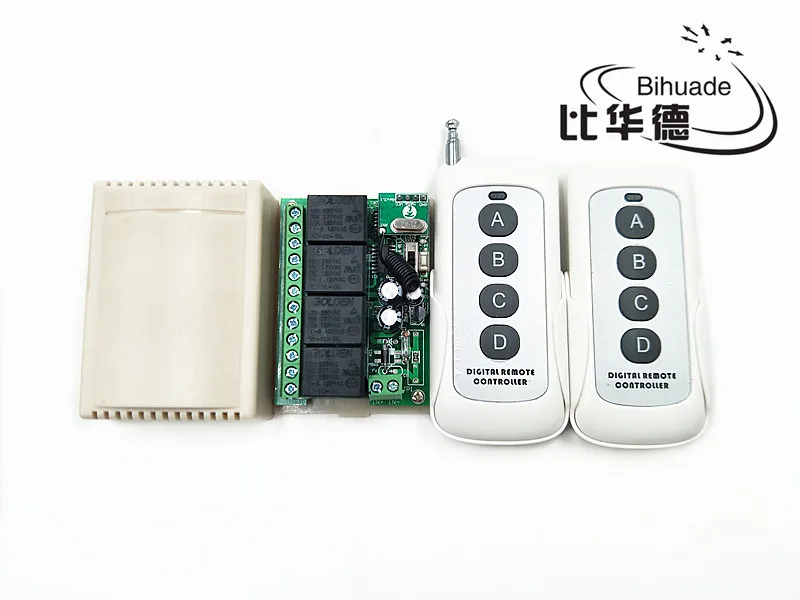

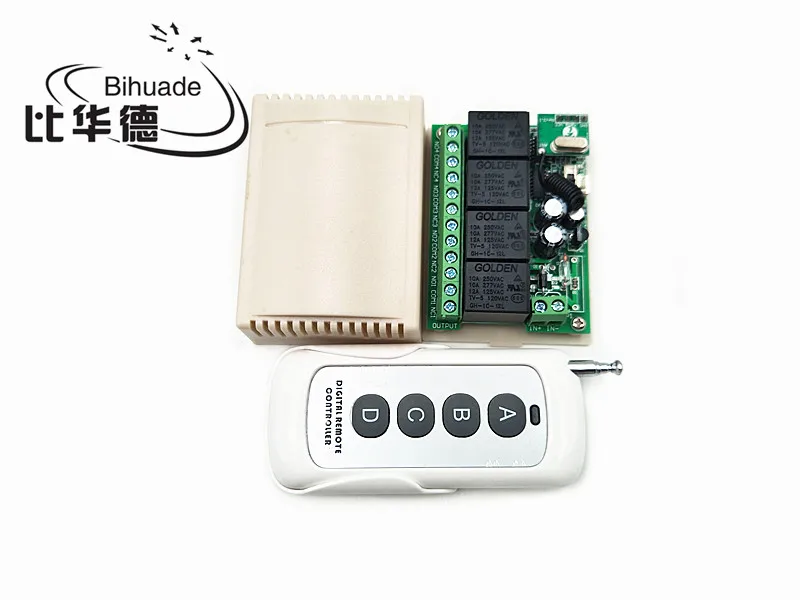

Package Included:   Receiver module * 1pcs ( include Shell )

Remote Control * 2pcs     (Do not contain batteries)

Technical Data:

Input Power:DC-12V   Standby Current:<8.5MA   RF Frequency:

315M

  RF working mode: superheterodyne   Receive sensitivity: > 97 dbm   Transmitting distance: More than 15 meters   Decoding mode: MCU software decoding   Learnable Transmitters: 1-16 transmitters   Support remote type: Learning code 1527   Switching Modes:   Both Momentary & Toggle   Wiring type:fixed terminal   Switch Output : normally open & normally closed.   Dimension of PCB (L,W,H) 35*30*18mm 1 3/8 * 1 3/16 * 11/16"   Switch Output:   NO: normal open   COM: common   NC: normal close

Wire port :

NO: normal open

COM: common

NC: normal close



HOW TO USE:   On this products details page, there is a demonstration video available.   You can also see the video at this URL:   youtu.be/k06q76qthBw   Working Modes explanation:   Momentary Mode:   Push the remote button , the relay activates, release the remote button the relay deactivates.   Toggle Mode:   Push and release the remote button , the relay activates. Push and release the remote button again and the relay deactivates.       Clearing All Stored Transmitters:   **Note**   After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.   Push the learning button on the receiver 8 times , and the codes will be cleared .   Learning the transmitter :(momentary Mode)   Programing a 2 button transmitter as momentary mode transmitter.   STEP 1   Push and release the learning key on the receiver ONCE.   Wait for a moment , the LED will turn off , indicating you entered the learning state.   STEP 2   Push and release the first button on your transmitter, the LED on the receiver board will flash on then off indicating the button was learned.   STEP 3   Press and release the second button, watching the LED go on and off again.   Wait 3 seconds, the LED will turn on again , indicating system is ready for use.   Learning the transmitter : ( Toggle Mode )   Programing a 2 button transmitter as toggle.   STEP 1   Press and release the learning key on the receiver TWICE.   Wait for a moment , the LED will turn off , indicating you entered the learning state.   STEP 2   Press and release the first button on your transmitter, the LED on the receiver board will flash on then turn off. Indicating the button was learned.   STEP 3   Next press and release the second button, watching the LED go on and off again.   Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use   **Notice** two button transmitters can only be used as toggle or momentary. One mode per 2 button transmitter.   ( Please note: You let the control panel to learn the remote control, you must press the "A" and "B" button; Rather than just pressing one of them )   However you can program another transmitter in the other mode.
