10pcs Universal 2 channel Wireless Garage Door 433MHZ DC 12V - 24V Rolling fixed Code Receiver 433 MHz Remote control switch

SECIFICATIONS:

1. Power supply: 12v-24v DC

2. Frequency: 433.92Mhz

3. Codes: can work with any fixed/learning/rolling codes

4. 2 channel

5. Working temperature :-40℃- + 80℃

6.Built in Aerial antenna : Reception range 10-50m

Products advantage:

1) Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!! 2) Can learn and use most Original 433,92Mhz Fixed and Rolling code remote controls !!! ( Such as : , BENINCA, DOORHAN, ATA PTX4, MARANTEC ) 3) 2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously 4) Very low price.

PROGRAMMING:

Momentary working model: 1.Learning transmitter’s codes: Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored. • Repeat the above steps for other transmitters. 2.Erasing transmitter’s codes: Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.

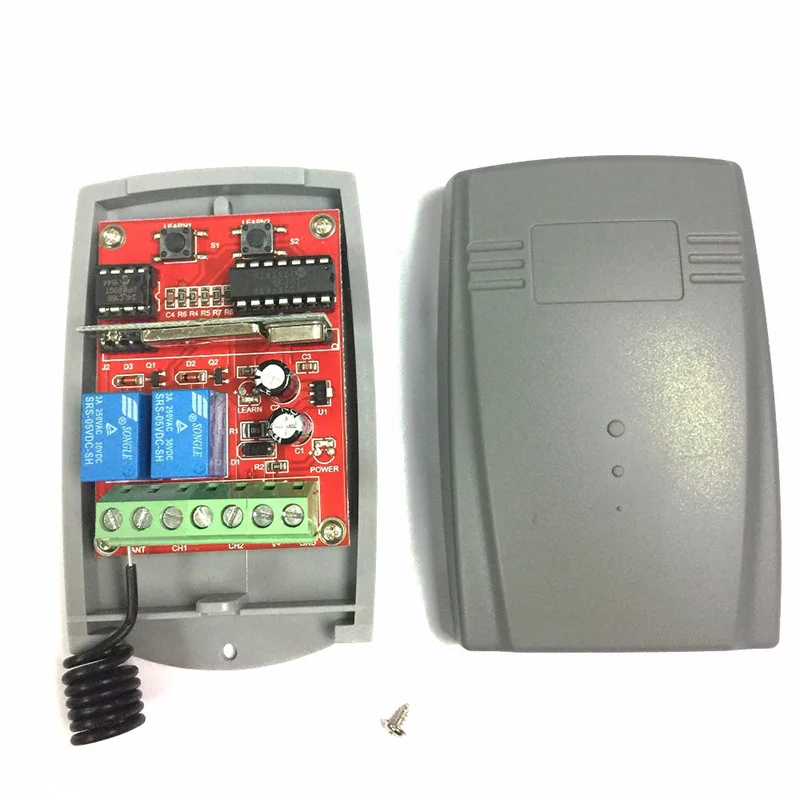

ANT - Receiver Antenna

CH1 - Relay Output 1

CH2 - Relay Output 2

V+ - Voltage +

GND - Ground
