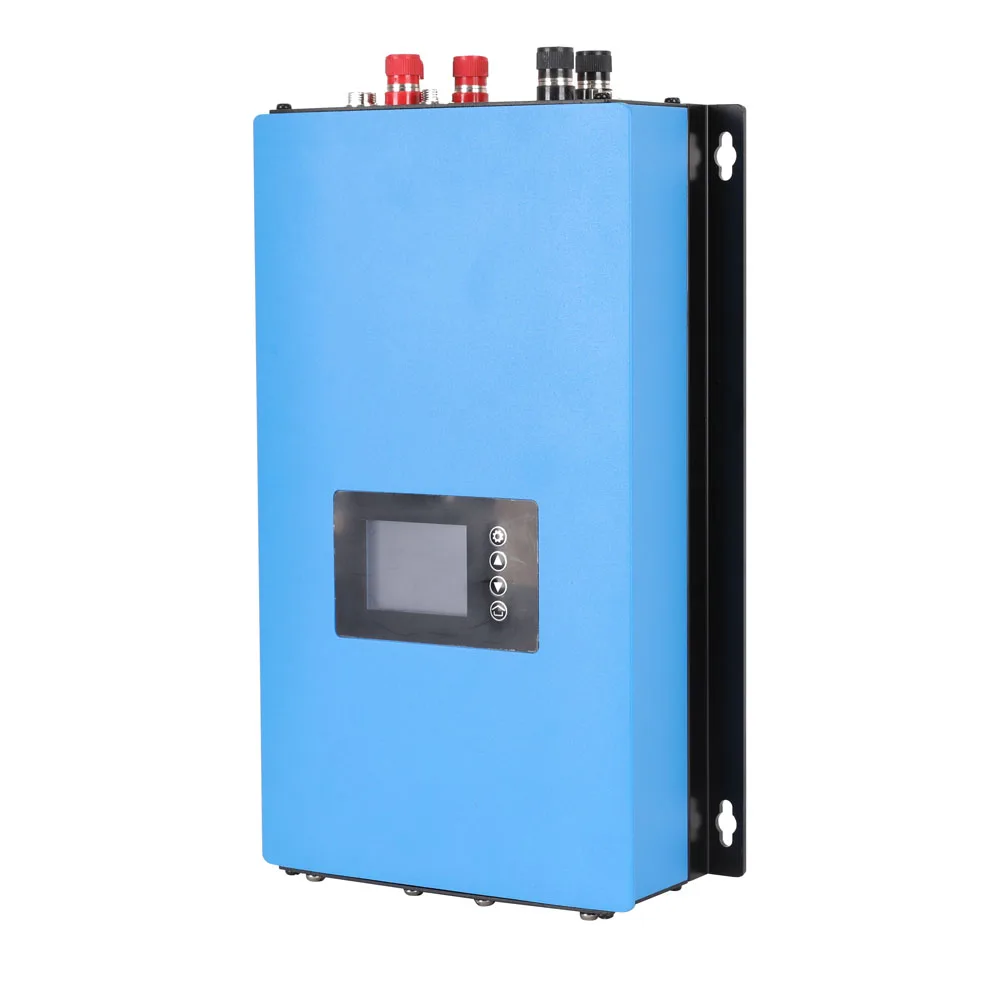

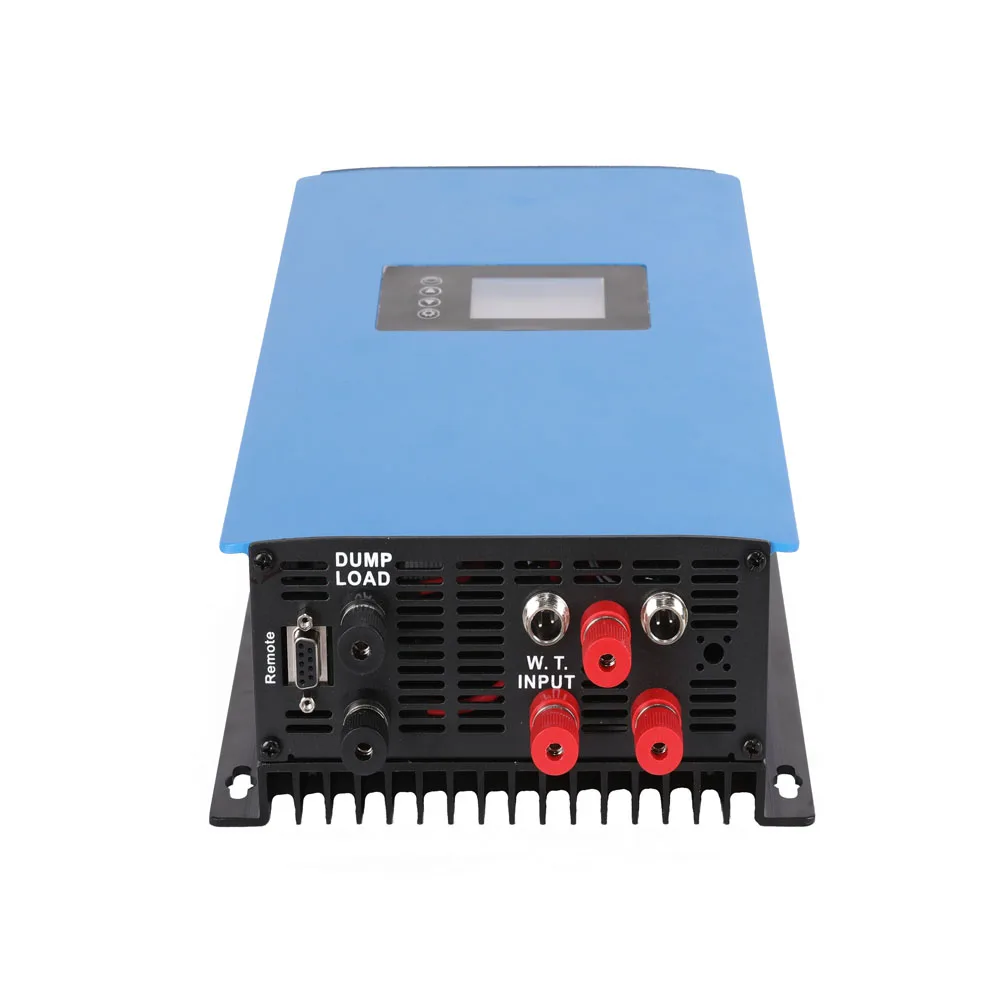

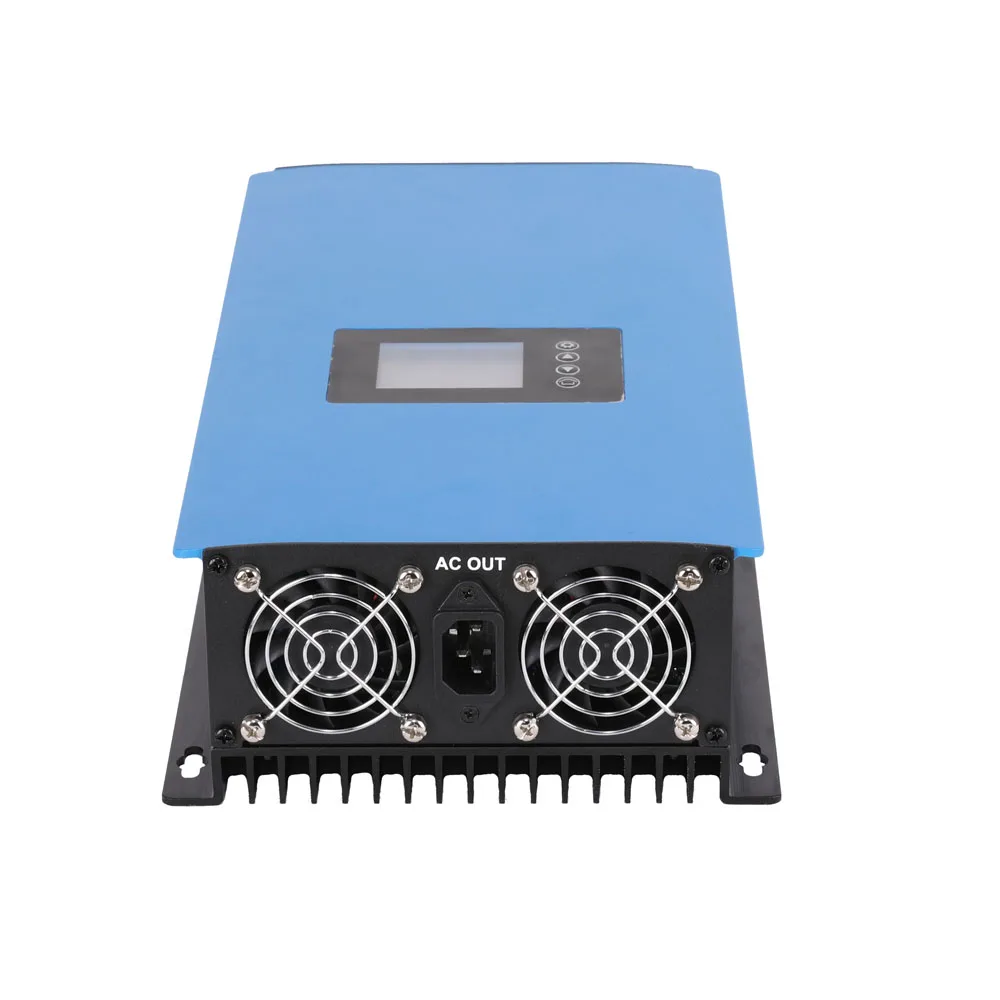

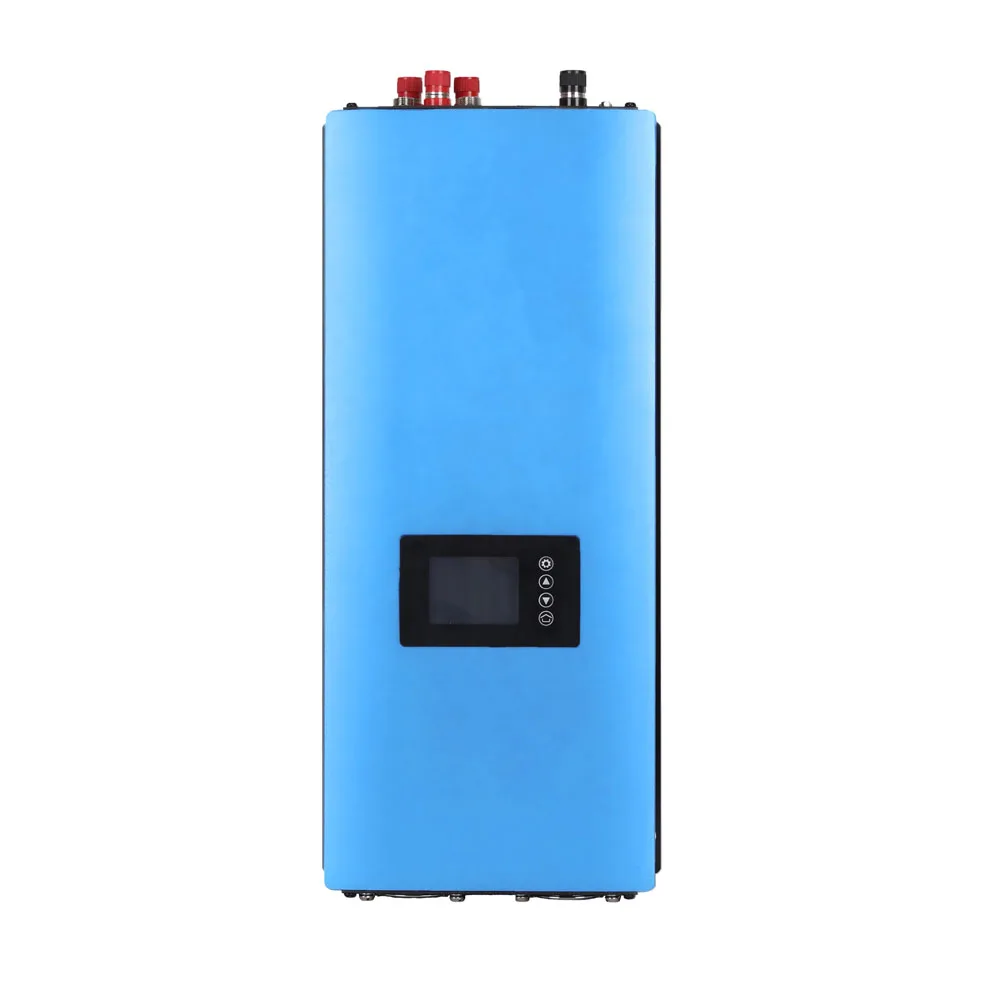

NEW 1000W Wind Power Grid Tie Inverter

Max Efficiency:>92%               MPPT Efficiency:99%

This model grid tie has designed for wind turbines that put out 3 phases AC voltage. It can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can’t keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.

Features

1. Low cost and easy installation

2. Directly connect to three phase wind turbine

3. Much better output waveform compare with similar GTI

4. Improving the efficiency of the entire solar power system

    Overload protection ,Anti-island protection

    Short-circuit protection/Reverse polarity protection

5. AC output voltage and current THD<5%,PF>99%

6. Build in dump load function

7. Limiter enabled,wifi monitoring enabled ($30)

Specification

Input Voltage Range:45-90vdc

Max input DC voltage:90v

Peak power tracking voltage:50-90v

Max output power:2000w

Nominal output Voltage:230v

Nominal Voltage Range: 185-265v

Frequency Range: 47.5-51.5 for 50hz,59.3-60.5 for 60hz

Power Factor:>0.95

Output Waveform:pure sine wave

Max Efficiency:>92%

MPPT Efficiency:99%

Remind

 1.The price you paid for the item excludes any customs tax.We will not shoulder any duties in destination country.

2.Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materils.

3.Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective.In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable.

4.If the item is found non-defective, the item will be sent back to the buyer at buyer’s expense.

Feedback

 Your feedback is very important for us,so,please contact us directly before leaving a negative

feedback if there anything make you feel unhappy.We will try our best to work out a best solution.Thank you for your support.

1.one set of inverter.
