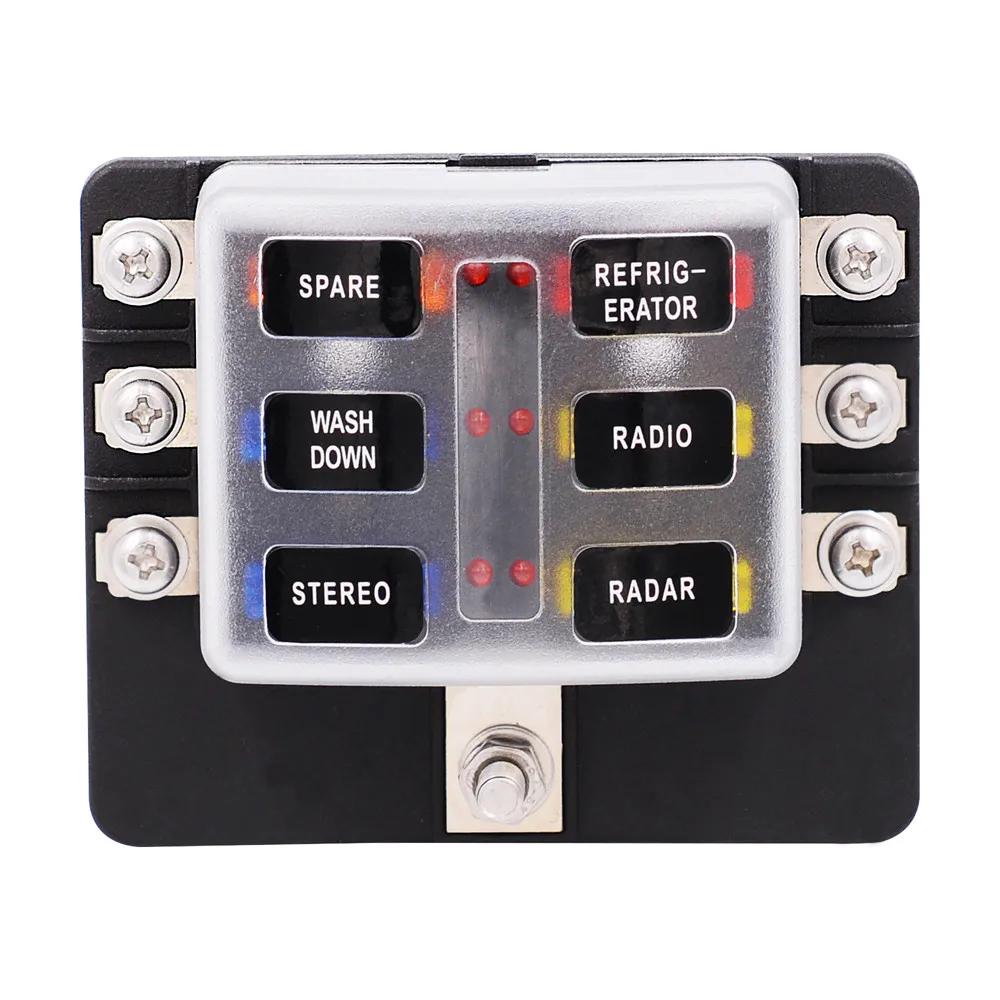

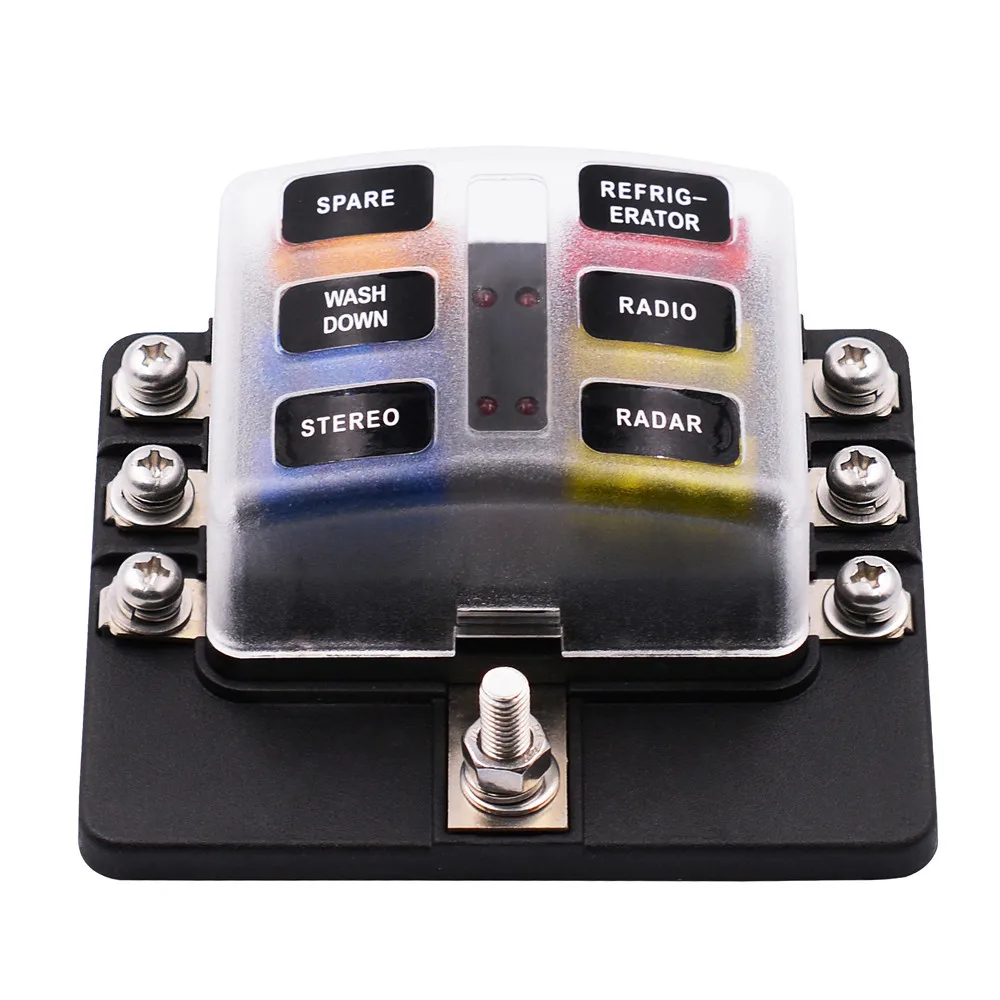

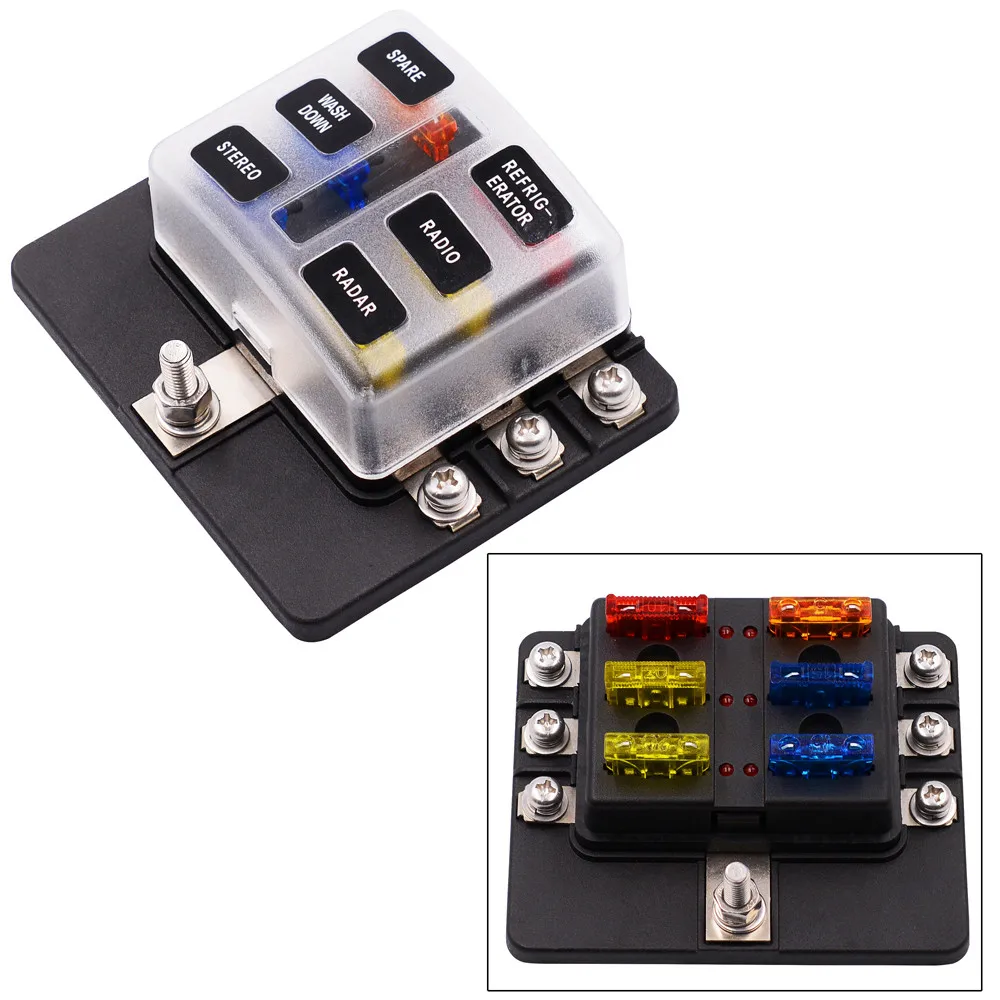

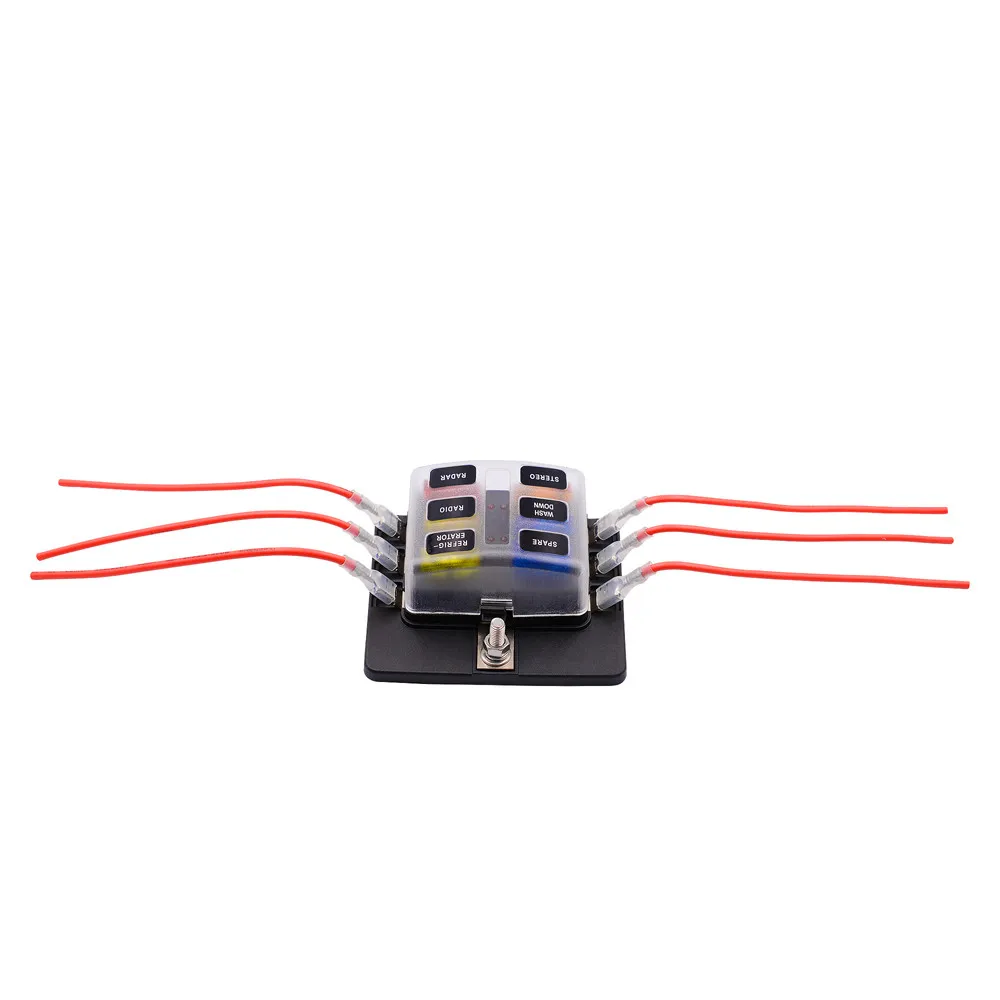

1 In 6 Out Fuse Box LED Indicator Auto Car Holder Relay Socket Nacelle Insurance

Advantages:

• The product is made of PBT flame-retardant high and low temperature environment-friendly material, fully meet the [Fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy, should not be used in the fracture, Deformation, combustion and short-circuit phenomenon condition

• Product 1 into 6 out of the design, you can directly connect a battery positive, a wire connected to the fuse box, and then separated by the fuse box 6 terminals were connected to a different positive electrical appliances, is very simple and convenient

• The product has a red LED indicator design, corresponding to each fuse connected to the electrical appliances, when the fuse is disconnected, the red light will be on, you can immediately know which one is broken, easy and timely treatment
  product gift stickers, according to the sticker superscript of the name, the corresponding stickers to our access to electrical appliances, when the fuse off the red light, we can tell the first time which is the appliance out of the question, save time and energy

• Product delivery double fuse, when applied, the fuse is burned, can be immediately replaced from the spare fuse, and the fuse to send more than one Abe, according to the current electrical selection of Abe's fuse

Features:

• Product Size: 7X8.5X3.5cm

• Product Material: PBT body, PC waterproof dust cover, nickel-plated copper connection terminals, PPX40 stickers

• Input Rated Voltage: 32V

• Input Rated Current: 100A

• Input wire specifications: # 4-6 AWG

• Output maximum current: 30A per circuit

• Output Wire Specifications: # 12-16 AWG

• Indicator Color: red

• Indicator Function: When the red LED is on, it means the fuse has been disconnected, and the fuse needs to be changed in time to continue running

• Product installation range: Can be installed on the cars, villas, RVs, buses, boats, etc. to use above

• Product range: Can be directly connected to the car / boat on the line with any electrical appliances .such as: headlights, car headlights, depending on the lights, fog lights, warning lights, car refrigerator, car charger, car fans, car TV etc.

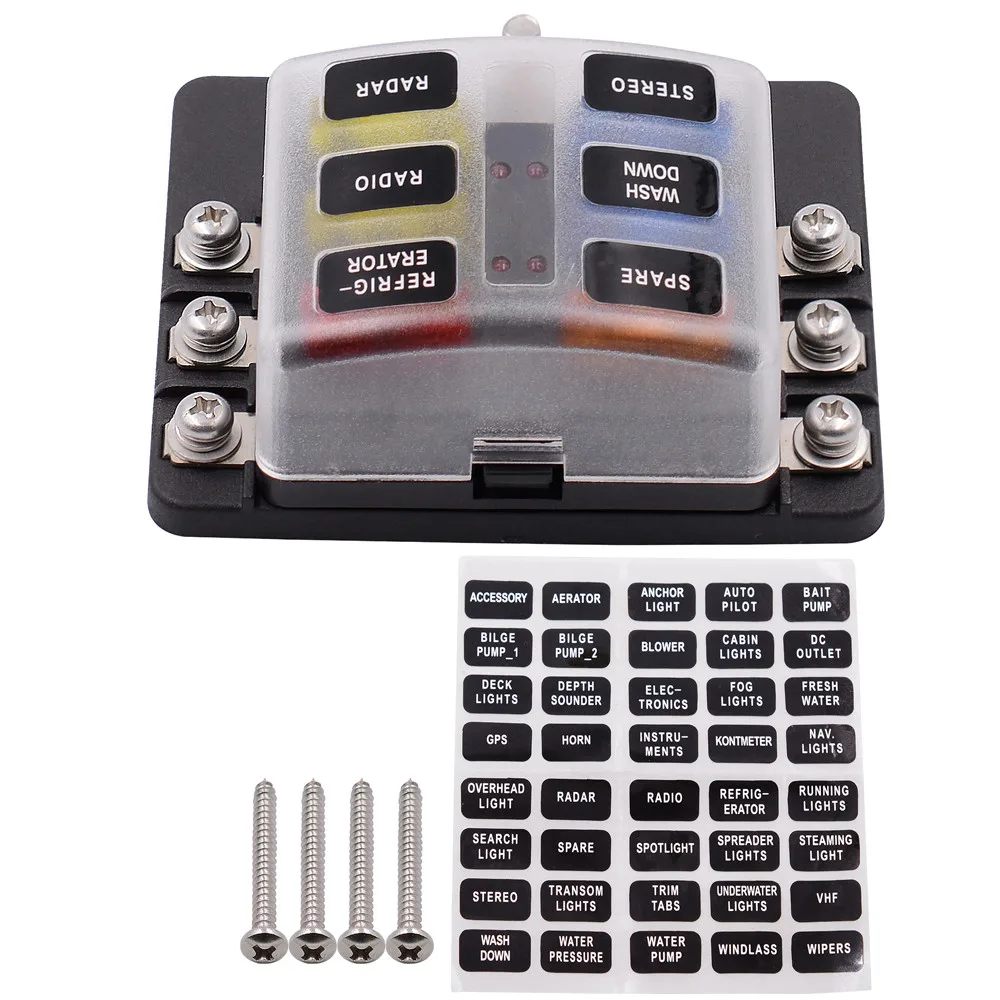

• Product Accessories: Sticker X1; Self-tapping screw X4; 20A fuse X4 ; 15A fuse X4 ; 10A fuse X2 ; 5A fuse X2

Fuse effect:

• When the circuit fails or abnormal, with the current rising, and the increased current may damage some of the important components of the circuit or expensive devices, may also burn the circuit or even cause a fire. Fuses protect the electronic device from overcurrent and can also prevent serious damage to the electronic device from internal faults.

• Therefore, each fuse has a rating on it, and the fuse blows when the current exceeds the rated rating.

• If the circuit is correctly placed in the fuse, then the fuse will be in the current abnormal increase to a certain height and a certain temperature, the fuse itself cut off the current, thus protecting the safe operation of the circuit.

Package included:

• 1 PCS Fuse box

• 1 PC Sticker

• 4 PCS Self-tapping screw

• 4 PCS 20A fuse

• 4 PCS 15A fuse

• 2 PCS 10A fuse

• 2 PCS 5A fuse
