Nema 23 2-фазный шаговый сервомоторный комплект с драйвером HSS57 + 2N.m 57 полностью закрытый обратной связи высокоскоростной.

Nema 23 2-фазный шаговый сервомоторный комплект с драйвером HSS57 + 2N.m 57 полностью закрытый обратной связи высокоскоростной.

Brand NameNoneTypeHYBRIDPhase2CertificationceCertificationROHSStep Angle(degrees)1.8Holding Torque2N.mCurrent / Phase5AMeasurement unitpiece/piecesEach pack19 743,82 ₽-5%9 743,82 ₽-5%9 256,39 ₽9 256,39 ₽Add to CartBuy now9 256,39 ₽loader

Description

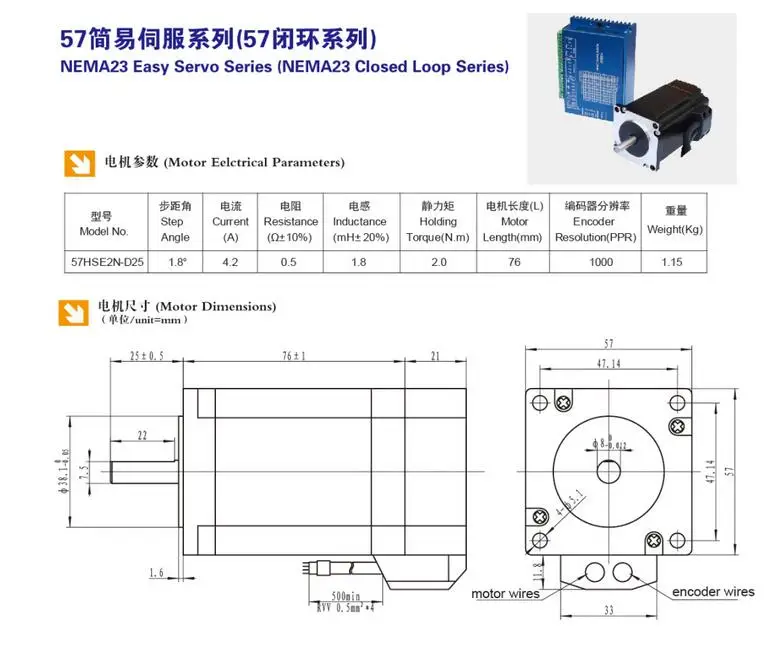

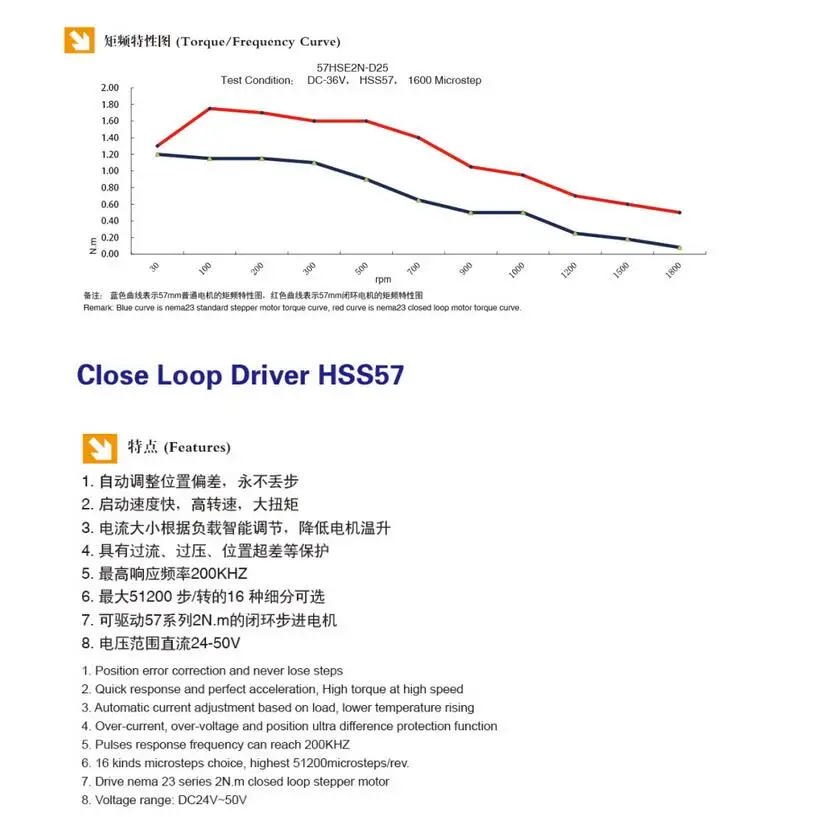

HSS57 driver +57HSE2N-D25 closed-loop stepping series main feature: 1: low heat / high efficiency (at rest, the current is almost zero, no heat) 2: Smooth and accurate (based on the feedback encoder's space vector current control algorithm and vector smoothing filter technology, it is very good for the low frequency resonance that plagues the traditional stepper motor) 3: High-speed response (advanced servo control technology provides high torque output, making the system have extremely high dynamic response, stepping servo speed can reach 600-2000RPM) 4: Applicable industries: dispensers, woodworking machines, welding machines, screw machines, zippers, winding machines, placement machines, packaging machines, engraving machines, laser machines, LEDs, electronic equipment, etc. Basic introduction of the motor: Wide 57*57, motor housing 96mm, torque 2N.m, rated current 4A, shaft 8MM. Maximum speed 2000rpm, rated speed 1000rpm Electrical index Power supply: VDC24V-50V Output current peak value 5.0A (current varies with load) Logic input current 4~20mA Pulse frequency 0~200KHz Adapter motor 57HSE2N Encoder line number 1000 Insulation resistance >=500MΩ
