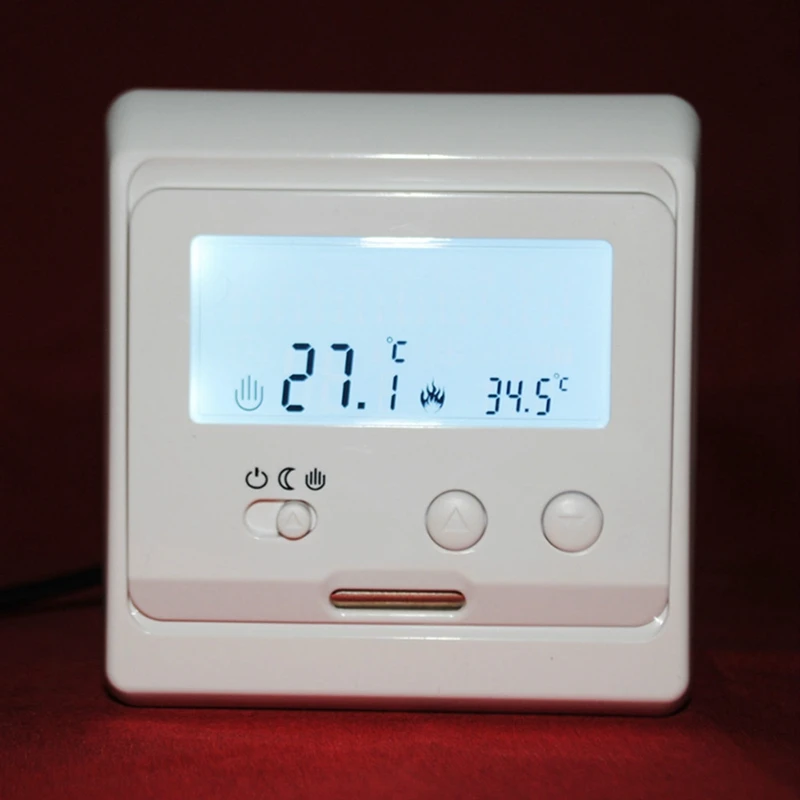

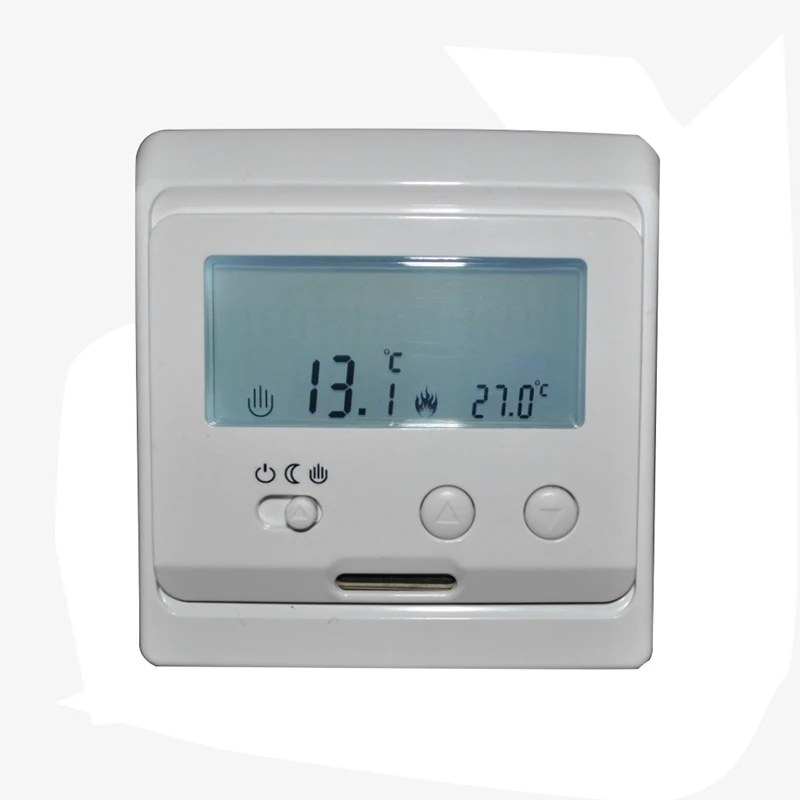

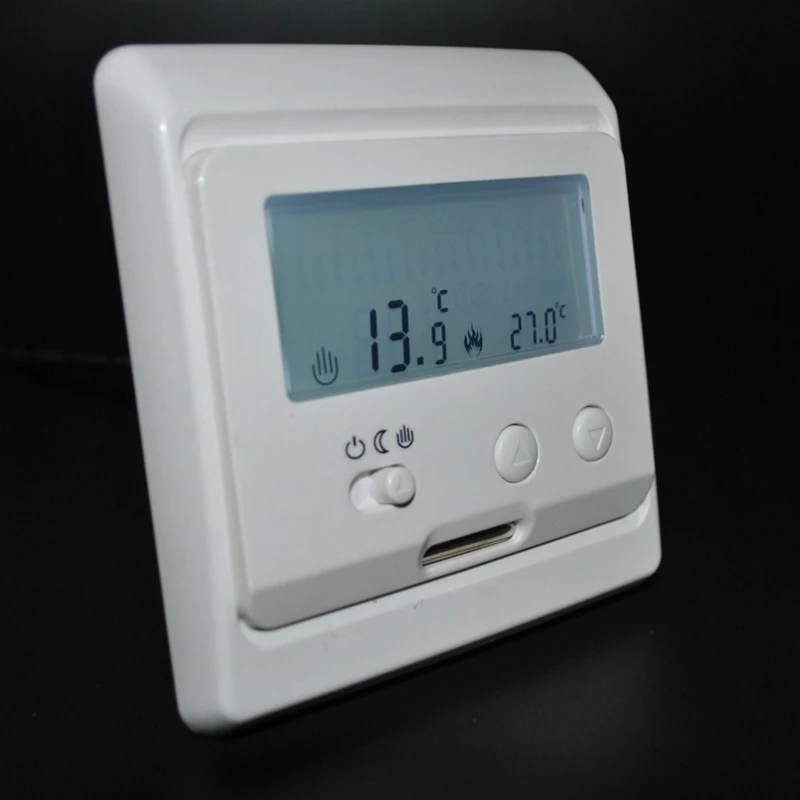

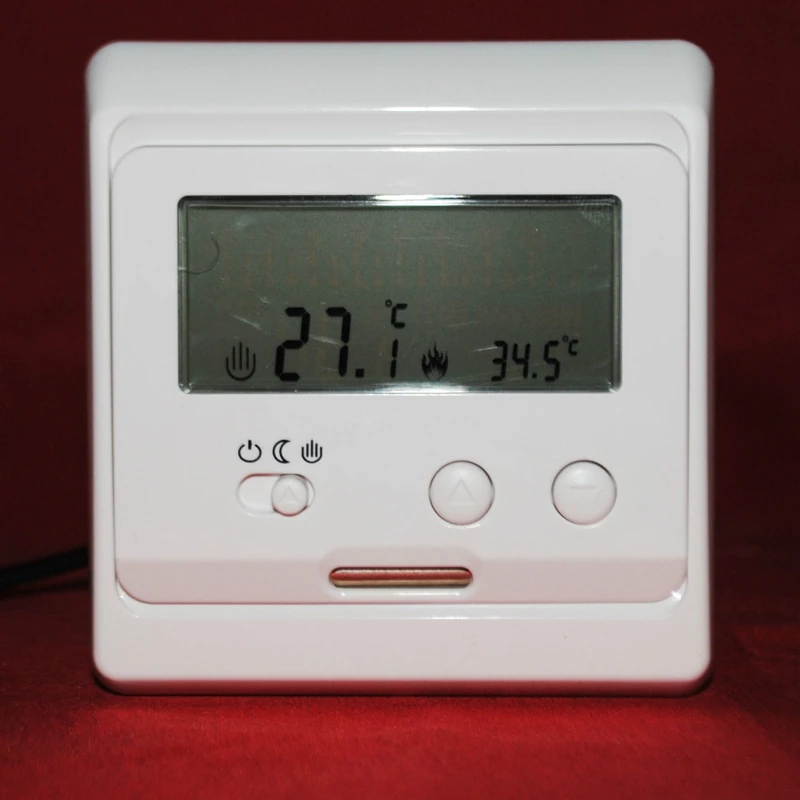

large LCD digital thermostat, 16A thermostat for hot water radiant heating systems and electric heating cable system.
1.Electronic on/off control up to water heating 3A & electric heating 16A
Two work mode: energy saving or manual operation
Material: ABS
4.Display the set temperature & room temperature at the same time
5.Display temperature calibrates
6.High temperature protection function
7.Anti-frost protection
8.Temperature limitation adjustable
Voltage: 110V/220VAC±10%VAC, 50/60Hz
Room setting Range: 5°c~35°c (can adjust to5°c~95°c)
External limitation: 5°c~90°c (factory setting65°c)
Mounting: mounts directly onto wall or wall-box
switch differential: 0.5°c~10°c adjustable (factory setting ±1°c)
Temperature range: 0°c -40°c
Storage temp.: 5°c -50°c
Sensor type: NTC
Color: white
Relative humidity: Less than 85% (23°c)
Dimensions: 86mm X 86mm X 13mm (H/W/D)
Scope of application
For residential, office, light industrial buildings, control gas boiler, heating pipes, actuated valve, electric heating.
Installation guide
Installs the size: standard 86 junction box
Turns on the hook
Takes down a row of line
Connecting the wires
Fixing the thermostat with two screws
Inserts a row of line
Catches the shell, the installment finished
Package Contents:
1* floor heating thermostat
2* screws
1* probe line
1* manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
