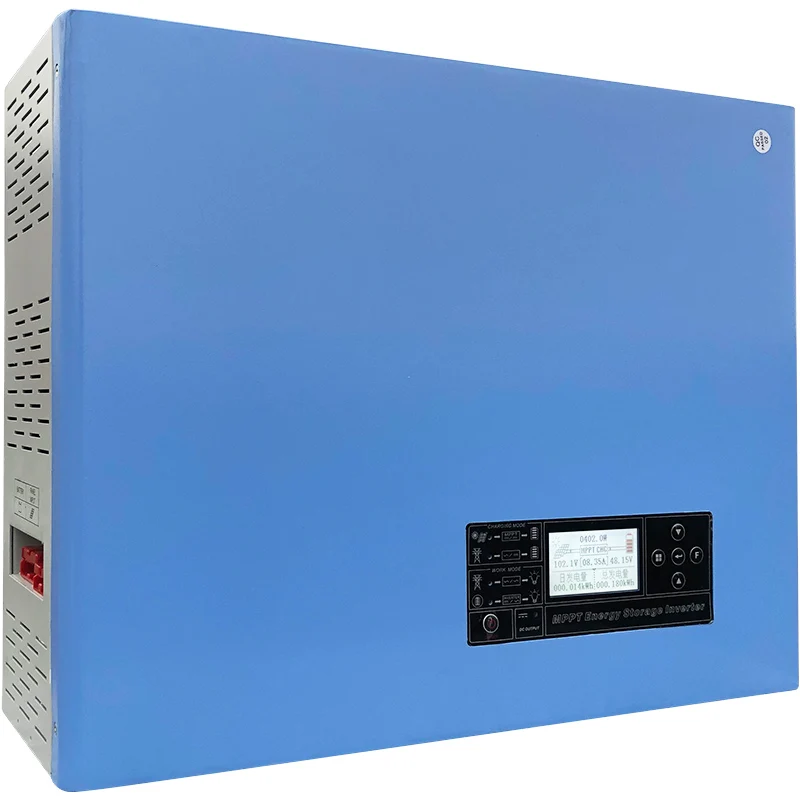

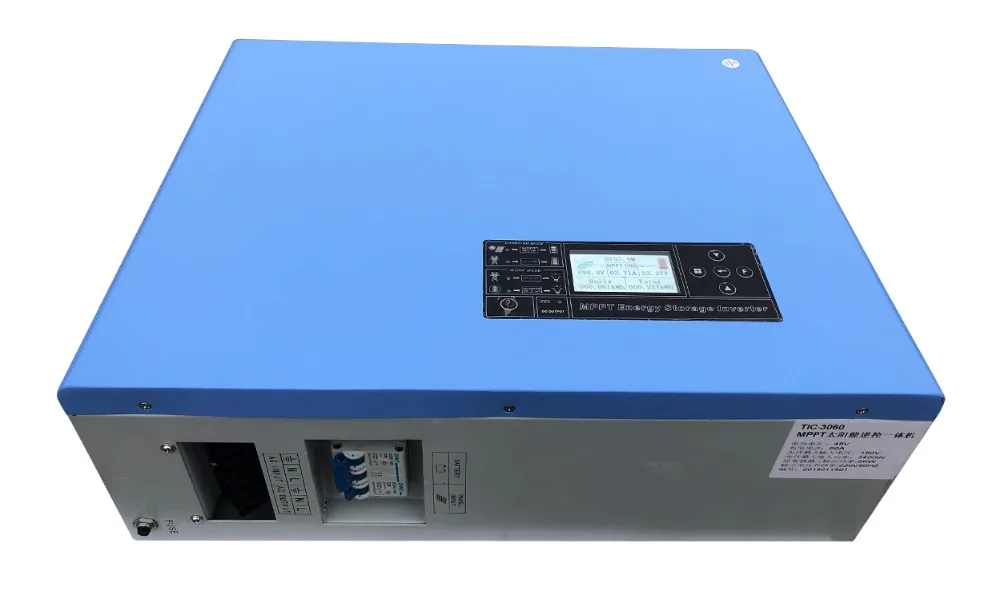

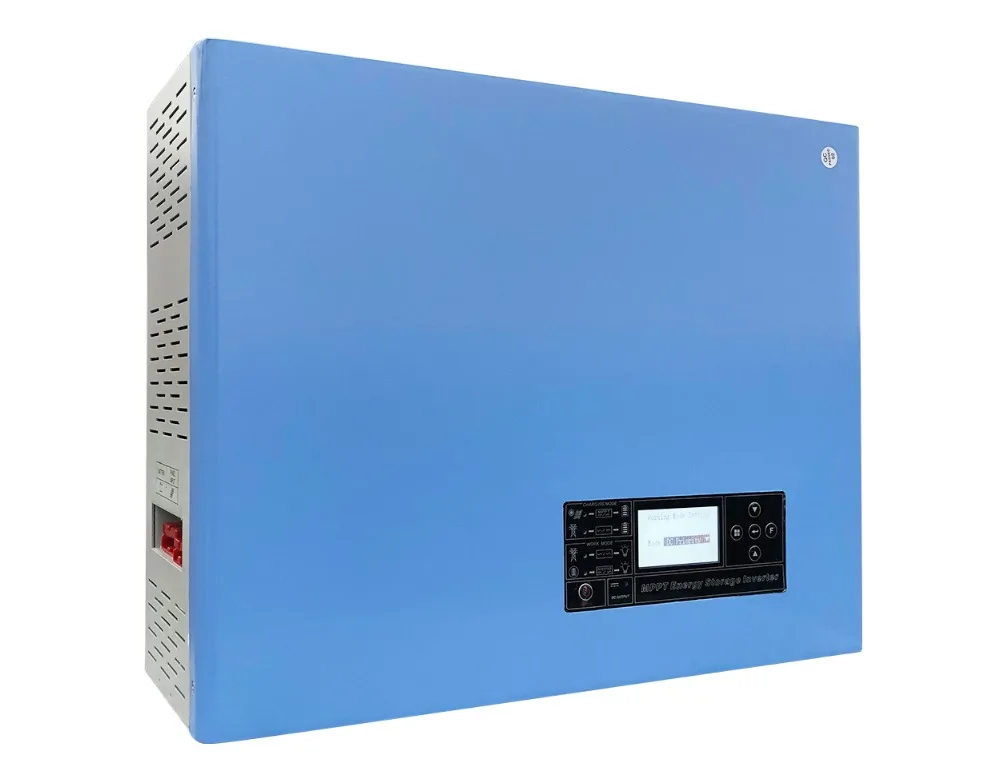

Off-grid soalr Hybrid power frequency pure sine wave inverter DC 24V 48V to AC 220V build in MPPT charge controller 2000W30A60A |

Off-grid soalr Hybrid power frequency pure sine wave inverter DC 24V 48V to AC 220V build in MPPT charge controller 2000W30A60A |

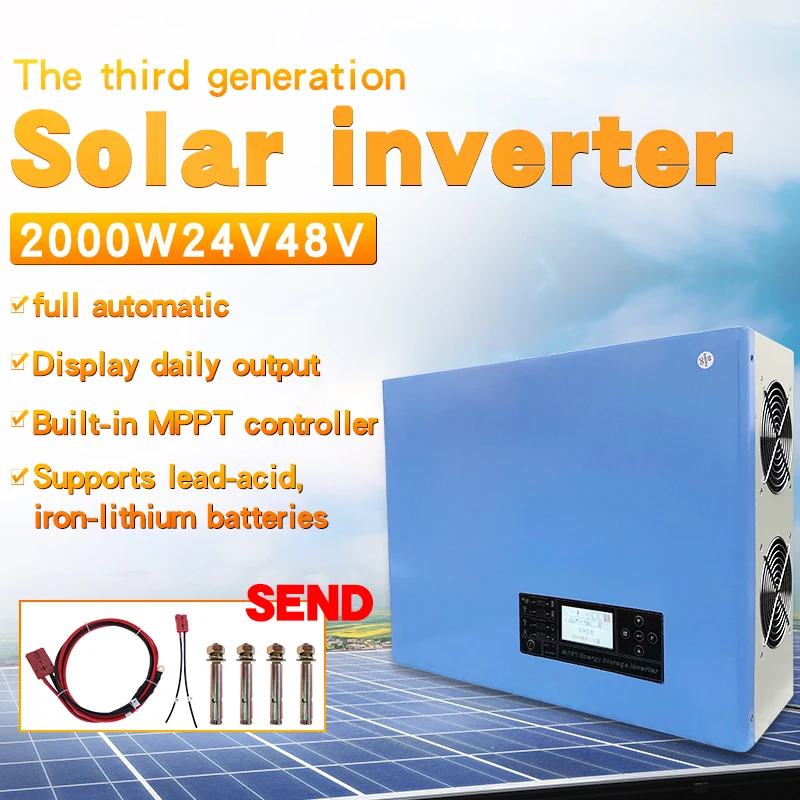

New upgraded third generation MPPT controller.

We continue to develop and upgrade, just to make more suitable products for you!

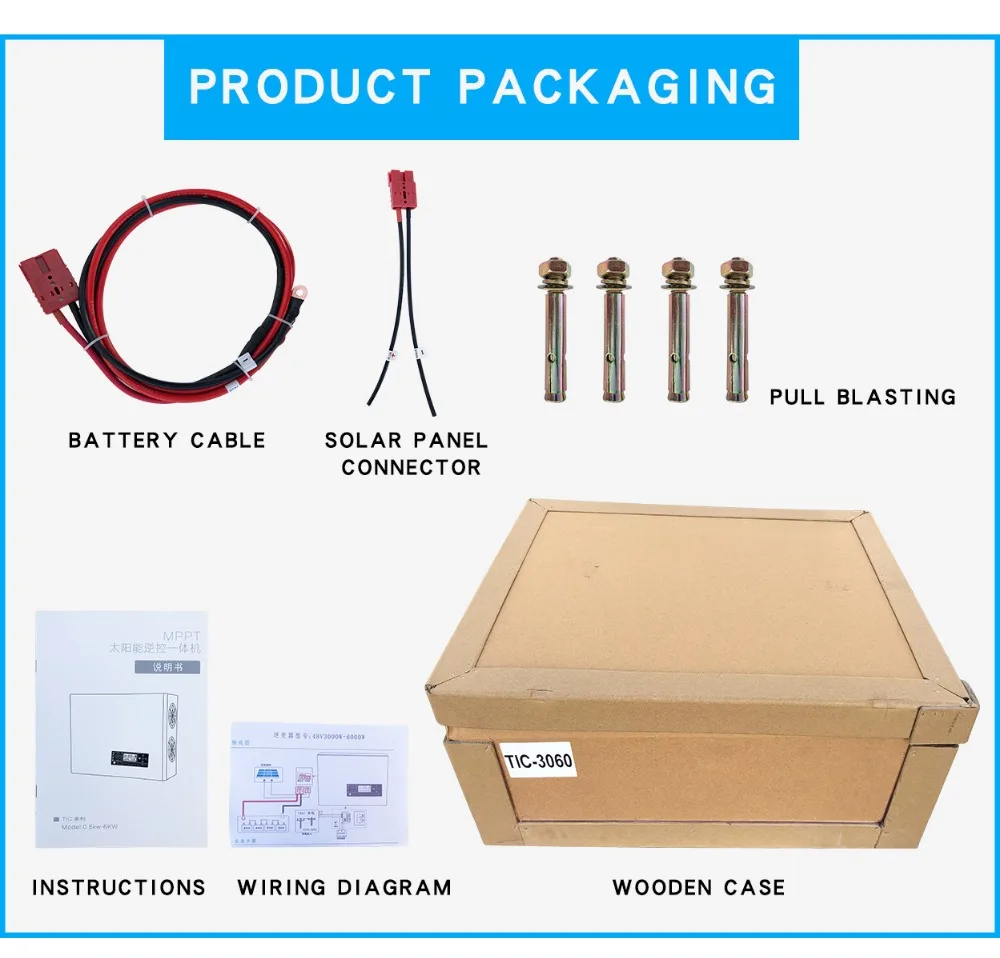

Packing List:

Inverter *1

Battery cable *1

Solar panel connector *1

Pull blasting *4

Instructions *1

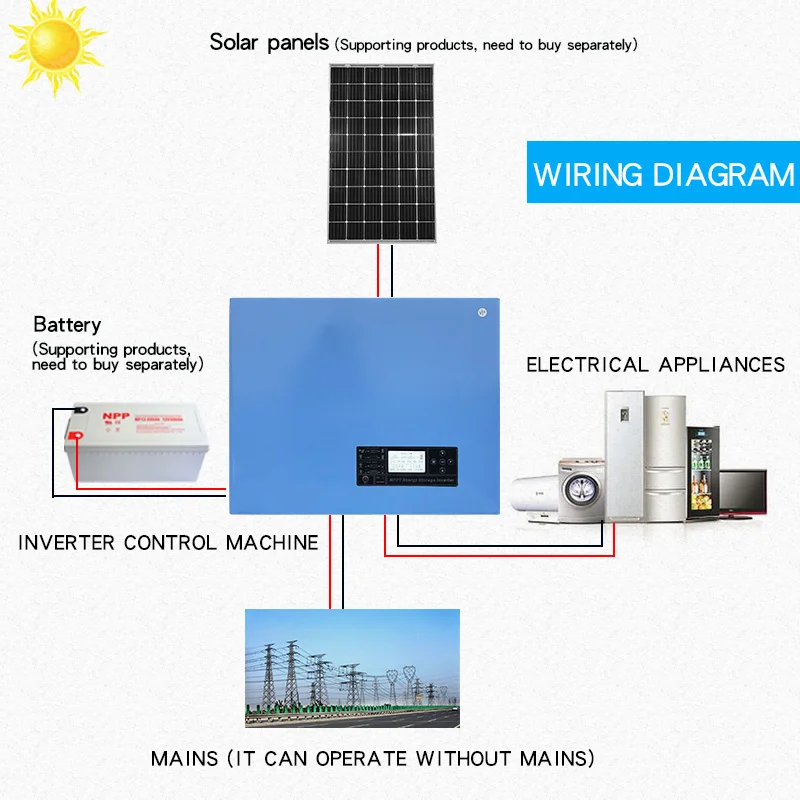

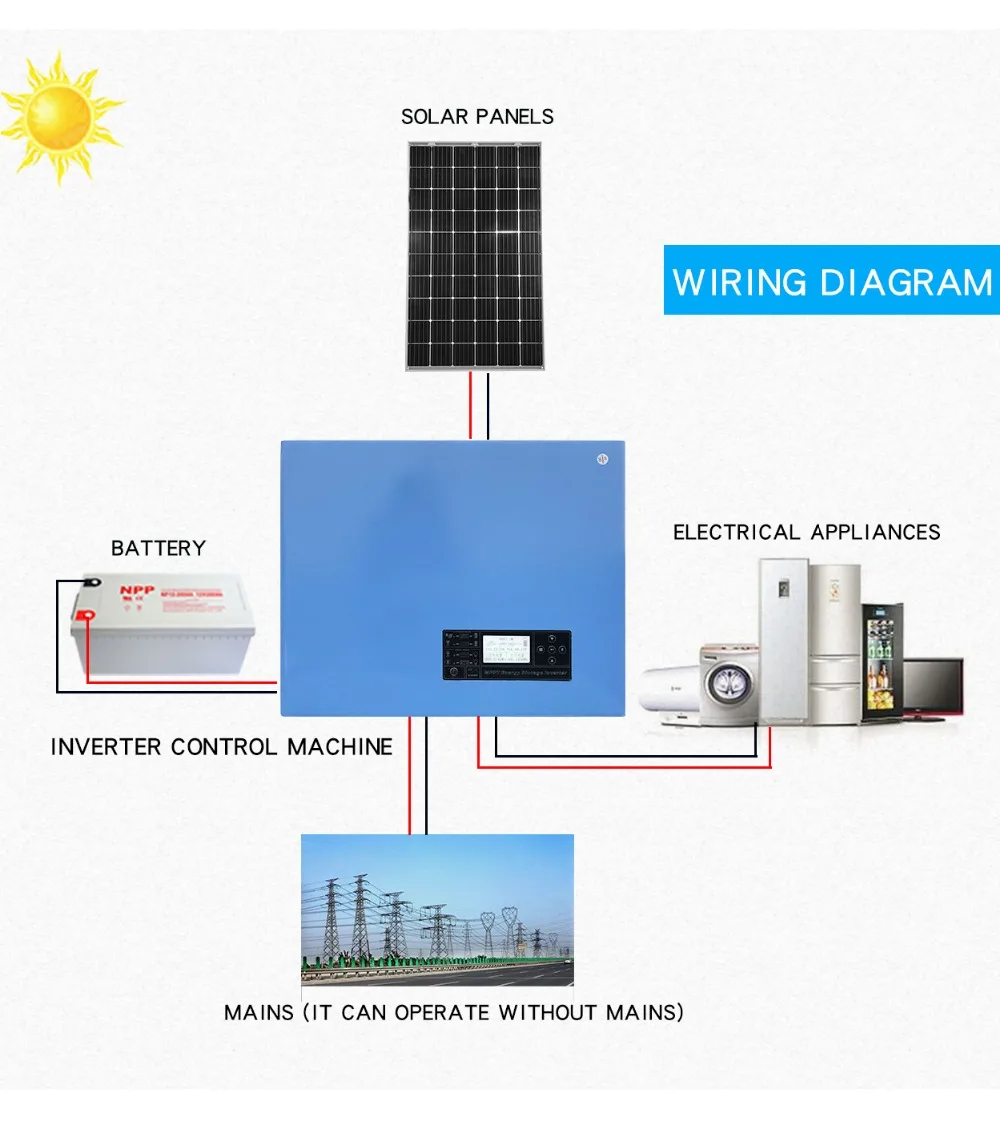

Wiring diagram *1

Main Features：

• Support various types of batteries,Factory default lead-acid battery, can choose gel Battery, liquid battery. The charging voltage of lithium battery, ternary lithium battery and lithium iron phosphate battery can be adjusted according to the actual situation.

• pure sine wave,can be used for various electrical equipment, will not damage electrical--The default working frequency is 50HZ, and 60HZ can be customized

• Built-in MPPT controller, MPPT Peak power tracking technology Higher charging efficiency--MPPT peak power tracking technology: it can track the peak power of solar panel in real time and extract the peak power to charge the battery. However, ordinary PWM controller cannot track the peak power in real time.

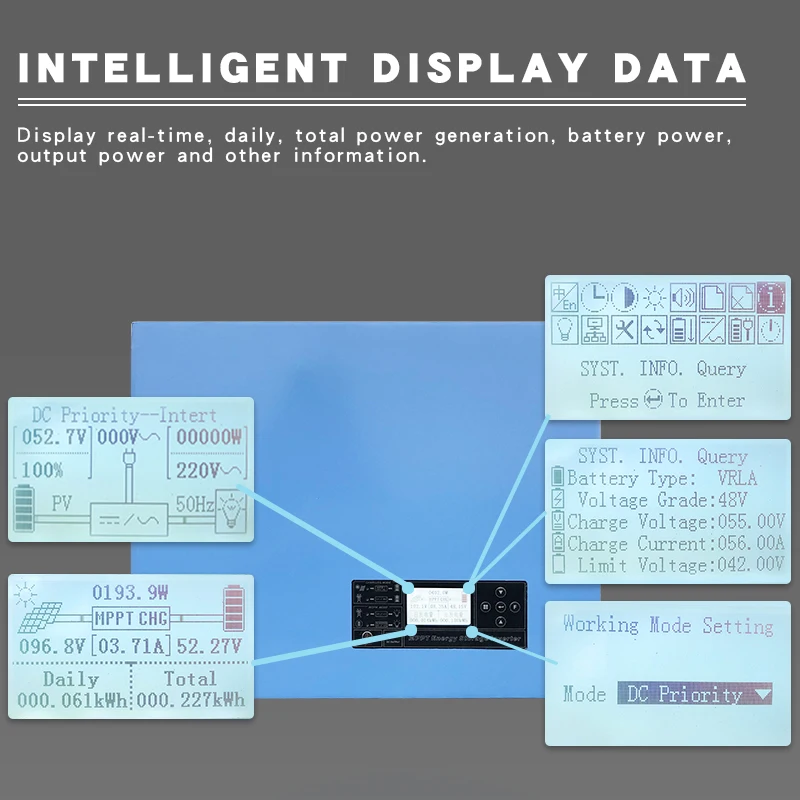

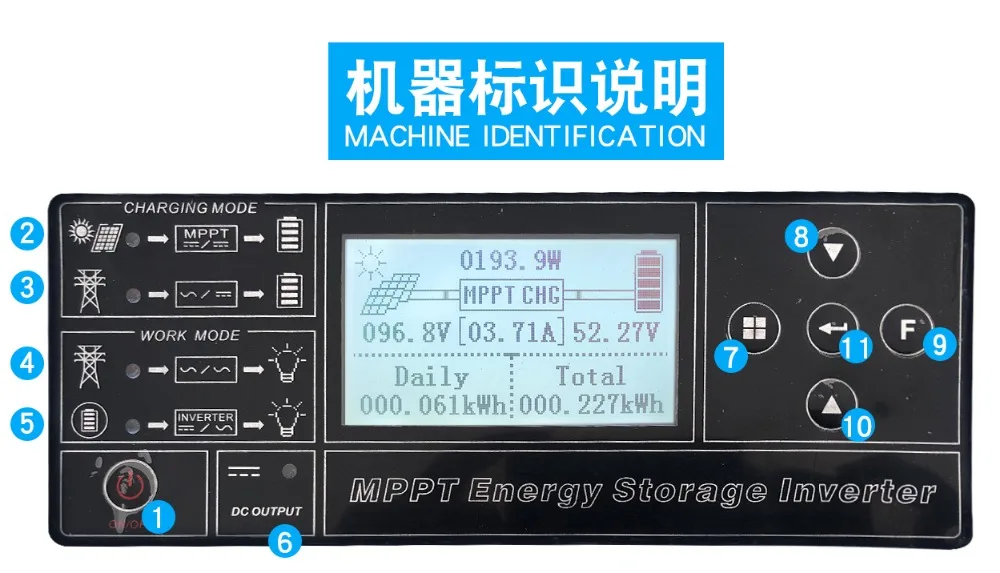

• Display real-time, daily, total power generation. battery power, output power and other information.
• Automatic without personnel guard,24 hours uninterrupted intelligent automatic operation--No mains connection, will not switch to mains, only use the battery power.
• Mains charging Settings--It has the function of mains power charging, and can set the voltage and current of mains power charging(max charging current 50A).

• If no mains charging is required, this function can be turned off (adjust to the photovoltaic charging priority mode).

• Switching voltage can be adjusted--You can set the switching voltage between the battery and the mains.

• Intelligent multiple protection--High temperature protection,undervoltage protection,overvoltage protection,overcurrent protection,overcharge protection,overload protection.

•

Four modes are available:

Battery first mode--battery first mode

1. The electricity from the solar panel is fed to the load first, and the excess electricity is stored in the battery.

2.When the energy from the solar energy cannot meet the user's load, the energy stored in the battery will be replenished to the load.

3.When the battery is out of power, it will automatically switch to the mains power supply, and the loaded appliances will not be shut down or affected; When the battery charge to a certain amount of power (user-defined), automatically restore to the battery power.

Mains priority mode--In the mode of mains priority, the power supply of the load is provided by the mains, which is output to the load through the system voltage stabilizer and isolation components to ensure the stability of the output power supply.

1.The mains power input is fed to the user's load, and the electricity generated by the solar panel only charges the battery.

2.When (AC) mains power is cut off or abnormal, the system switches to the battery to power the load.

Photovoltaic charging priority mode--No matter whether the system is in battery priority mode or mains power priority mode, only the solar panel is used to charge the battery, and the mains power charging function is turned off.

Pv + mains charging mode--Give priority to using solar panels to charge batteries. When the battery power is seriously insufficient, use the municipal power to charge the battery, so as to avoid battery power loss and damage. In battery first mode, the battery is fully charged. In mains first mode, the battery is partially charged.

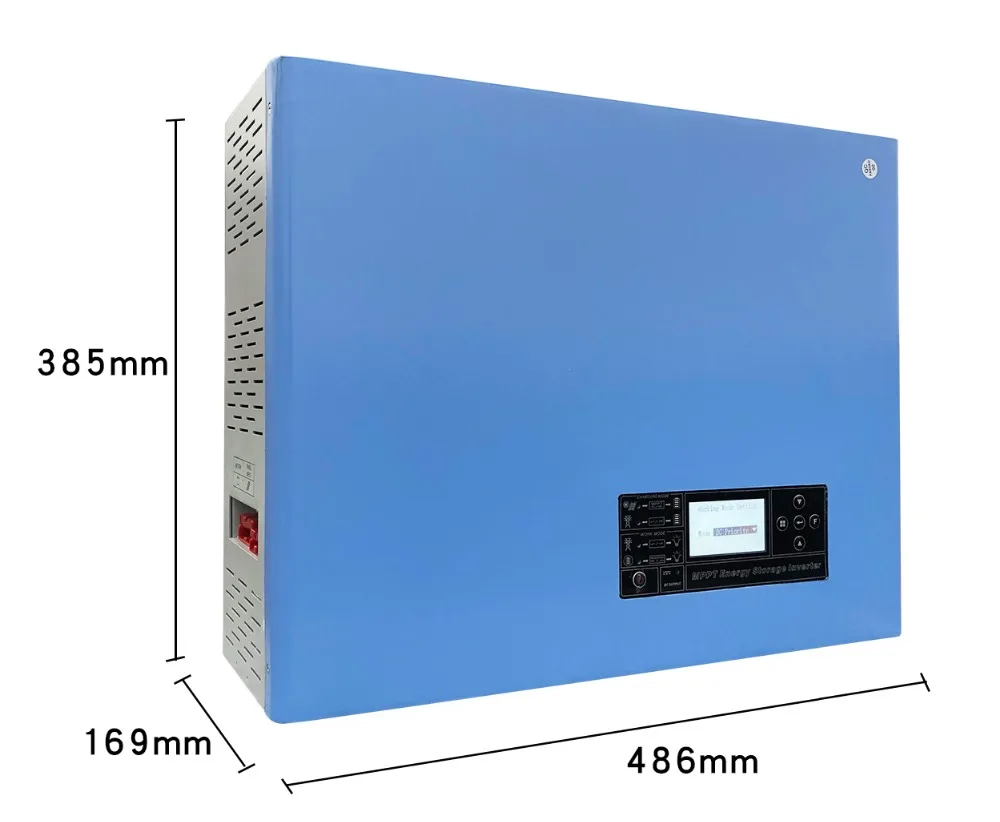

PRODUCT PARAMETERS   Power 2000W Battery voltage 24V/48V 24V/48V Solar panel input Current 30A 60A Size 486x385x169mm Packing size 590x495x270mm Net weight 17.5kg 19.1kg Gross weight 20.8kg 22.4kg Solar panel input Voltage range 24V(DC34V~DC150V);48V(DC65V~150V) Solar panel input Power 24V:840W 48V:1650W 24V:1700W 48V:3400W Float charging Voltage 24V(27.5V);48V(55V); Average charge Voltage 24V(28.4V);48V(56.8V); Ac charging current Atandard:0-30A Ac output voltage 110V/220V/230V/240V Ac output frequency 50Hz/60Hz Transfer efficiency 85.00% Overload capacity 105-120% 30S;120-150% 10S; Greater than150% 5S； Output waveform Pure sine wave Output power Factor Greater than or equal to 0.8 (Greater than 30% Load) Waveform Distortion Less than or equal to 3% Transfer time Less than or equal to 4ms Protection function Reverse connection, overload, low voltage, Surge, short circuit, over charge, over discharge, over temperature, alarm, etc Cooling way Fan cooled Noise Less than 60sBA Working temperature -10~50 Degree centigrade Environmental Humidity 10%~90% No condensation       MPPT CONTROLLER     Model Wattage of solar panels Solar panel input voltage 2000W(24V30A) 0-840W 34V-150V 2000W(48V30A) 0-1650W 65V-150V 2000W(24V60A) 0-1700W 34V-150V 2000W(48V60A) 0-3400W 65V-150V     1.Mains switch 2.Solar charging mode - the indicator light is on 3.Mains charging mode - the indicator light is on 4.Mains power to load mode - the indicator light is on 5.Battery powered load mode - the indicator light is on 6.Dc output indicator light 7.Function menu button 8.Down button 9.Shortcuts 10.Upturn button 11.Identify key   1.Battery port 2.Solar input port 3.Cooling fan 4.Reset protection switch 5.Public power output 6.Mains input 7.Battery switch 8.Solar charging switch
