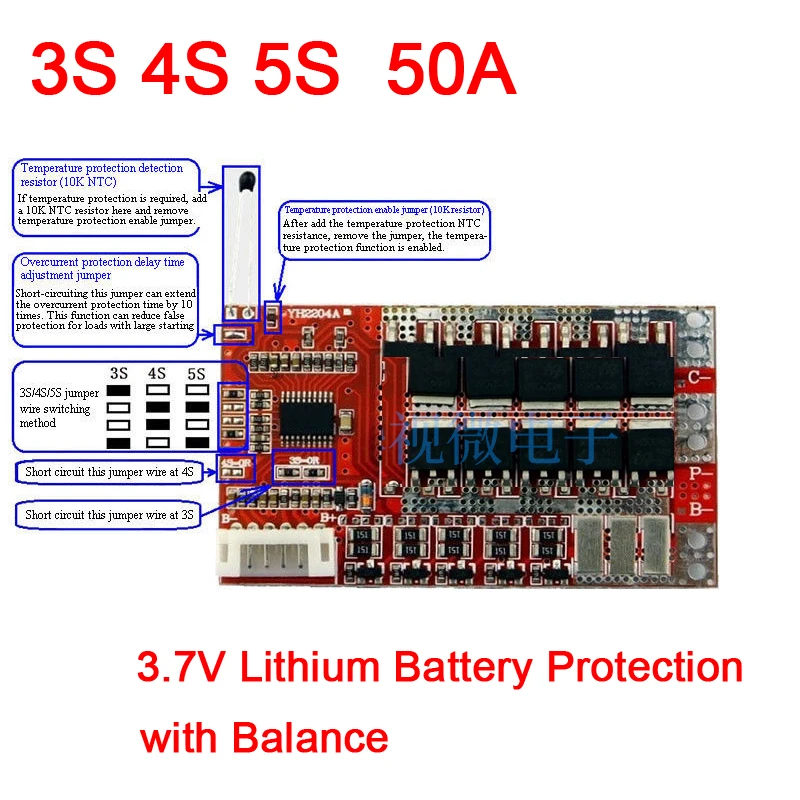

 3S/4S/5S 3.7V 50A Polymer Lithium Battery Protection Board Balance Charging Balance (Default 3S)


Default 3S  if you use 4S OR 5S  . YOU NEED  Modify

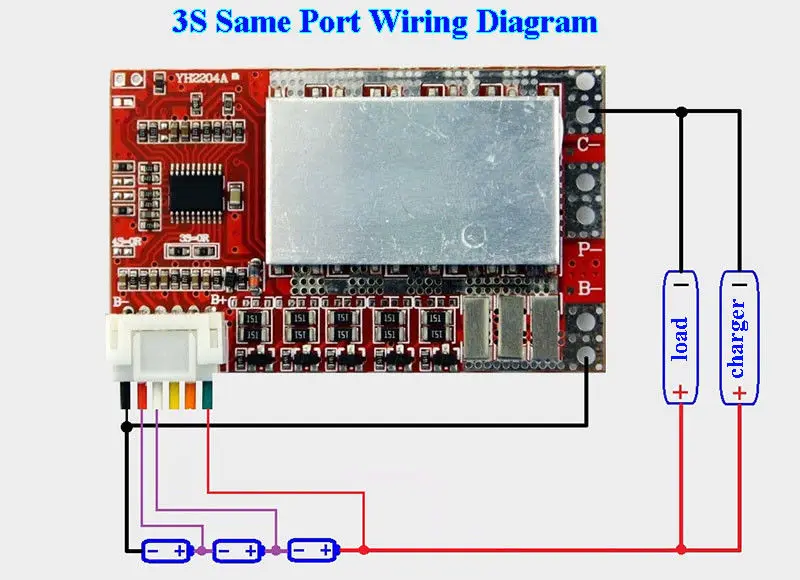

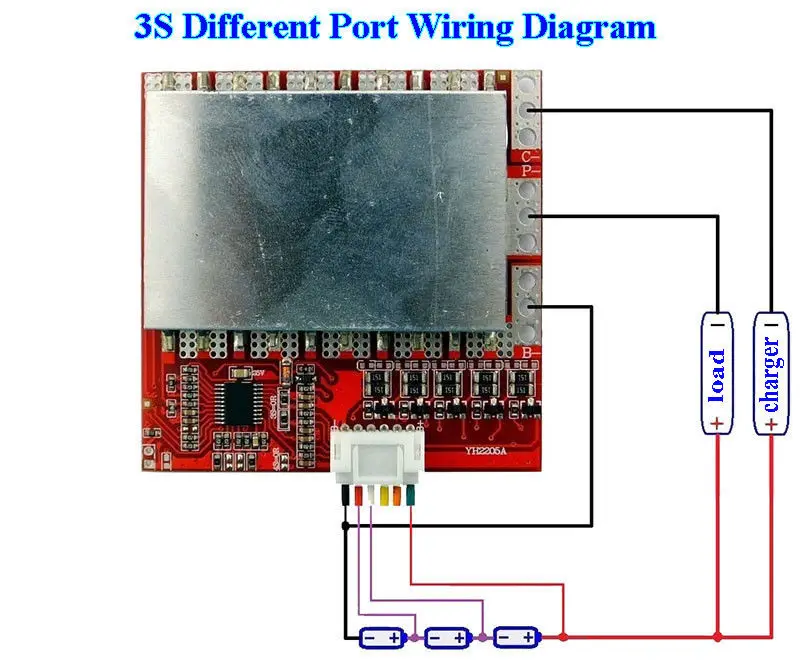

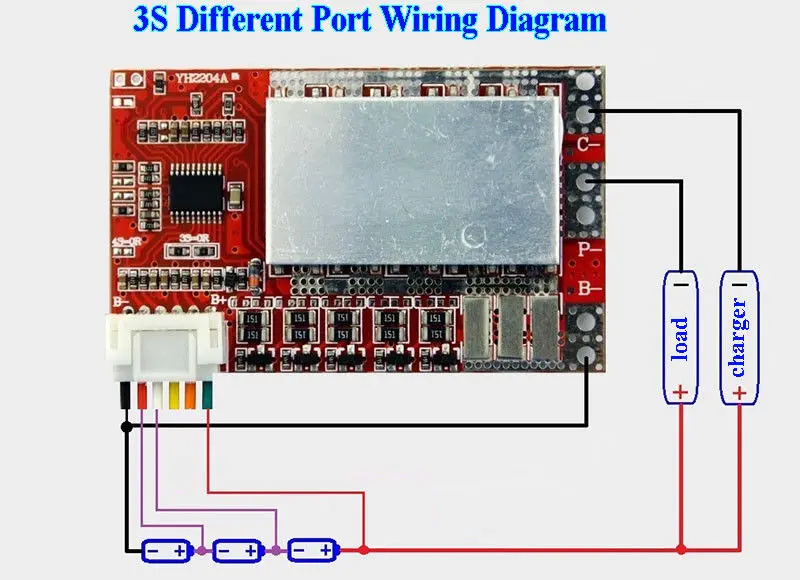

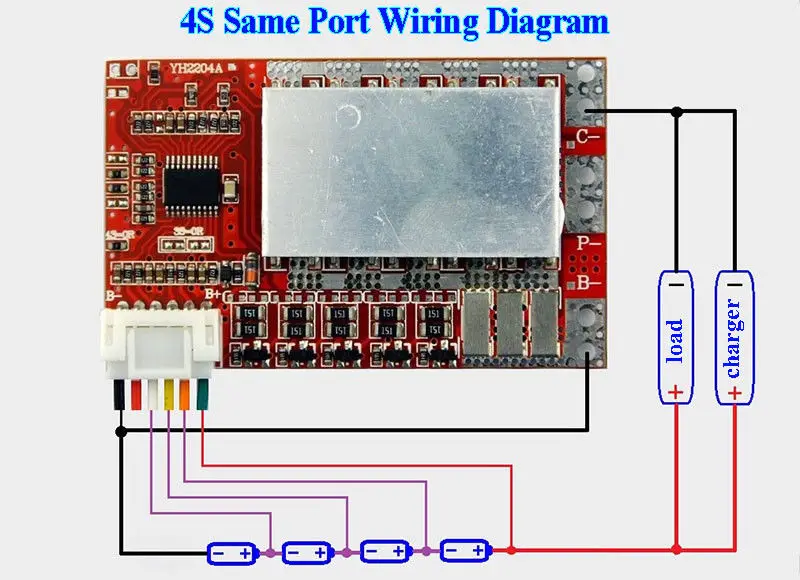

Modify the schematic


1234567




 Description:
  • Features:


    The lithium battery protection board adopts a highly integrated intelligent lithium battery protection board integrated chip, and the performance is superior to the protection board composed of discrete chips. Can complete 3/4/5 string polymer lithium battery, ternary lithium battery, lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide battery charge and discharge protection, over current, short circuit, over temperature protection and equalization function. It adopts 4 milliohm ultra-low internal resistance MOS tube, which has low internal resistance and high efficiency. It is suitable for battery pack applications in different fields such as inverters, DC motors, power tools, and solar street lights. It is common to the same port and diffierent port, and has strong applicability. The protection board has a heat sink and connecting wire.


    Features:

    Single cell Overcharge Protection Voltage: 4.25V ±0.025V

    Single cell Overcharge Relieved Voltage: 4.15V ±0.05V

    Overcharge Protection Delay: 1S ±200mS

    Single cell Over-discharge Protection Voltage: 2.7V ±0.05V

    Single cell Over-discharge Relieved Voltage: 3.0V ±0.1V

    Over-discharge Protection Delay: 1S ±200mS

    Discharge Overcurrent Protection: 70A

    Discharge Overcurrent Protection Delay: 100mS ±50mS

    Short circuit Protection: Yes

    Short circuit Protection Delay: 250uS ±50uS

    Short circuit Protection Recovery Mode: Disconnect the load recovery output voltage

    Discharge Current: 50A (When more than 20A, please add tin on the back of the PCB to increase the current pass capability.)

    Charging Current: 50A (When more than 20A, please add tin on the back of the PCB to increase the current pass capability.)

    Balance Function: Yes

    Balance Turn-on Voltage: 4.18V ±0.025V

    Balance Current: 55mA

    Power Failure Protection: Yes

    Temperature Protection: Yes (valid when external 10K ohm NTC resistor is connected)

    Charge Low Temperature Protection: -7℃

    Charge High Temperature Protection: 50℃

    Discharge Low Temperature Protection: 70℃

    Module Size:72mm x 30mm x 6mm



    Package Contents
    100% Brand New
    1 X  4S/5S 3.7V 50A Lithium Battery PCB BMS Protection Board w Balance (Default 3S)
    1X CABLE
