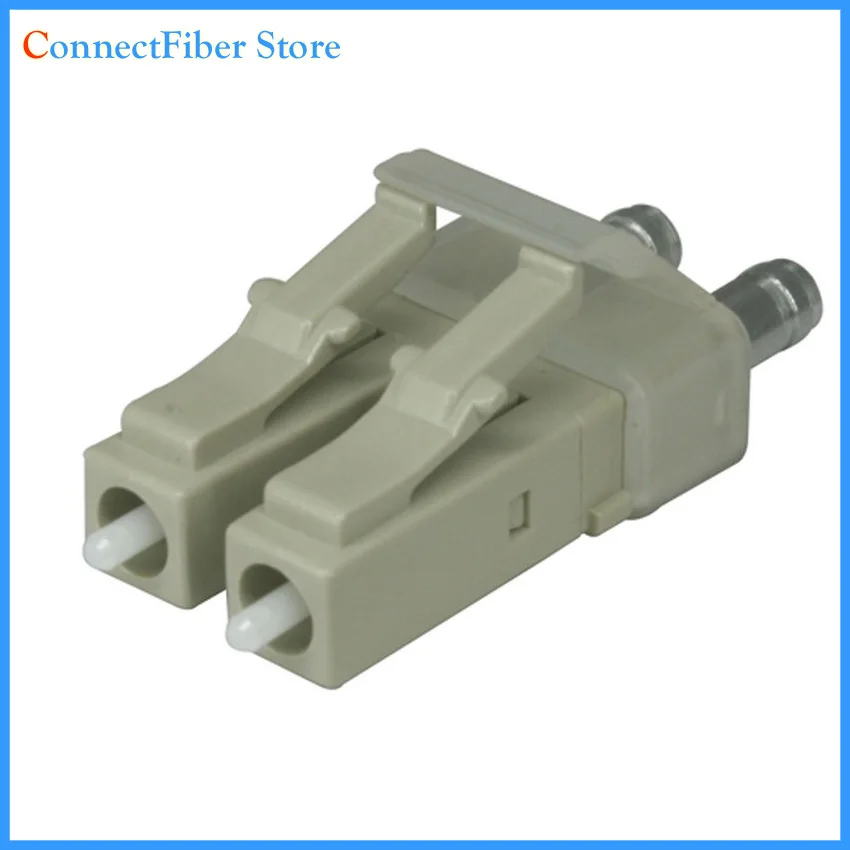

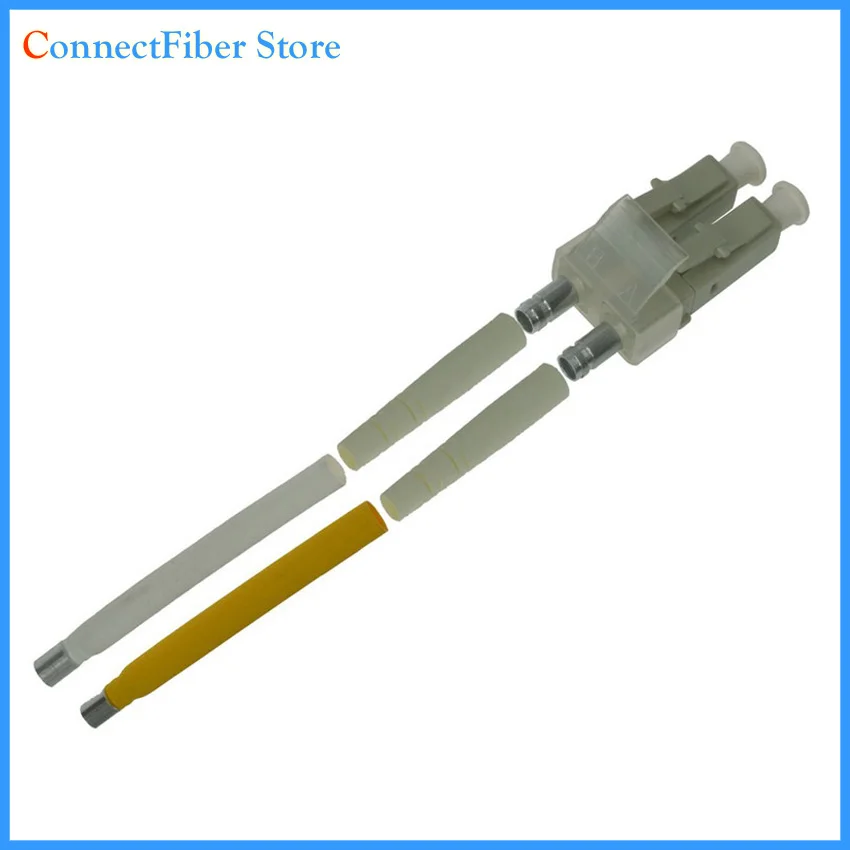

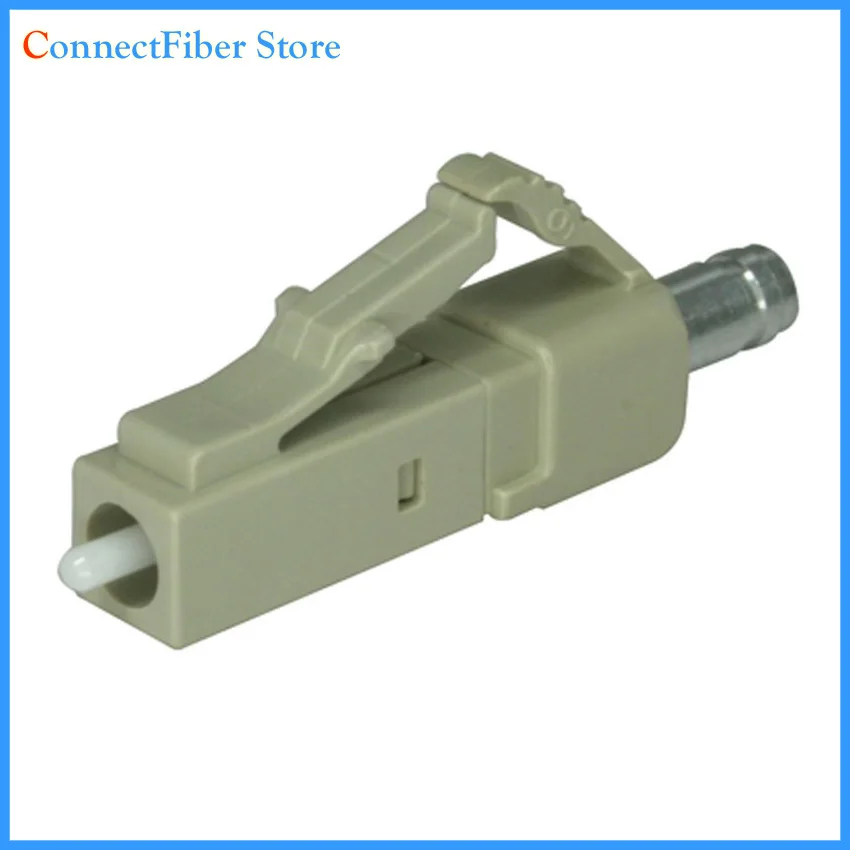

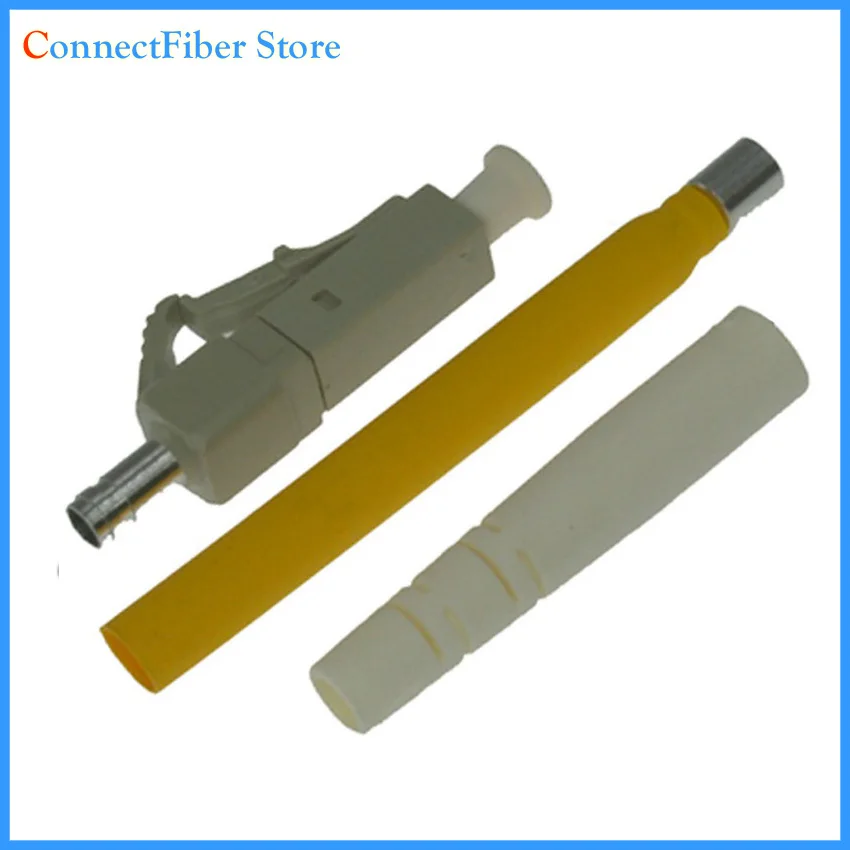

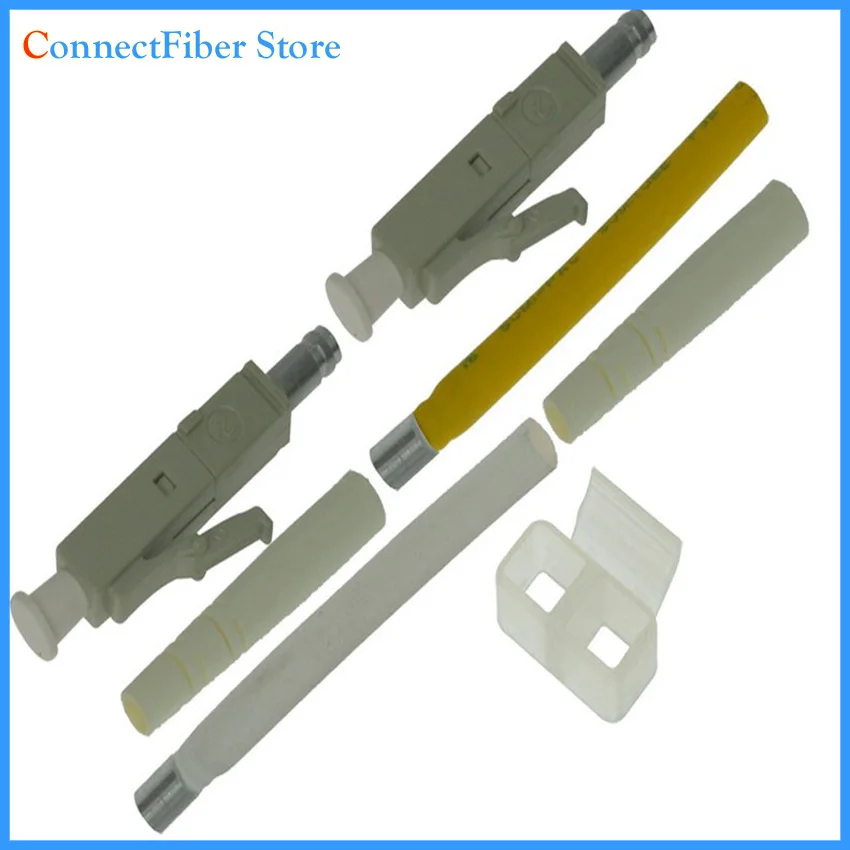

NEATEL LC SOC Field Assembly Connector Multimode Type, Beige, 50pcs/pack



This kind of Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap. Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical connector maintenance and can improve the span life of welding point of connector and reduce maintenance cost.



Feature & Keyed Characteristic   ● Comply with TIA/EIA and IEC; ● Quick and easy fiber termination; ● RoHS compliant; ● Reusable termination capability [Up to 5 times]; ● Easy to deploy fiber solution; ● High success rate of connections; ● Low Insertion & Back Reflection; ● No special tools required.   Technical Parameter

Connector Type	LC \ UPC
Fiber Diameter	0.125mm
Fiber Mode	Multi-mode
Insertion Loss	≤0.5dB (Max 0.7dB)
Return Loss	≥25dB
Cable Available	0.9mm
Tension	20N
Temperature Alteration Ratio	≤0.7dB ( -40℃～+85℃ )
Operating Temperature	-40℃～+85℃
