2019 MPPT 20A 12В/24В Контроллер заряда солнечной панели регулятор батареи
Характеристики
20A 12V/24V Solar Charge Controller with LCD Display Auto Regulator Timer Panel Battery LED Lighting Overload Protection | Обустройство
История изменения цены
*Текущая стоимость 1 083,01 - 1 316,85 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 1375.64 руб. | 1403.75 руб. | 1389 руб. |
| Jan-18-2026 | 1115.68 руб. | 1137.64 руб. | 1126 руб. |
| Dec-18-2025 | 1354.40 руб. | 1381.50 руб. | 1367.5 руб. |
| Nov-18-2025 | 1343.23 руб. | 1370.87 руб. | 1356.5 руб. |
| Oct-18-2025 | 1072.10 руб. | 1093.50 руб. | 1082.5 руб. |
| Sep-18-2025 | 1321.48 руб. | 1347.37 руб. | 1334 руб. |
| Aug-18-2025 | 1310.76 руб. | 1336.91 руб. | 1323 руб. |
| Jul-18-2025 | 1300.93 руб. | 1326.14 руб. | 1313 руб. |
Описание товара

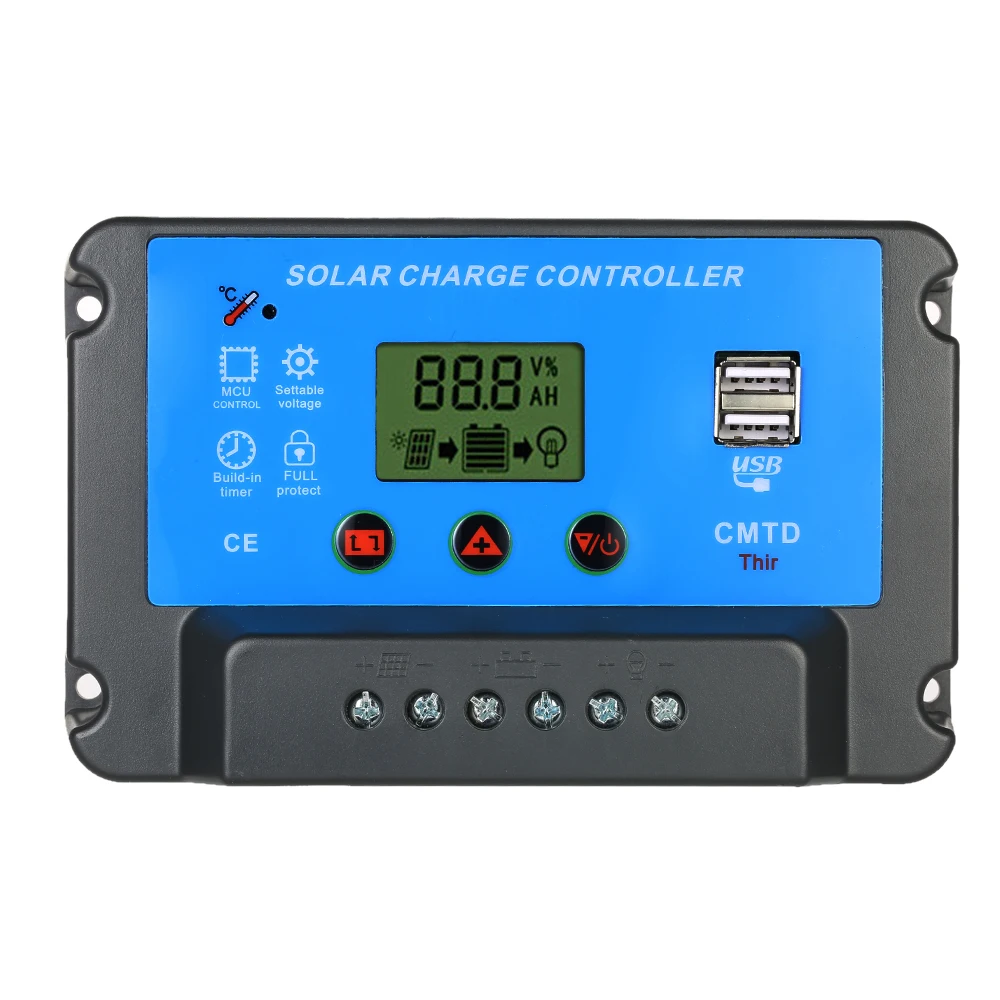

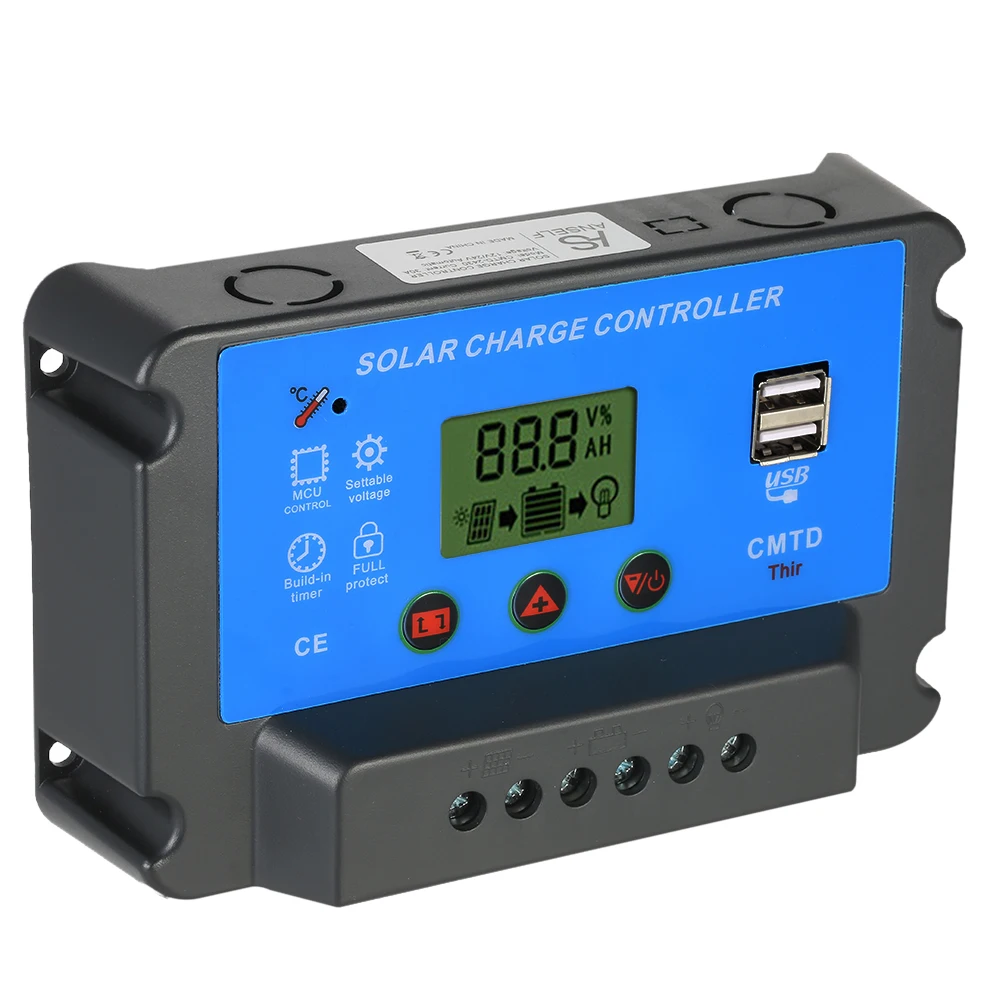

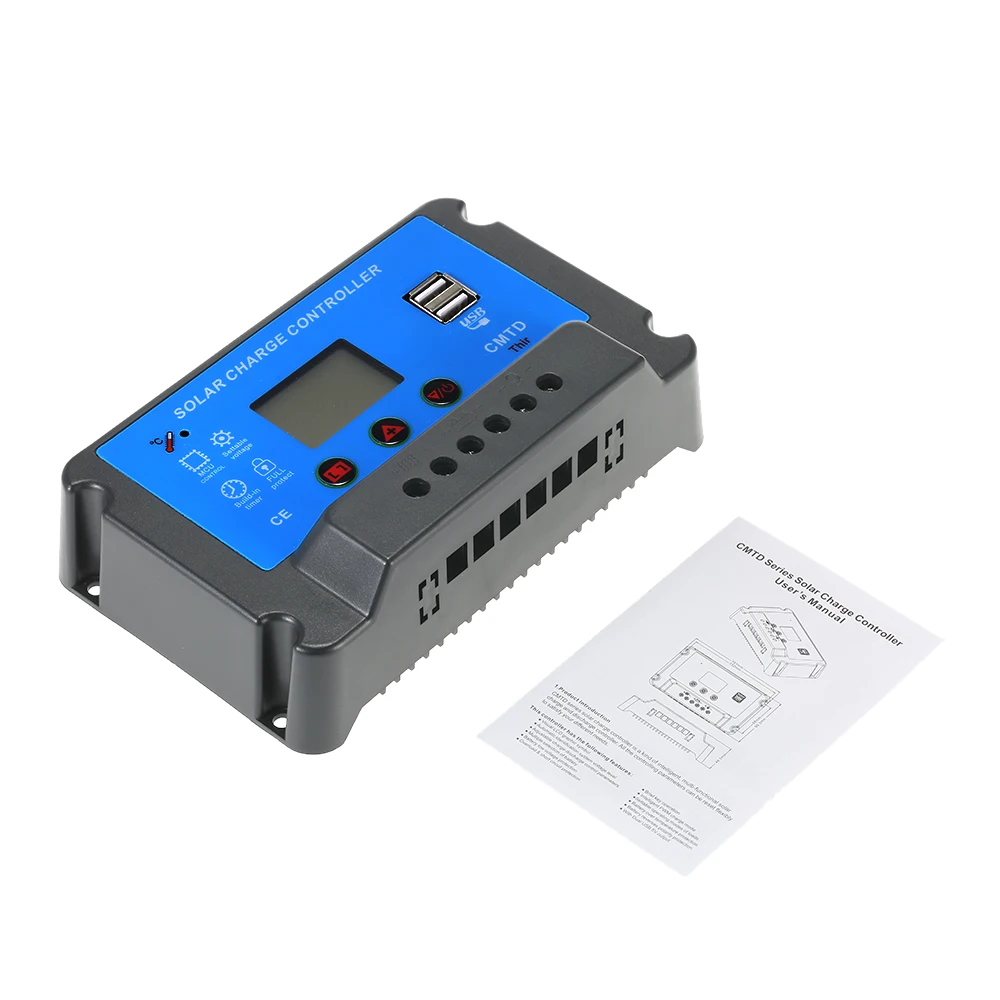

This series solar charge controller is a kind of intelligent, multi-functional solar charge and discharge controller. All the controlling parameters can be reset flexibly to satisfy your different needs.

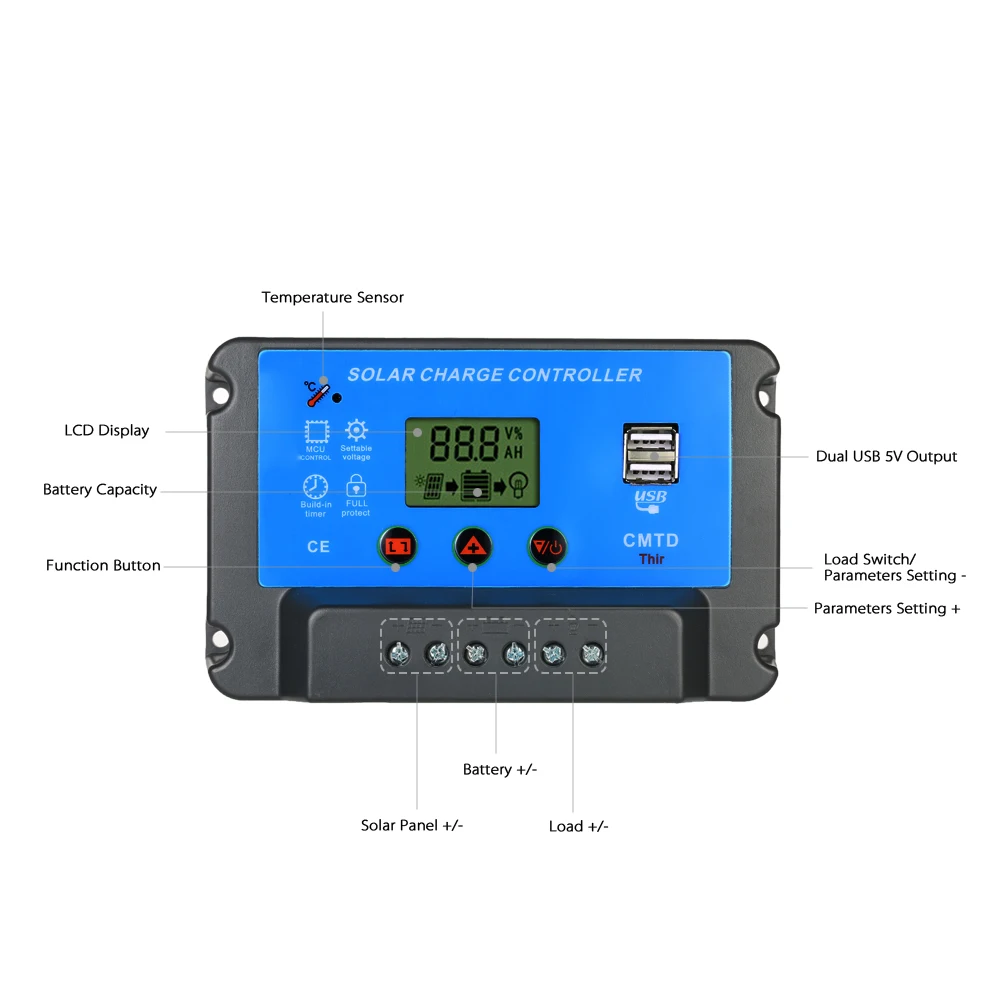

Features:
Visual LCD graphic symbol, brief key operation.
Automatic identification system voltage level, intelligent PWM charge mode.
Adjustable charge/discharge control parameters, settable operating modes of loads.
Multiple selection of battery.

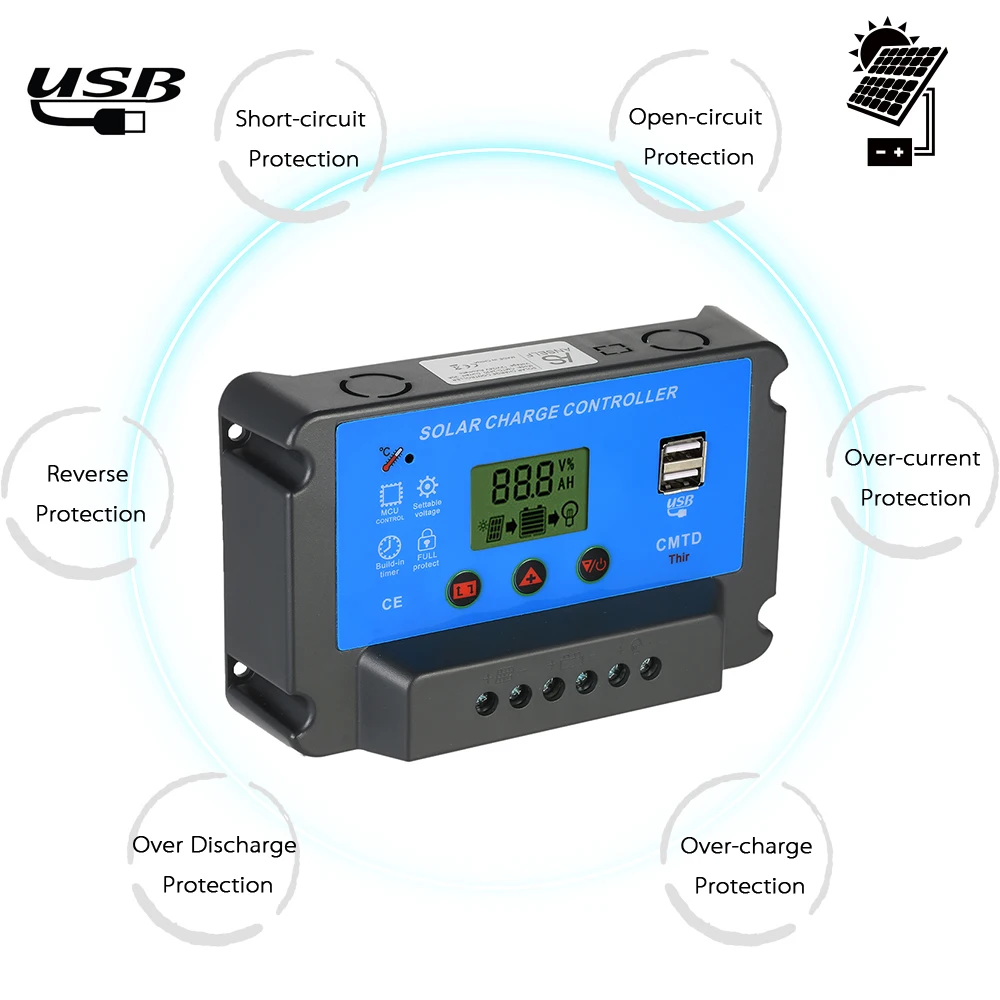

Battery over temperature protection, low voltage/reverse polarity protection.
Over-load and short-circuit protection.
With dual USB 5V output.
Specifications:
Color: Black
Material: Plastic
Rated Voltage: 12V / 24V (Auto Switch)
Max. Charge/Discharge Current: 10A / 20A (Optional)
Max. Solar Panel Input Voltage: ≤50V
Stop Charge Voltage: 14.7V/29.4V
Low Voltage Recovery: 12.2V/24.4V
Low Voltage Protection: 10.5V/21.0V
USB Output Voltage/Current: 5V 2A
No Load Loss: ≤10mA
Temperature Compensation: -3mV/Cell/°C
Operation Temperature: -20°C~60°C
Item Size: 13 * 6.8 * 2.5cm / 5.12 * 2.67 * 0.98in
Item Weight: 120g~152g / 4.23oz~5.38oz
Package Size: 14 * 8 * 4cm / 5.51 * 3.15 * 1.57in
Package Weight: 154g~187g / 5.46oz~6.61oz
Note:

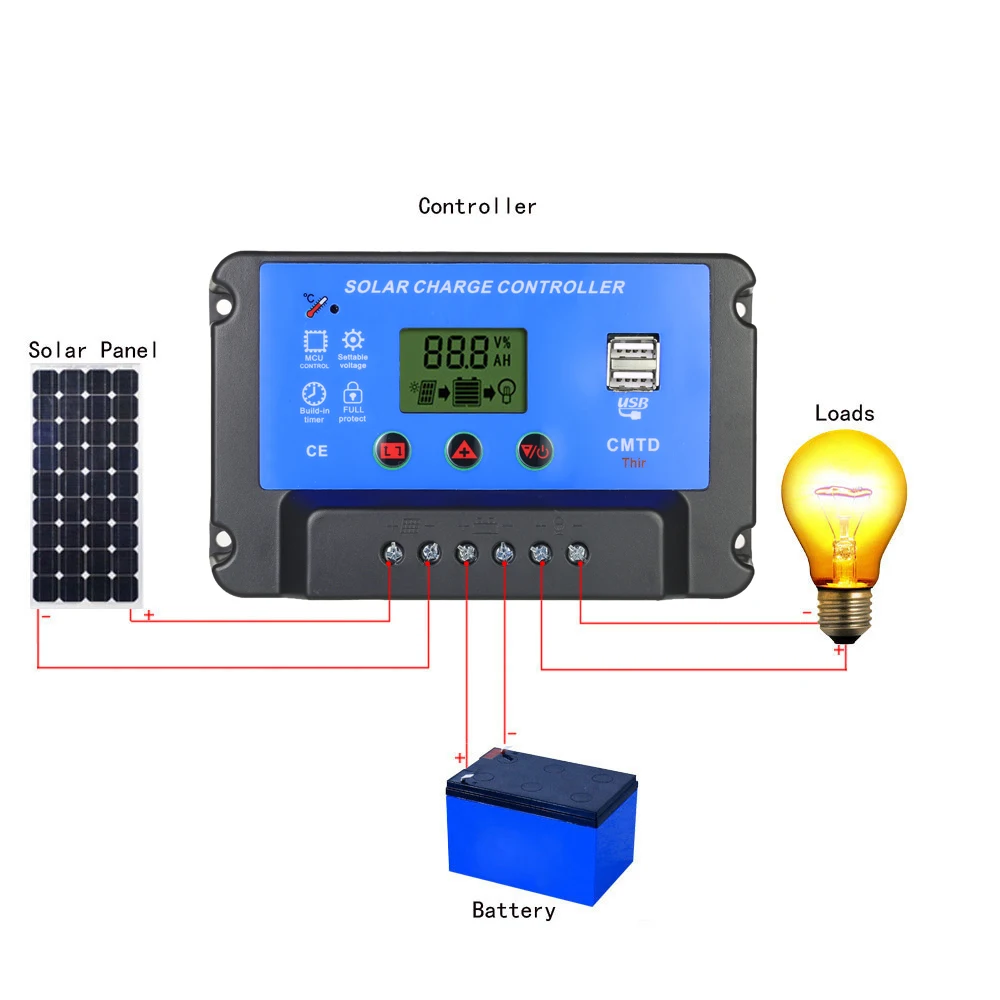

1. Order of Connection: connect storage battery firstly, then connect the solar panel; Order of Disconnection: disconnect the solar panel firstly, then the storage battery; otherwise it will cause damage to the controller.
2. The inverter can't be connected to the controller directly.
3. The controller will generate heat during operation, please notice that put the controller on flat surface with good ventilation.
Configuration Selection:
For 12V System, battery voltage is 12V, recommended input voltage of solar panel: 16-22V, when actual input voltage>50V, controller will be damaged;
For 24V System, battery voltage is 24V, recommended input voltage of solar panel: 32-44V, when actual input voltage>50V, controller will be damaged.
Package List:
1 * Solar Charge Controller
1 * User Manual (English)
