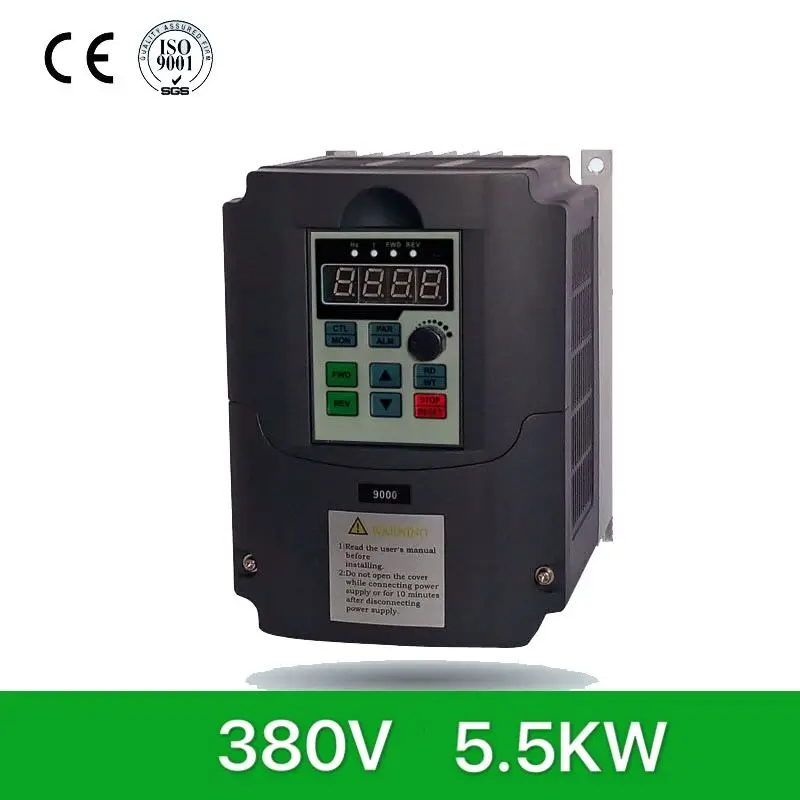

Трехфазный входной дисплей 220 В/380 В переменного тока кВт л.с. VFD для управления
24 587,30 - 31 818,45 руб.
Новое поступление
5000W Pure Sine Wave Inverter DC 12V/24V/48V To AC 110V/220V off-grid UPS solar inverter voltage converter with charger and |
52 157,64 руб.
150W 60V/72VDC off grid pure sine wave inverter surge power 300W working for dc to ac small solar or wind system | Обустройство дома
5 041,91 руб.
VFD Inverter Free shipping 4kw 380v frequency converter ventilation fan sculpture machine | Обустройство дома
14 297,60 - 20 474,16 руб.

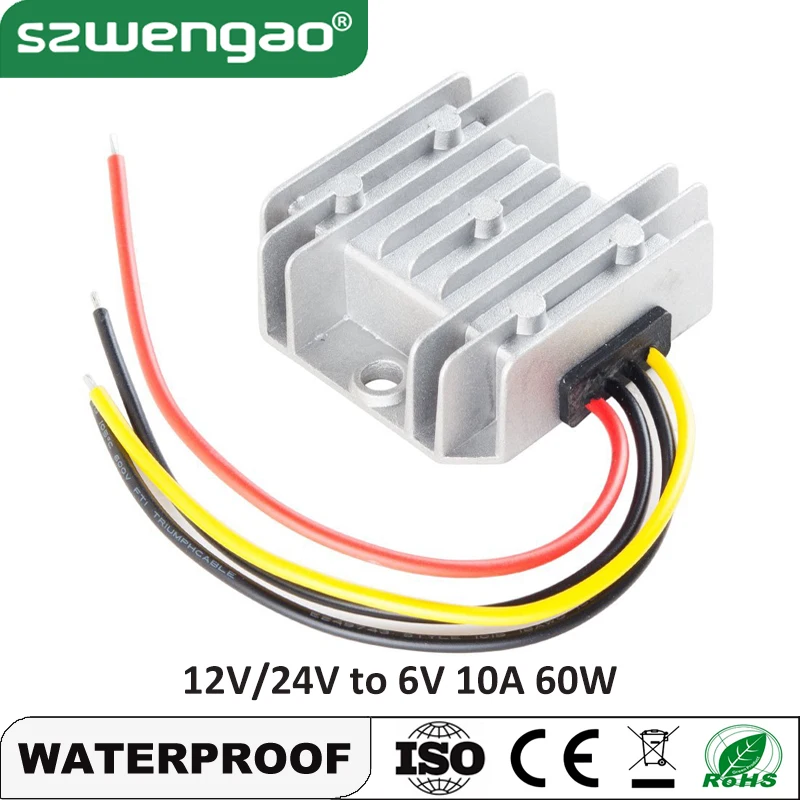

Понижающий преобразователь постоянного тока szwengao 12 В 24 в до 6 10 А понижающий
553,60 руб.
Мягкий стартер DELIXI 380 В 3 фазы 200 кВт 250 инвертор для водяного насоса контроллер
99 586,79 - 103 020,50 руб.
Однофазный AC 220 В 1.5kw вход и 3 фазы выходного вектор преобразователь частоты
VFD 1.5KW/2.2KW/4KW Inverter Frequency Converter single phase 220v Input and 3-phases Output motor speed Controller | Обустройство
3 597,28 - 30 139,34 руб.
Характеристики
600W Waterproof Grid Tie Inverter MPPT Pure Sine Wave DC18-50V Input AC120/230V Output Micro for 30V 36V Solar Panel | Обустройство
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.41 руб. | 0.92 руб. | 0 руб. |
| Feb-18-2026 | 0.9 руб. | 0.68 руб. | 0 руб. |
| Jan-18-2026 | 0.43 руб. | 0.27 руб. | 0 руб. |
| Dec-18-2025 | 0.82 руб. | 0.0 руб. | 0 руб. |
| Nov-18-2025 | 0.76 руб. | 0.24 руб. | 0 руб. |
| Oct-18-2025 | 0.5 руб. | 0.99 руб. | 0 руб. |
| Sep-18-2025 | 0.58 руб. | 0.98 руб. | 0 руб. |
| Aug-18-2025 | 0.24 руб. | 0.7 руб. | 0 руб. |
| Jul-18-2025 | 0.77 руб. | 0.21 руб. | 0 руб. |
Описание товара

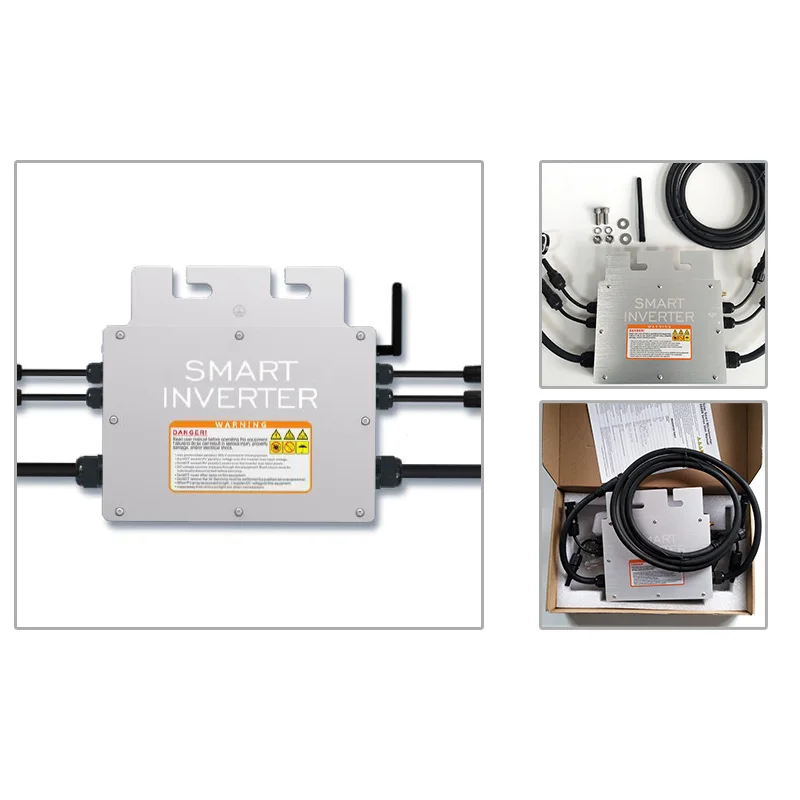

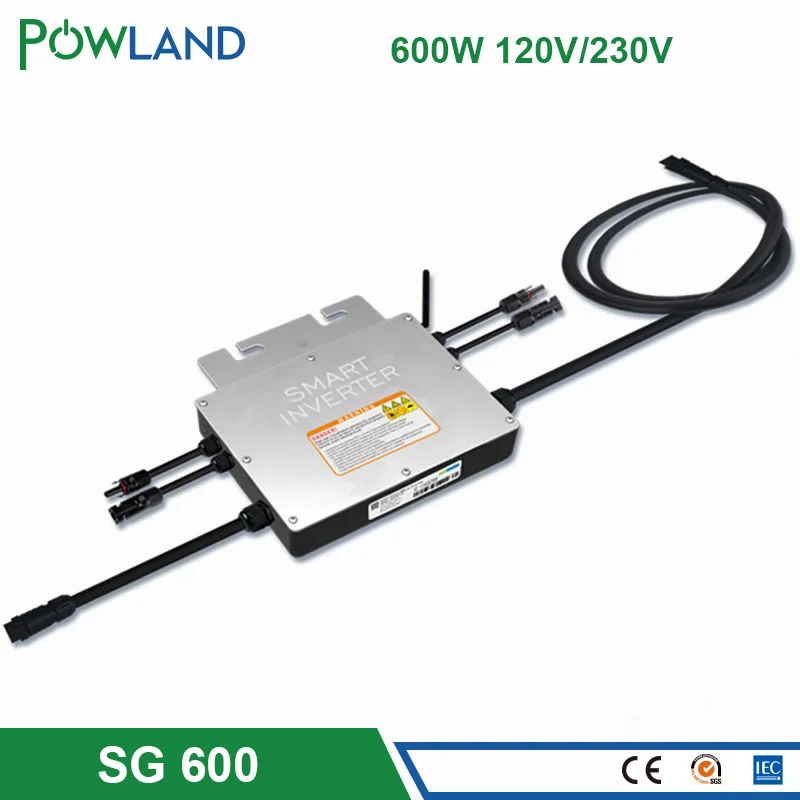

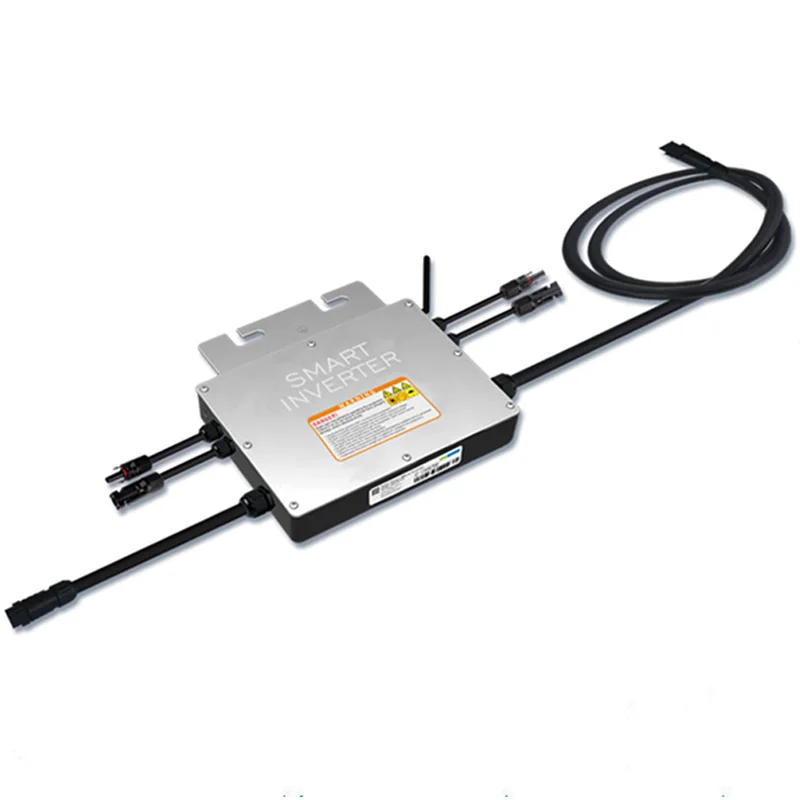

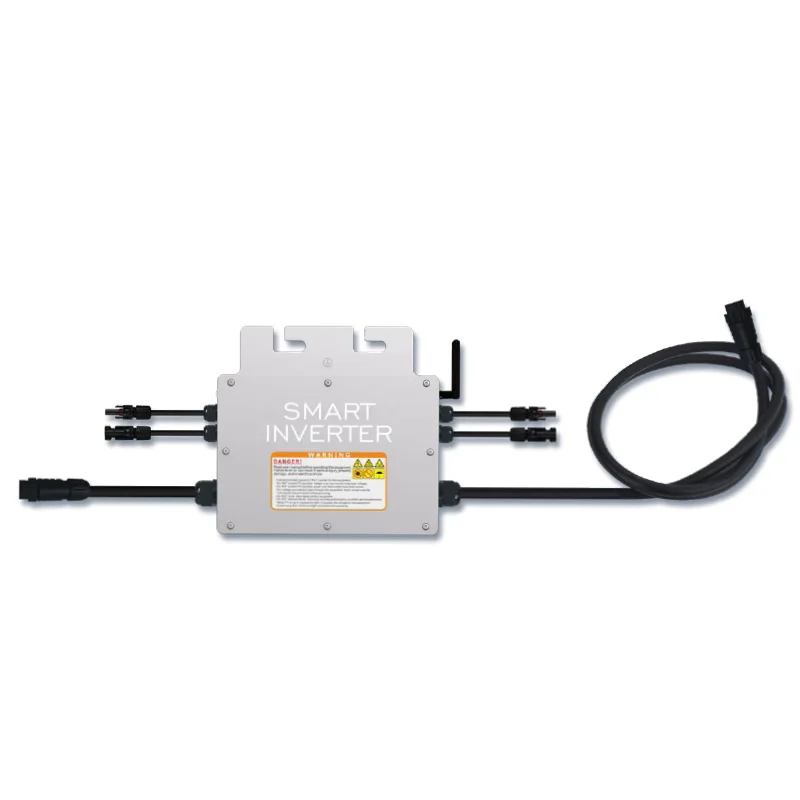

600W Waterproof Grid Tie Inverter MPPT Pure Sine Wave DC18-50V Input AC120/230V Output Micro Inverter for 30V 36V Solar Panel
Description:
Grid Tie Inverter Using IP65 waterproof streamline design,Can effectively prevent rainwater on the surface erosion.High performance Maximum Power Point TraCKING(MPPT) and Autolock maximum Power Point (APL) Please do not install outdoors, avoid rain. You can install it in a ventilated, dry, cool place.
Technical Parameters:

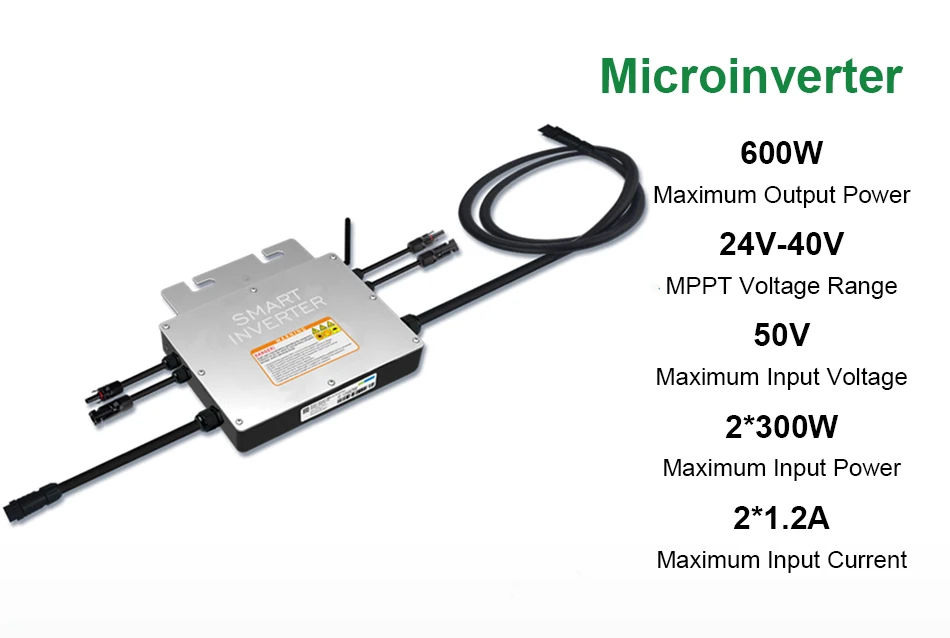

Inverter Model: SG-600W MPPT Voltage Range: 26V-39V Recommended solar panel: 2X300W Voc36-50V Operation Voltage Range: 18V-50V Maximum Input Voltage: 50V Startup Voltage: 18V Maximum Input Power: 2X300W AC Rated Volt Range: 110V/230V Auto Rated Output Power: 590W Maximum Output Power: 600W Default Output Voltage Range: 120VAC : 80V-160V; 230VAC : 180V-260V Nominal Output Frequency: 50Hz/60Hz Auto Waterproof Grade: IP65 Communication: 2.4G Wireless(Does not contain a communication box)
Seller Note:
Note 1: Some customers report connecting solar panels. No light. This is because the customer has extended the solar panel connection cable. (Positive and negative poles are opposite) Note 2: Some customers reported using the product for less than 1 month, and the product showed a red light. stop working. This is because customers use solar panels of different specifications. For 600W, please use 2PCS solar panels with the same specifications. (Voltage, current, power, all need to be the same) Recommended solar panel: 2X300W Voc36-50V. Voc(of a solar panel) must be in the 36-50V range to ensure the good output efficiency Please do not install outdoors, avoid rain. You can install it in a ventilated, dry, cool place. Due to the special properties of solar panels, a wider range of voltage designs can achieve more energy. DC18-50V input, many customers will think that it can be used with DC18V/50V. This is a wrong understanding!
|
Model |
SG600 |
|
Input Data(DC,PV) |
|
|
Number of Input MC4 Connector |
2 set |
|
MPPT Voltage Range |
24V-40V |
|
Operation Voltage Range |
18V-50V |
|
Maximum Input Voltage |
50V |
|
Startup Voltage |
18V |
|
Maximum Input Power |
2*300W |
|
Maximum Input Current |
2*12A |
|
Output Data(AC) |
|
|
Single-Phase Grid Type |
120V & 230V |
|
Rated Output Power |
590W |
|
Maximum Output Power |
600W |
|
Nominal Output Current |
@120VAC : 5A / @230VAC : 2.6A |
|
Nominal Output Voltage |
120VAC / 230VAC |
|
Default Output Voltage Range |
@120VAC : 80V-160V / @230VAC : 180V-280V |
|
Nominal Output Frequency |
50Hz / 60Hz |
|
Default Output Frequency Range |
@50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz |
|
Power Factor |
>0.99 |
|
Total Harmonic Distortion |
THD <5% |
|

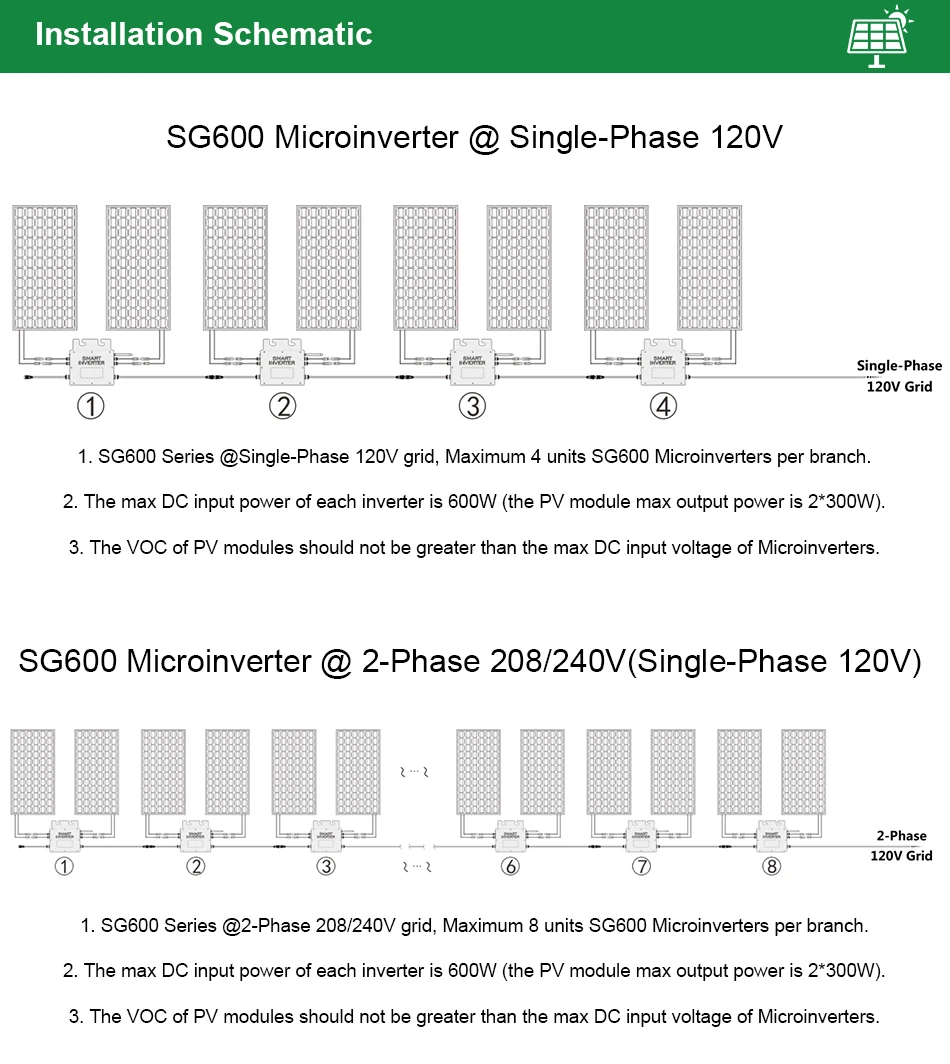

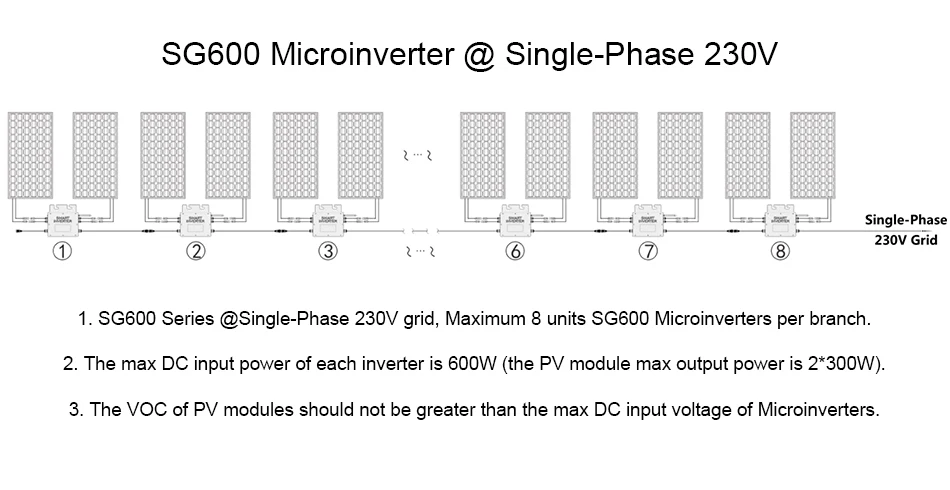

Maximum Units per Branch |

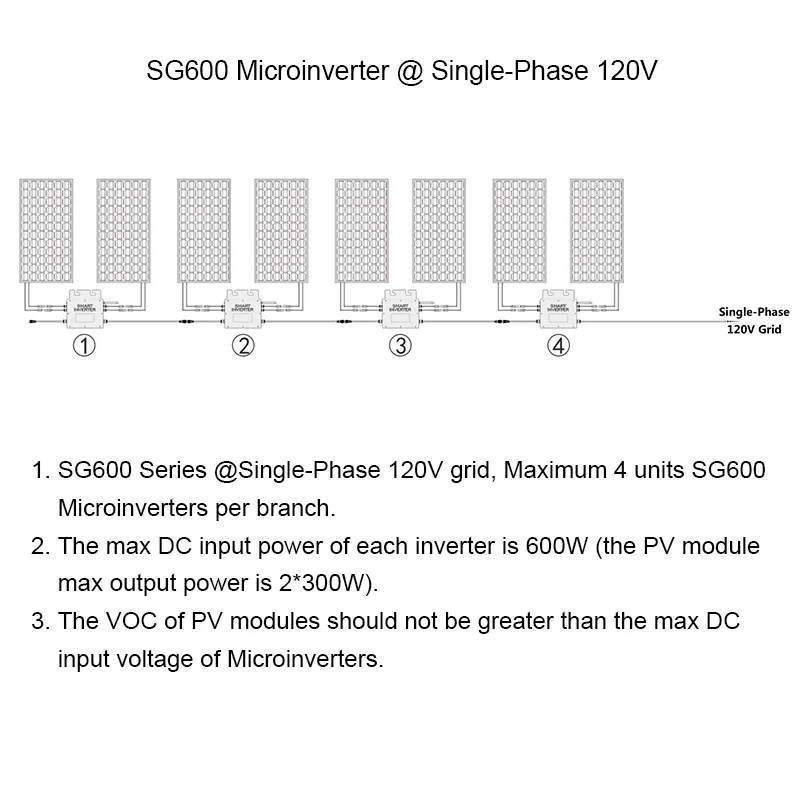

@120VAC : 4 units / @230VAC : 8 units |
|
Efficiency |
|
|
Peak Efficiency |
95% |
|
CEC Weighted Efficiency |
@120VAC : 92.5% / @230VAC : 93.5%. |
|
Nominal MPPT Efficiency |
99.90% |
|
Night Power Consumption |
<700mW |
|
Mechanical Data |
|
|
Operating Ambient Temperature Range |
-40°C to +65°C |
|
Storage Temperature Range |
-40°C to +85°C |
|

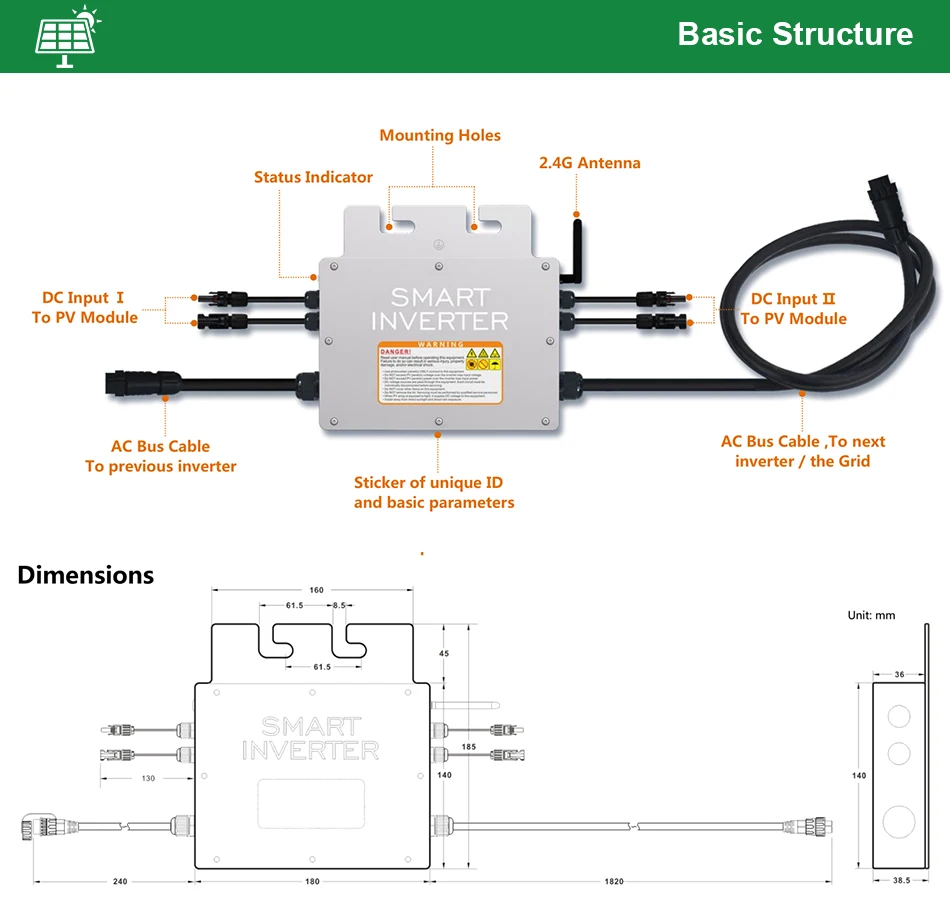

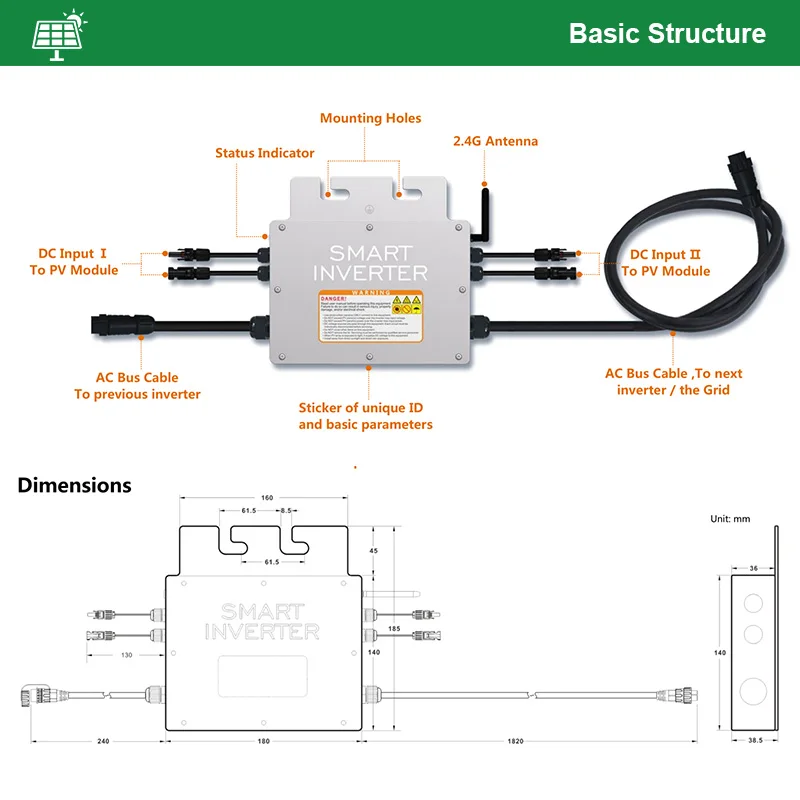

Dimensions (W x H x D) |
185mm x 180mm x 38.5mm (not include connectors and cable) |
|
Weight |
1.5kg |
|
Max Current of AC Bus Cable |
20A |
|
Waterproof Grade |
IP65 |
|
Cooling Mode |
Natural Convection - No Fans |
|
Other Features |
|
|
Communication(Inverter to DataBox) |
2.4G Wireless |
|
Transformer Design |
High Frequency Transformers, Galvanically Isolated |
|
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
|
Protection Functions |
Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. |
|
Design Compliance |
NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc. |
