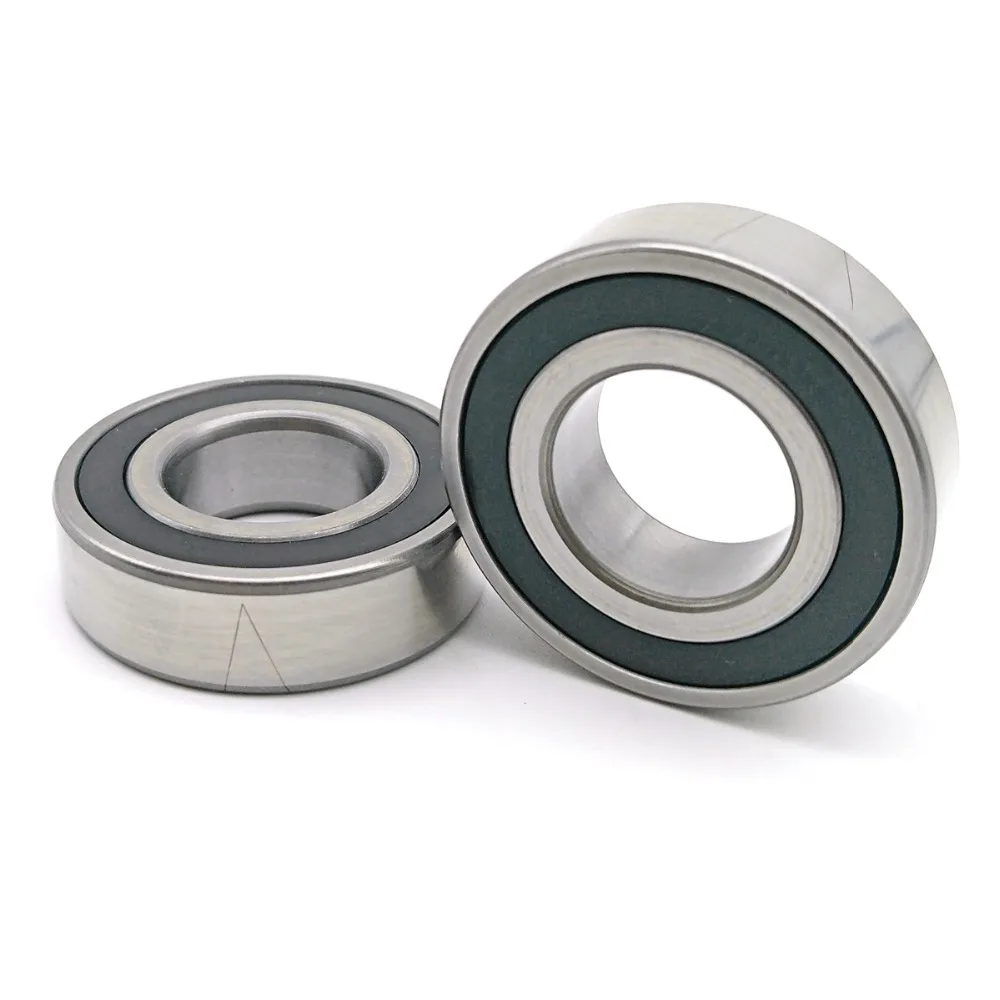

1 пара MOCHU 7003 H7003C 2RZ P4 DB DT A 17X35X10 герметичные Угловые контактные подшипники скорость
2 092,26 руб.

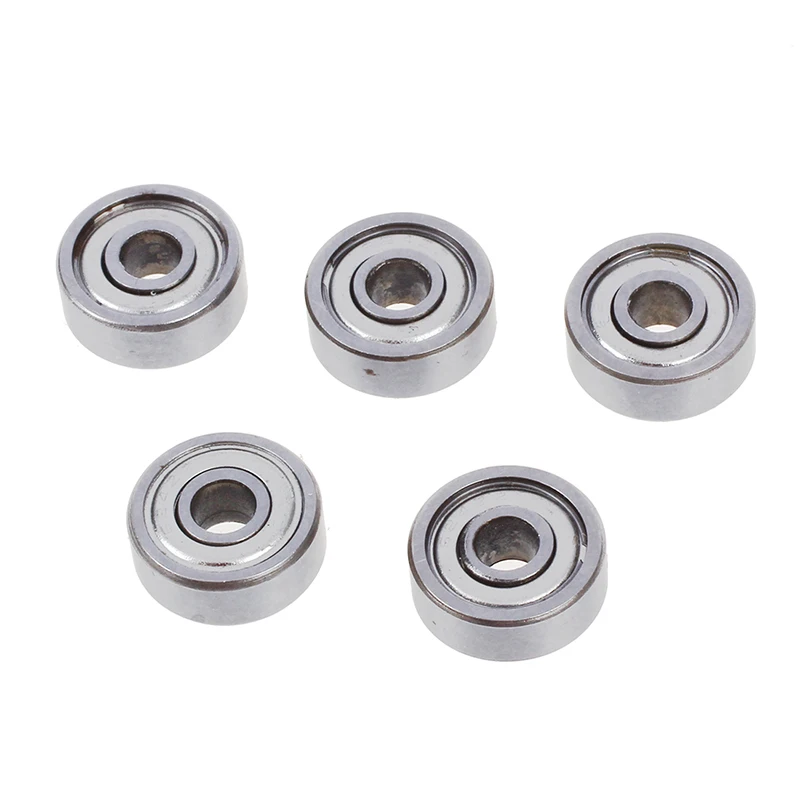

Промо-акция! 4x13x5 мм экранированный микро мини маленький ролик с
Бесплатная доставка 6200 полностью керамические подшипники 10*30*9 мм размер CE
501,22 руб.
6311 55x120x29 6312 60x130x31 6313 68x140x33 6314 70x150x35 6315 75x160x37 ZZ 2RS высокоскоростной подшипник |
Free shipping 4pcs 3D Printer rod 10mm High quality Linear shaft round L600mm for CNC parts XYZ WCS10 | Обустройство дома

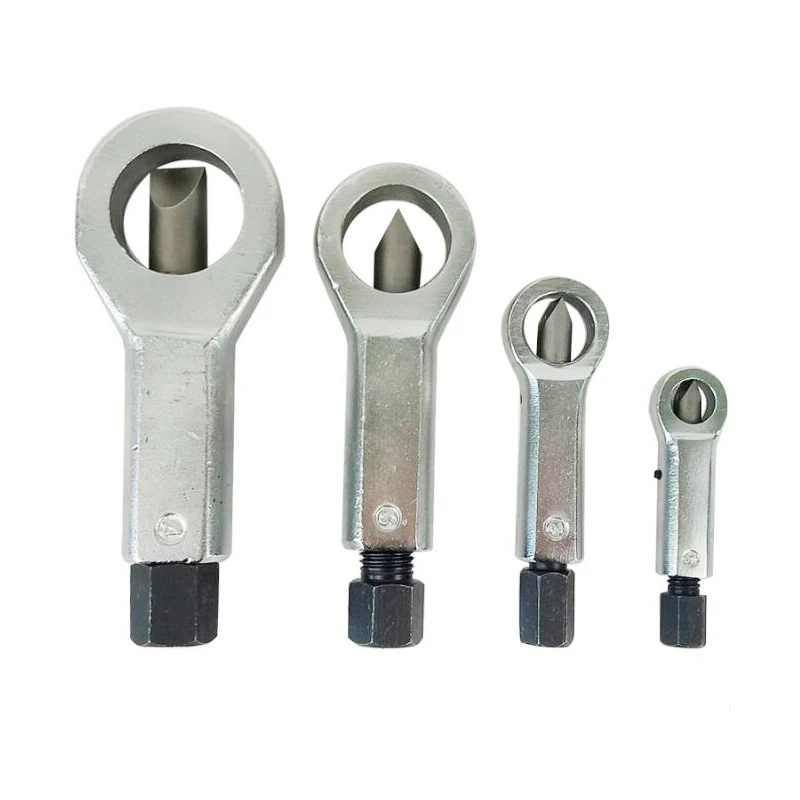

DSHA-сверхмощный гайка набор сплиттеров сломанный поврежденный винт удаление гаек

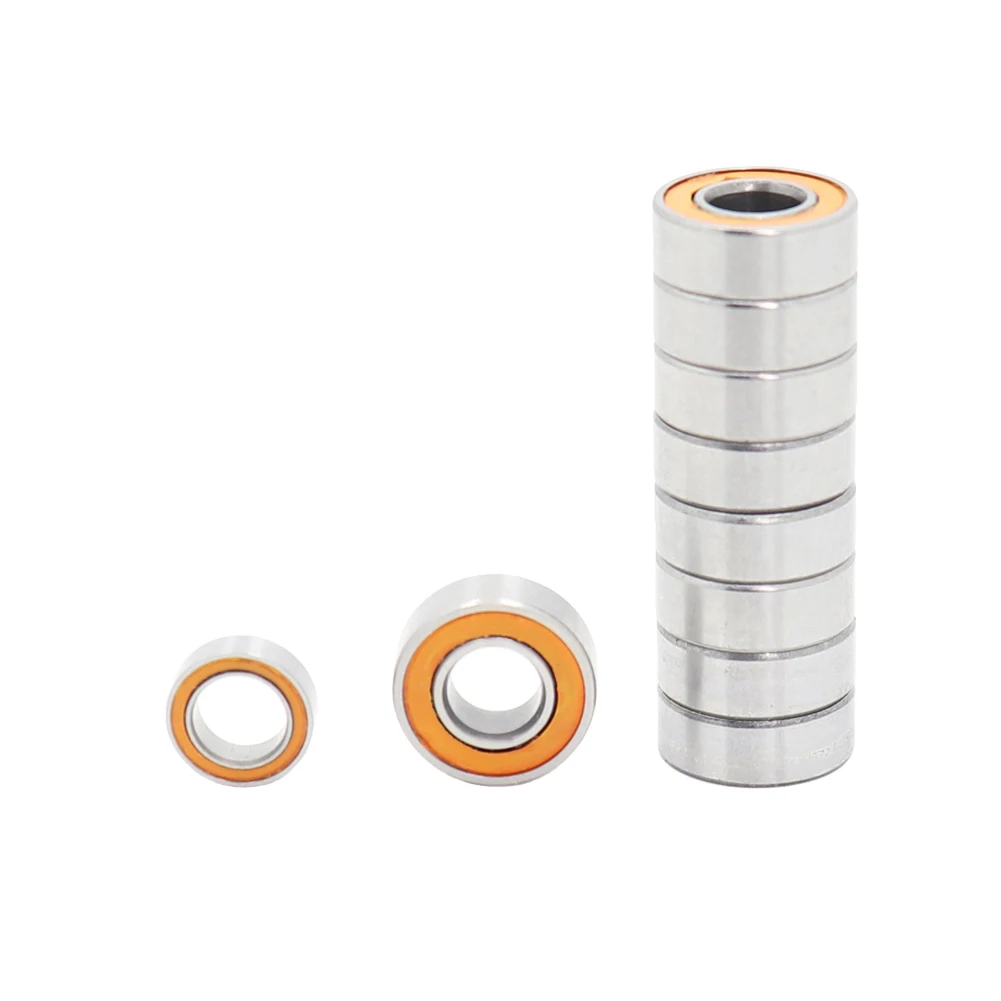

Набор точных шариковых подшипников Tamiya Grasshopper/Hornet (5x11x 4 мм/9 шт. 5x8x2 5 мм/1 шт.)
755,18 руб.
Характеристики
1PC 35x42x30mm HFL3530 One Way Drawn Cup Needle Bearing Clutch | Обустройство дома
История изменения цены
*Текущая стоимость 172,55 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 205.44 руб. | 215.58 руб. | 210 руб. |
| Feb-19-2026 | 203.7 руб. | 213.87 руб. | 208 руб. |
| Jan-19-2026 | 170.98 руб. | 179.0 руб. | 174.5 руб. |
| Dec-19-2025 | 200.87 руб. | 210.8 руб. | 205 руб. |
| Nov-19-2025 | 174.3 руб. | 183.0 руб. | 178.5 руб. |
| Oct-19-2025 | 196.20 руб. | 206.92 руб. | 201 руб. |
| Sep-19-2025 | 194.78 руб. | 204.5 руб. | 199 руб. |
| Aug-19-2025 | 193.98 руб. | 203.31 руб. | 198 руб. |
| Jul-19-2025 | 191.85 руб. | 201.52 руб. | 196 руб. |
Описание товара
the bearing cage/retainer possible be steel or nylon, will ship randomly according to the inventory, If you mind, please consult before placing an order, the image is only a reference.

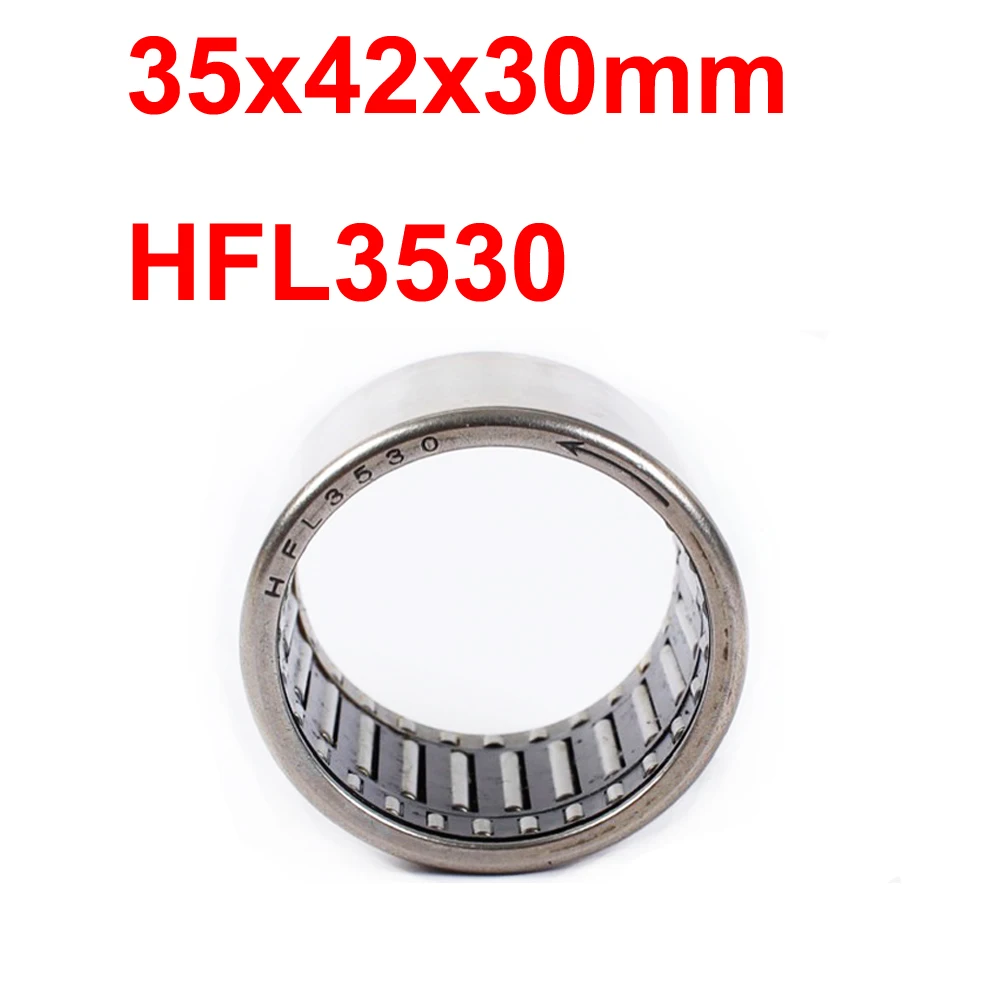

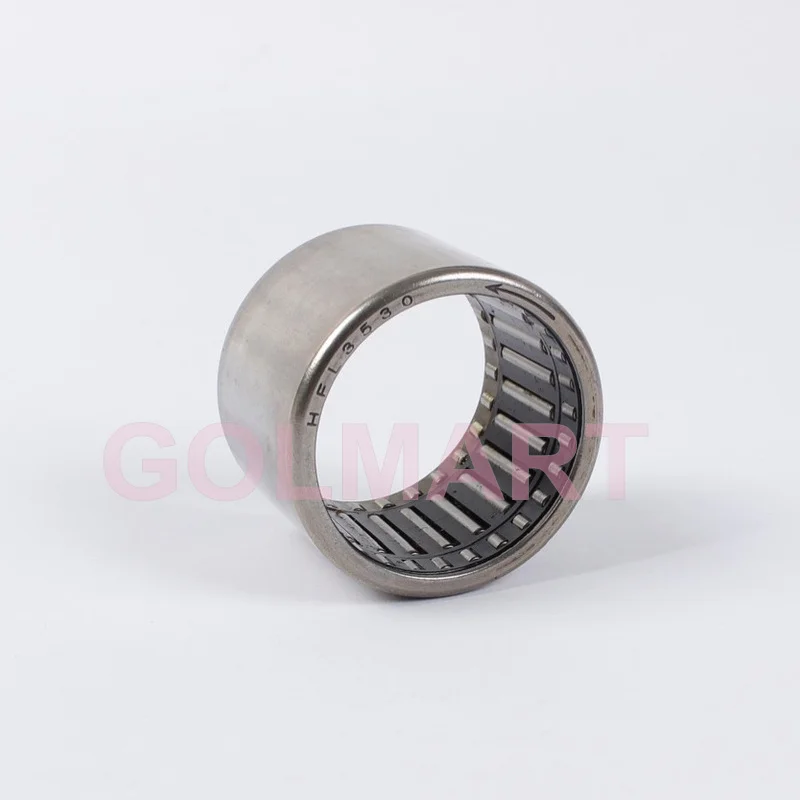

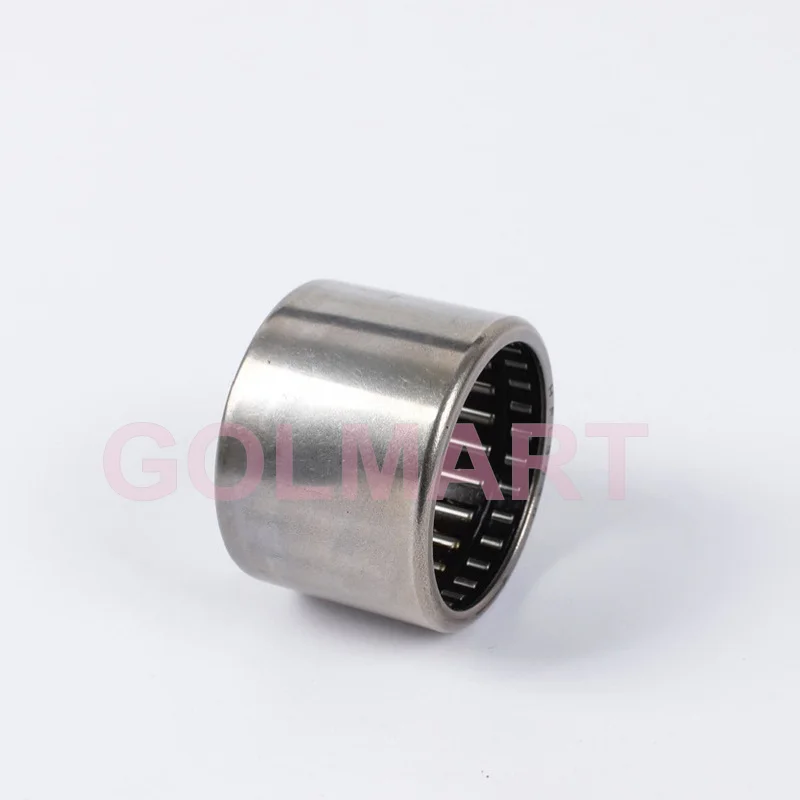

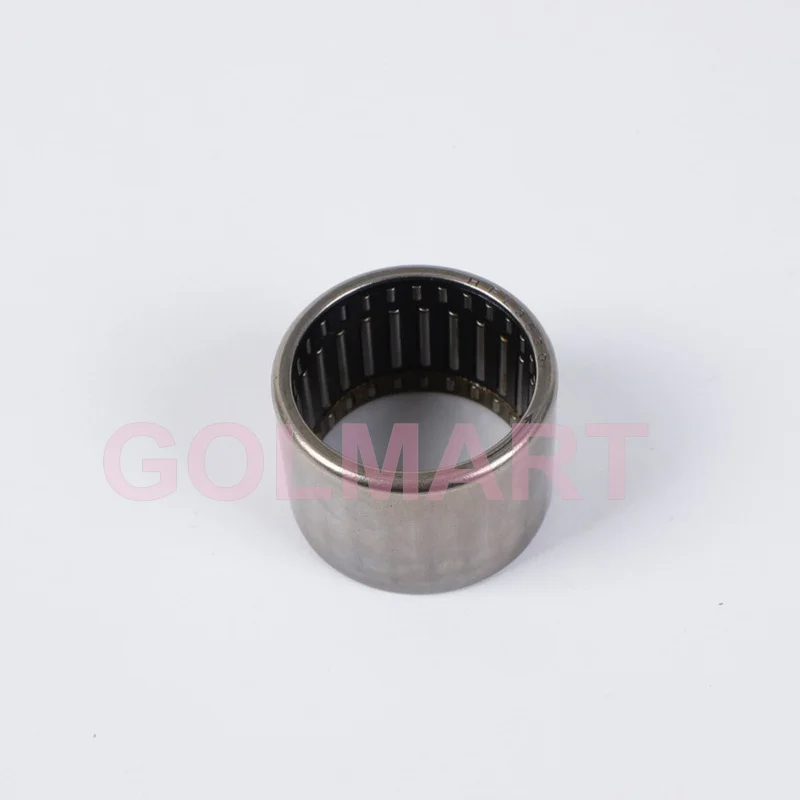

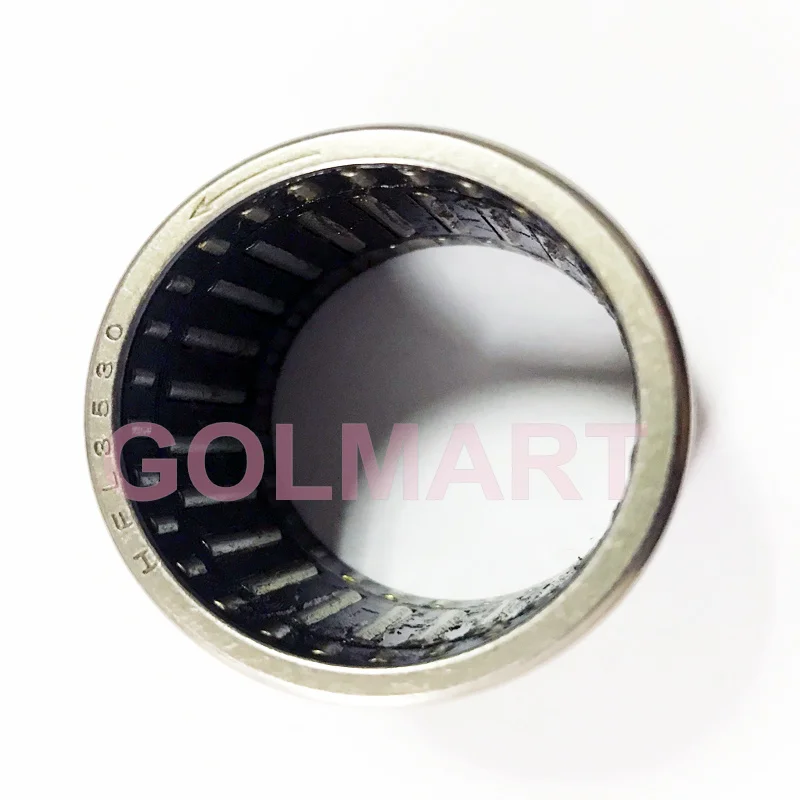

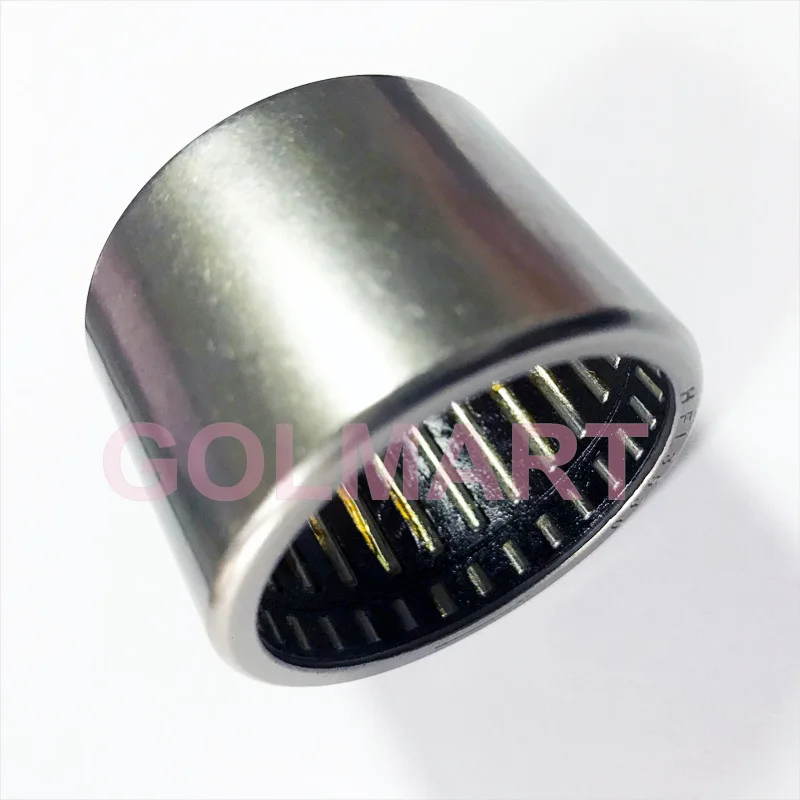

1PC 35x42x30mm HFL3530 One Way Drawn Cup Needle Bearing Clutch
You are bidding on brand new HFL3530 needle roller bearing, the product detail is in the below:
- Item Type: Drawn Cup Needle Roller Bearing /clutch
- Model number: HFL3530
- material: chrome steel
- Cover: open
- Dimensions:
ID(inner diameter)/Bore=35mm
OD (outer diameter)=42mm
Width/Height=30mm
Please click below to view more one way bearings.
HF0306 3*6.5*6 | HFL0408 4*8*8 |
HF0406 4*8*6 | HFL0615 6*10*15 |
HF0608 6*10*8 | HFL0822 8*12*22 |
HF0612 6*10*12 | HFL1022 10*14*22 |
HF0812 8*12*12 | HFL1226 12*18*26 |
HF1012 10*14*12 | HFL1426 14*20*26 |
HF1216 12*18*16 | HFL1626 16*22*26 |
HF1416 14*20*16 | HFL1826 18*24*26 |
HF1616 16*22*16 | HFL2026 20*26*26 |
HF1816 18*24*16 | HFL2530 25*32*30 |
HF2016 20*26*16 | HFL3030 30*37*30 |
HF2520 25*32*20 | HFL3530 35*42*30 |
HF3020 30*37*20 | |
HF3520 35*42*20 | |
RC040708 6.35*11.11*12.7 | RCB061014 9.52*15.88*22.22 |
RC061008 9.52*15.88*12.7 | RCB081214 12.7*19.05*22.22 |
RC081208 12.7*19.05*12.7 | RCB101416 15.88*22.22*25.4 |
RC101410 15.88*22.22*15.88 | RCB121616 19.05*25.4*25.4 |
RC121610 19.05*25.4*15.88 | RCB162117 25.4*33.35*27 |
RC162110 20*26*16 |
- Condition: brand new, unused item, the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag or tube.
- the picture is just for reference.
- Please research the item to ensure it fits your application.
- Questions?Please feel free to contact us directly through aliexpress.
The drawn cup needle roller clutch is the overriding clutch(one-way clutch), composed of the outer ring punched with the high-quality steel sheet, plastic retainer, spring and needles, used for transferring one-way torque.
The drawn cup needle roller clutch has not the load carrying feature by itself. However it can play the action in compination with model HK and BK drawn cup needle roller bearing.
The drawn cup needle roller clutch is the block bearing either withstanding the radial load or transferring torque.
this is a popular size that could be used in many application, suitable for numerous applications including free wheel devices, office equipment, paper-towel dispensers, exercise equipment, appliances, designed to transmit torque in one direction and freewheel in the opposite direction, bearing turns in one direction only.
RTTING SHAFT DIA(MM) | DESIGNATIONS | CORRESPONDING DISIGNATIONS | BOUNDARY DIMESIONS(MM) | LIMTING SPEEDS(R/MIN) | WEIGHT | ||||||
FW | D | C | TORGUE | N N A | [G] | ||||||
HF SERIES | |||||||||||
HF0406 | HF0406 | FC-4 | 4 | 8 | 6 | 0.34 | 34000 | 14000 | 2 | ||
HF0608 | HF0608 | 6 | 10 | 8 | 2 | ||||||
6 | HF0612 | HF0612 | FC-6 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | 3 | |
8 | HF0812 | HF0812 | - | 8 | 12 | 12 | 3.15 | 17000 | 12000 | 3.5 | |
HF081412 | FC-8 | 8 | 14 | 12 | 4.02 | 4 | |||||
10 | HF1012 | HF1012 | FCL-10K | 10 | 14 | 12 | 4.41 | 14000 | 11000 | 4 | |
FC-10 | 10 | 16 | 12 | 5.3 | 11 | ||||||
12 | HF1216 | HF1216 | FC-12 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | 11.6 | |
14 | HF1416 | HF1416 | FC-14K | 14 | 20 | 16 | 17.3 | 9500 | 8000 | 13 | |
16 | HF1616 | HF1616 | FC-16 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | 14 | |
18 | HF1816 | HF1816 | - | 18 | 24 | 16 | 24.1 | 7500 | 7500 | 15.5 | |
20 | HF2016 | HF2016 | FC-20 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | 17 | |
25 | HF2520 | HF2520 | FC-25 | 25 | 32 | 20 | 66 | 5500 | 5500 | 30.9 | |
30 | HF3020 | HF3020 | FC-30 | 30 | 37 | 20 | 90 | 4500 | 4500 | 36 | |
35 | HF3520 | HF3520 | FC-35 | 35 | 40 | 20 | 121 | 3900 | 3900 | 40 | |
8 | HFL0822 | HFL0822 | FCBL-8K | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 6.3 | |
FCB-8 | 8 | 14 | 20 | 4.02 | 11 | ||||||
10 | HFL1022 | HFL1022 | - | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 7.4 | |
FCB-10 | 10 | 16 | 20 | 12 | |||||||
12 | HFL1226 | HFL1226 | FCB-12 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 18 | |
14 | HFL1426 | HFL1426 | - | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 20.3 | |
16 | HFL1626 | HFL1626 | FCB-16 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 22 | |
18 | HFL1826 | HFL1826 | - | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 24.4 | |
20 | HFL2026 | HFL2026 | FCB-20 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | ||
25 | HFL2530 | HFL2530 | FCB-25 | 25 | 32 | 30 | 66 | 5500 | 5500 | 44 | |
30 | HFL3030 | HFL3030 | FCB-30 | 30 | 37 | 30 | 90 | 4500 | 4500 | 51 | |
35 | HFL3530 | HFL3530 | - | 35 | 42 | 30 | 121 | 3900 | 3900 | 58 | |
nternational bidders/Buyers -Please Note: we ship worldwide, the import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. These charges are normally collected by the delivering freight (shipping) company or when you pick the item up -do not confuse them for additional shipping charges.
As a professional needle bearing products supplier with many years experiences,we could offer many kinds of good quality needle bearings. We are open to all sincere buyers,for further information, welcome to make inquiry, thank you for taking time to read our information!
