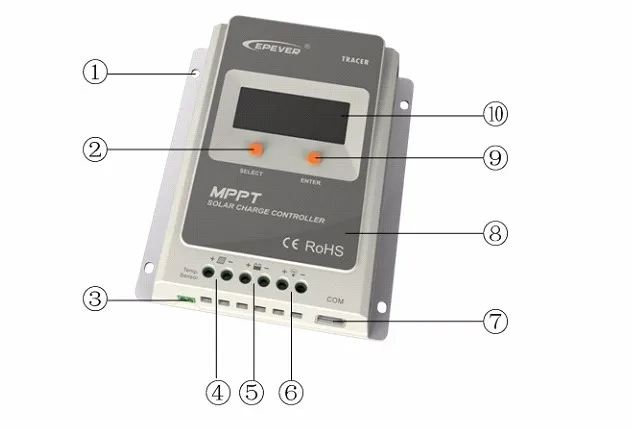

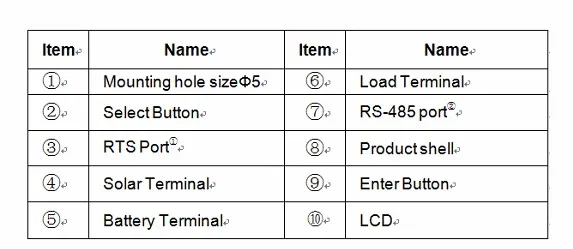

This listing includes: 1 pcs of MPPT solar charge controller, 20A, 12/24V.     Remark: (external display meter MT50 is not included in this package, if you need, please contact us to order separately.)     TRUE MPPT!!!! MAX. PV input power: 260W (12V),   520W (24V) MAX. Input voltage(PV VOC): 100VDC   Figure 1-2   Remark: 1.  RTS port is for connection a RTS (Remote Temperature Sensor) to remotely detect battery temperature. (Optional, RTS is not included in the package) 2. Monitor controller by PC and update controller software via RS485 (RJ45 interface). (optional, the cable connection to PC is not included in the package)   Overview :  Thank you very much for selecting our product! ​ Appreciate you for choosing MPPT solar charge controller, Tracer-A series. Based on common positive design and advanced MPPT control algorithm, with LCD displaying running status With MPPT control algorithm, in any situation, products of this series can fast and accurately track out the best maximum power point (MPP) of photovoltaic array, in order to obtain the maximum solar energy in time, which remarkably improves energy efficiency. There is dual display function: local LCD panel and remote meter. With Modbus communication protocol interface, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, street lighting system, wilderness monitoring system, etc.   Features :  ⦁ Advanced maximum power point tracking technology (MPPT) to optimize using the solar system, with efficiency no less than 99.5%.. ⦁ Ultra-fast tracking speed and guaranteed tracking efficiency. ⦁ Accurately recognizing and tracking of multiple power points. ⦁ Reliable automatic limit function of maximum PV input power, ensuring no overload under any circumstance. ⦁ Wide MPP operating voltage range. ⦁ 12/24VDC automatically identifying system voltage. ⦁ LCD panel display design, dynamically displaying tool’s operating data and working condition. ⦁ Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode. ⦁ Support 3 charging preprogram options for battery: Sealed, Gel, Flooded.  ⦁ Battery temperature compensation function. ⦁ Real-time energy statistics function. ⦁ With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations. (Optional, the cable connection to PC is not included in the package) ⦁ external display unit (MT50), realizing real-time data checking and parameters setting. (optional)   Solar Module MPP Voltage(17V, 34V, 68V) / Nominal System Voltage(12V)     Solar Module MPP Voltage(34V, 68V) / Nominal System Voltage(24V)     Parameter :      Product Dimension in unit (mm)
