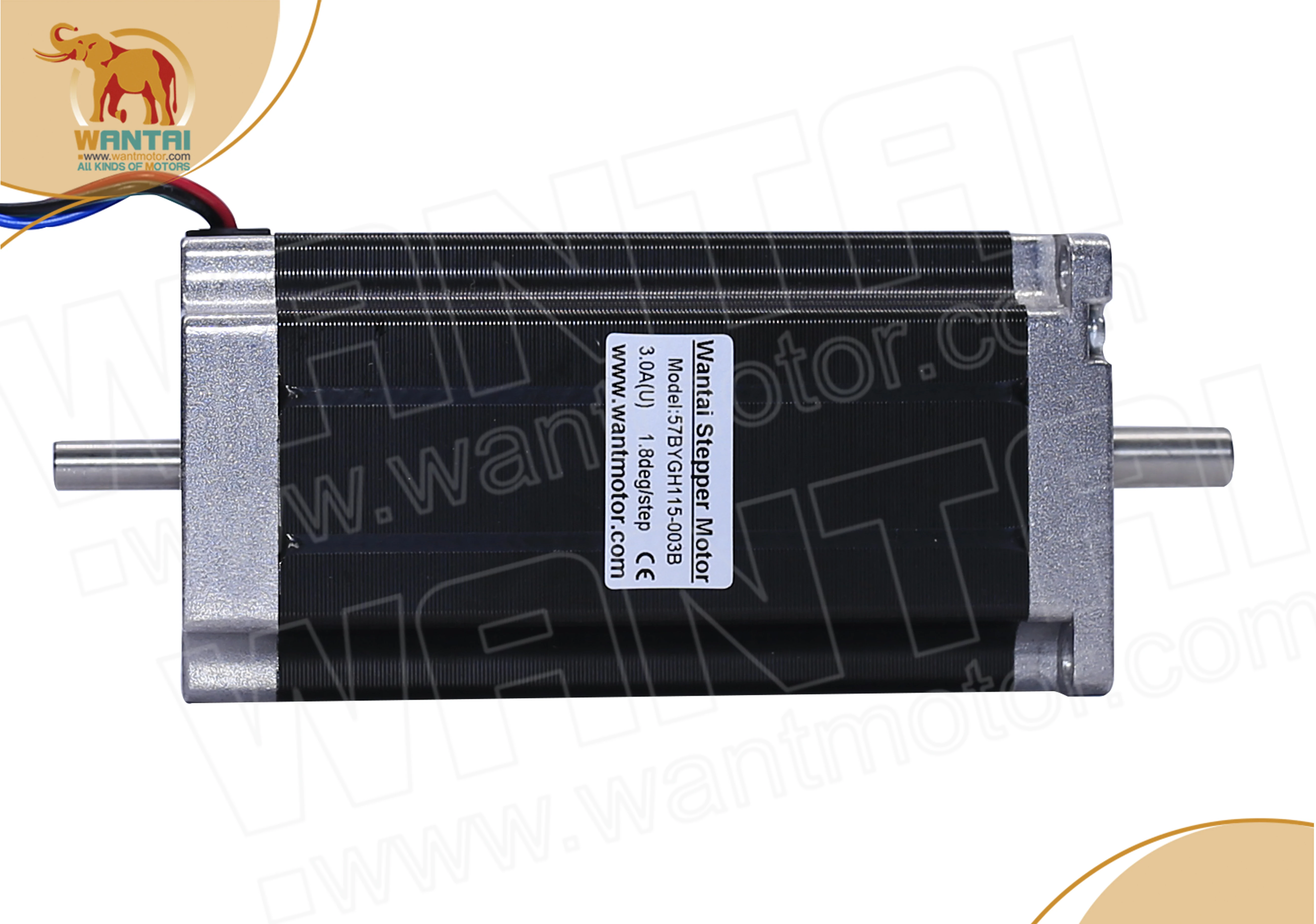

Русский бесплатно! Шаговый двигатель Nema 23 Wantai 57BYGH115-003 3.0A 425oz-in CE ROHS ISO 3D принтер
5 763,54 руб.

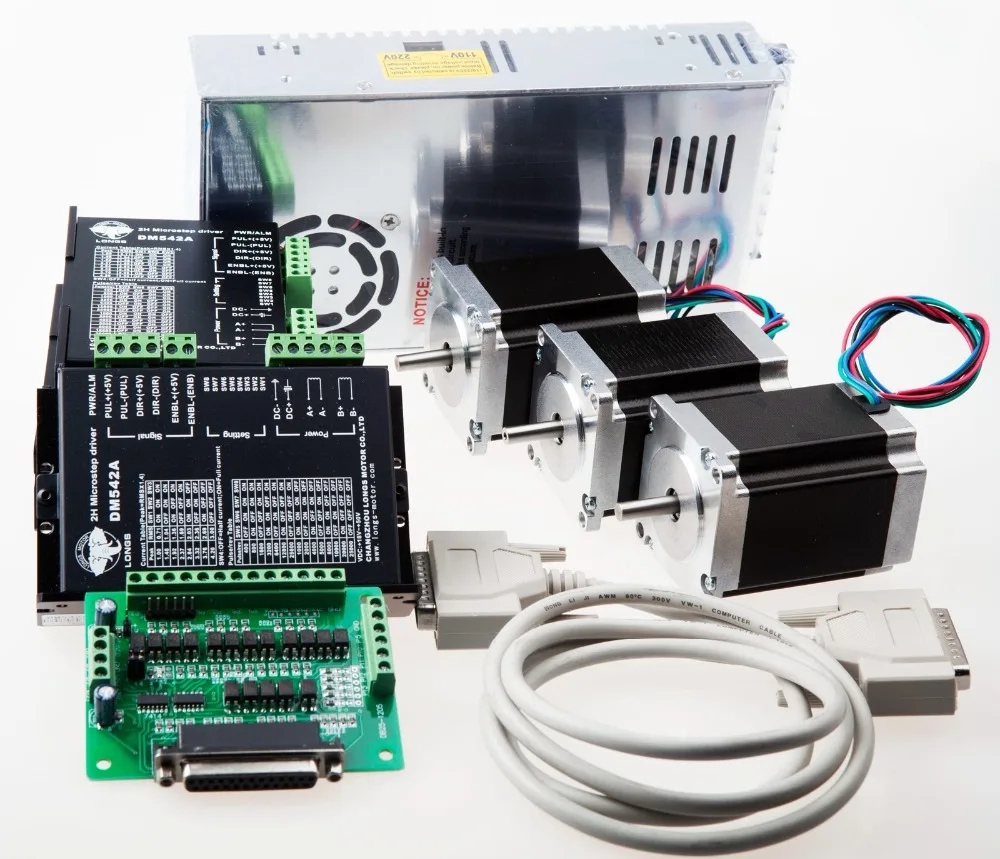

Бесплатная доставка в США/ЕС 3 оси Nema 23 шаговый двигатель 270oz. in 23HS8430 3A DM542A драйвер
25 015,44 - 27 662,57 руб.
86BYG редукторный шаговый двигатель 50:1 Nema34 L 66 мм 4A ЧПУ маршрутизатор | Обустройство
9 844,72 руб.
Nema 17 Stepper Motor 5Pcs Bipolar 1.7A 40Ncm(56.2Oz.In) 40Mm Body 4-Lead With Cable And Connector For 3D Printer/Cnc | Обустройство
Горячая продажа! Nema23 76 мм CNC шаговый двигатель 3A 270 Oz-in для ЧПУ маршрутизатор |
2 034,58 руб.
10mm micro stepping motor lens focusing screw nut stepper | Обустройство дома
US $6.00
Shop103343 Store
Магазина Shop103343 Store работает с 11.08.2010. его рейтинг составлет 100 баллов из 100. В избранное добавили 277 покупателя. Средний рейтинг торваров продавца 5 в продаже представленно 506 наименований товаров, успешно доставлено 195 заказов. 5 покупателей оставили отзывы о продавце.
Характеристики
3Axis Nema 34 Stepper Motor 1232OZ-IN 5.6A & stepper motor driver DM860A 3pcs power CNC PLASMA &Mill | Обустройство дома
История изменения цены
*Текущая стоимость 49 227,94 - 53 330,26 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 62518.97 руб. | 63768.22 руб. | 63143 руб. |
| Jan-18-2026 | 50704.99 руб. | 51718.2 руб. | 51211 руб. |
| Dec-18-2025 | 61534.67 руб. | 62765.54 руб. | 62149.5 руб. |
| Nov-18-2025 | 61041.39 руб. | 62262.74 руб. | 61651.5 руб. |
| Oct-18-2025 | 48735.44 руб. | 49710.12 руб. | 49222.5 руб. |
| Sep-18-2025 | 60057.46 руб. | 61258.45 руб. | 60657.5 руб. |
| Aug-18-2025 | 59565.60 руб. | 60756.27 руб. | 60160.5 руб. |
| Jul-18-2025 | 59072.1 руб. | 60253.14 руб. | 59662.5 руб. |
Описание товара
We are looking for distributors in the world,if you are intrested in our programme,please contact us!Let's grow together!!!

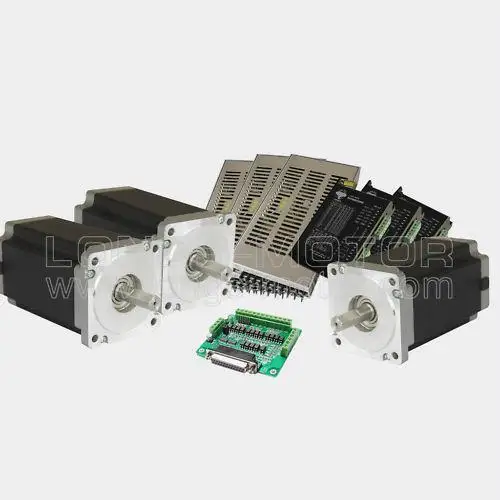

What's in Box?
1. 3 pcs Nema 34 stepper motor 1232 oz.in bipolar
2. 3 pcs Stepper motor driver, 7.8A ,256 Micsteps,replacing M860
3. 3pcs Power Supply 350W-60VDC/5.8A

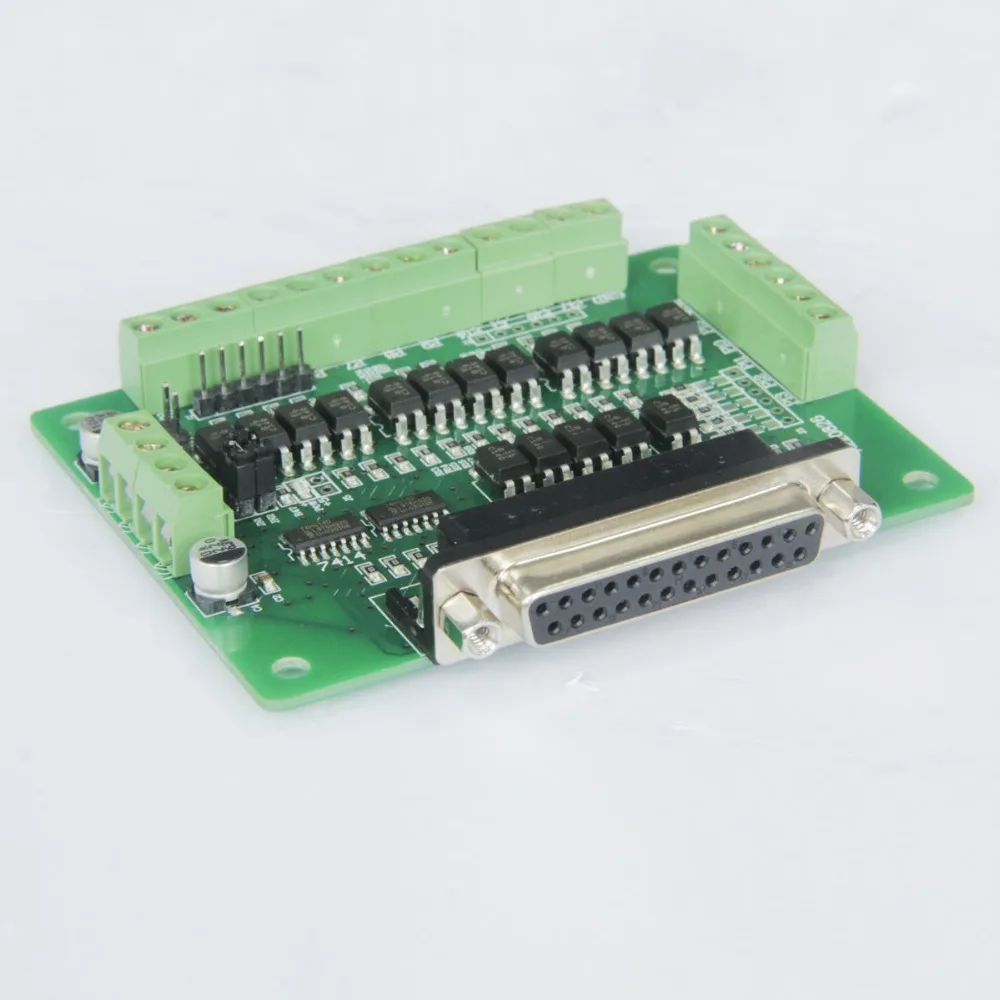

4. 1 pc Breakout Board
More quatities, More discounts!!
Detailed information :

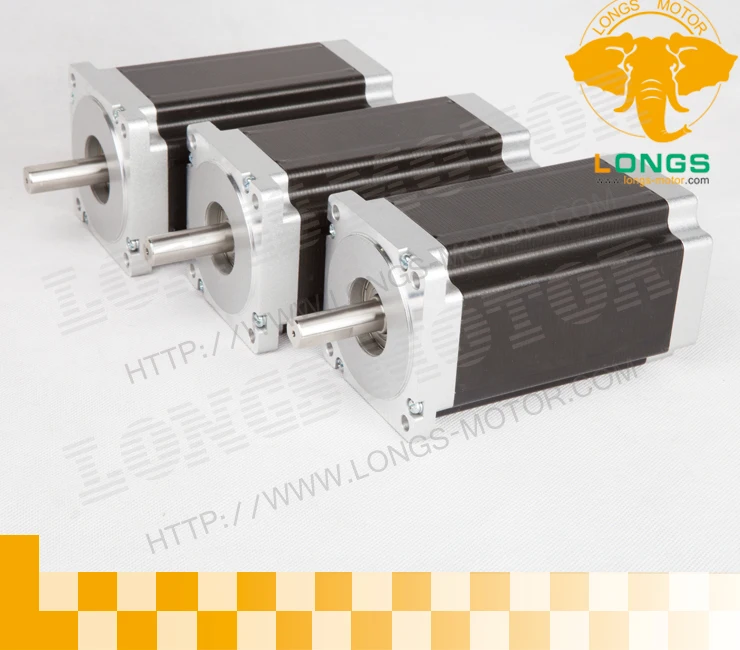

1. Nema 34 stepper motor:
Technical SpecificationsPart No.: 34HS1456
Frame Size: NEMA34
Step Angle: 1.8 degree
Voltage: 3.08V
Current: 5.6A/phase
Resistance: 0.55 Ohm/phase
Inductance: 5.5 mH/phase
Holding torque: 8.4N.m 1200oz-in
Rotor inertia: 2700g-cm2
Number of wire leads: 4
Weight: 3.8 kg
Length: 118MM
The shaft of the stepper motor is 14MM,the length of the shaft is 37MM.
If you need the detailed mechanical dimensions ,you can contact with the me any time.
BLUE B-
RED A+
GREEN A-
YELLOW B+
2.Stepper motor driver DM860A:
Introduction:
DM860A is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 24VDC to 80VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 57mm to 110mm outside diameter and less than 8.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DM860A run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.Features:l High performance, low pricel Average current control, 2-phase sinusoidal output current drivel Supply voltage from 24VDC to 80VDCl Opto-isolated signal I/Ol Overvoltage, under voltage, overcorrect, phase short circuit protectionl 14 channels subdivision and automatic idle-current reductionl 8 channels output phase current settingl Offline command input terminall Motor torque is related with speed, but not related with step/revolutionl High start speedl High hording torque under high speed3. Power Supply: The power is 350W, the output voltage/current is 60VDC/ 5.8A. 4. Breakout Board:Built in DB25 male connector.
DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
DB25 Input Pin: P10,P11,P12,P13,P15.
DB25 GND Pin: P18-P25.
Power supply: +5V DC.
Built in C-class Optical-coupler.
High quality with Surface-mount Tech.
Our Stepper Motors are used on small to mid-sized CNC mills & milling machines, CNC lathes, Pick-n-place machines, Laser Engravers and Laser Cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. These motors have been used in precision telescope positioning systems and robots.
Hello,dear friend,thanks for you visiting my store very much.if you have any questions or need more detailed info of our goods,please feel free let me konw,I'll try my best to support you,thanks.
Wish you have a good shopping!:-)
