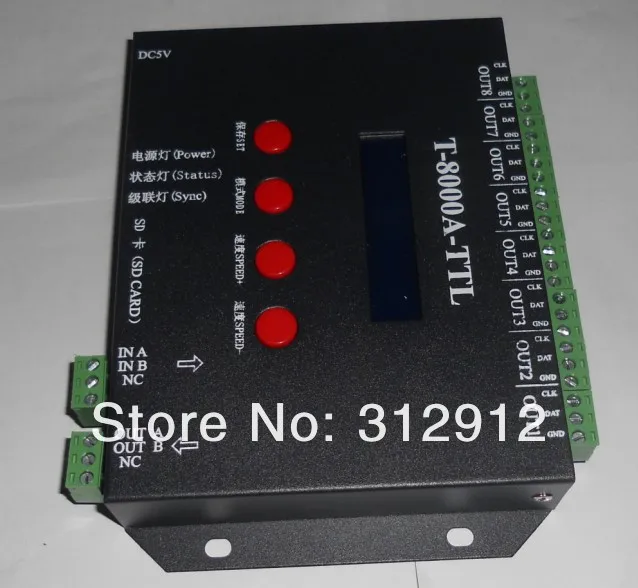

Eight-port offline T-8000A manual

T-8000A system features

32—256 Gray, Gamma correction procession software

Combined with video encoding and broadcasting software LedEdit , support rules and specific-shaped handle, and other points, line lights source

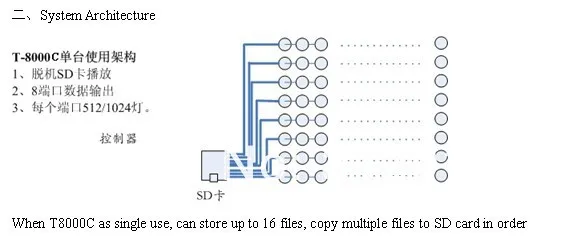

Eight-port output,port 512/1024 lights

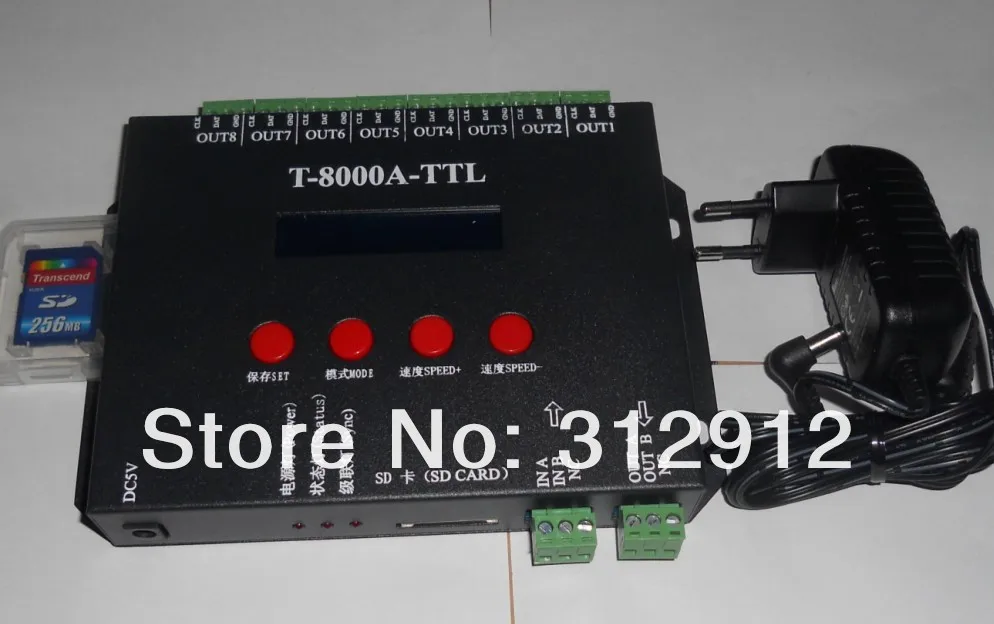

Playback content stored in SD card, can stand-alone play, also multiple cascade

NOTE:T-8000C port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced.

When multiple cascade, only the first controller buttons work, followed by sub-control buttons are automatically shielded, at this point can adjust playback file and speed through the first controller

NOTE:At this time the first controller's buttons can control all sub-control keys

Support chips:

NOTE:When multiple cascade, only the first controller buttons work, followed by sub-control buttons are automatically shielded, at this point can adjust playback file and speed through the first controller

NOTE:At this time the first controller's buttons can control all sub-control keys

Special parameters:

Memory card:

Type:SD card(if control more lights, suggest using high-speed SD card)

Capacity:256MB -2GB

Format:FAT format

Store file:*.led

Physical parameters:

Temperature:-20-85

Power supply:DC 5V input

Power:4W
