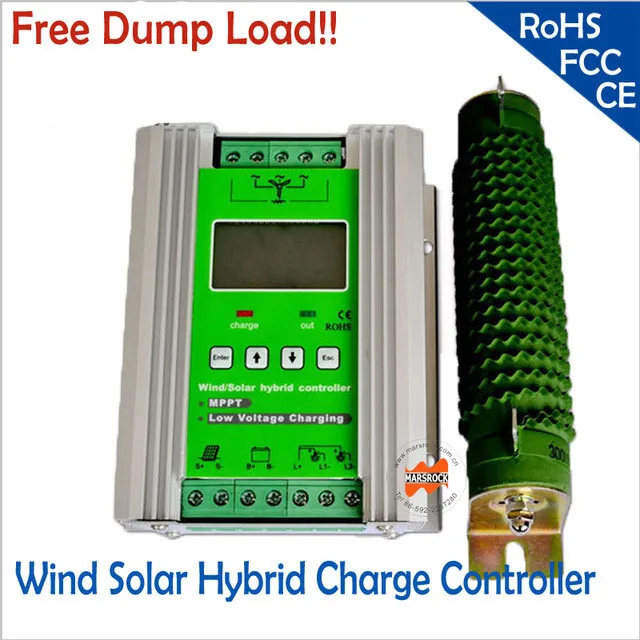

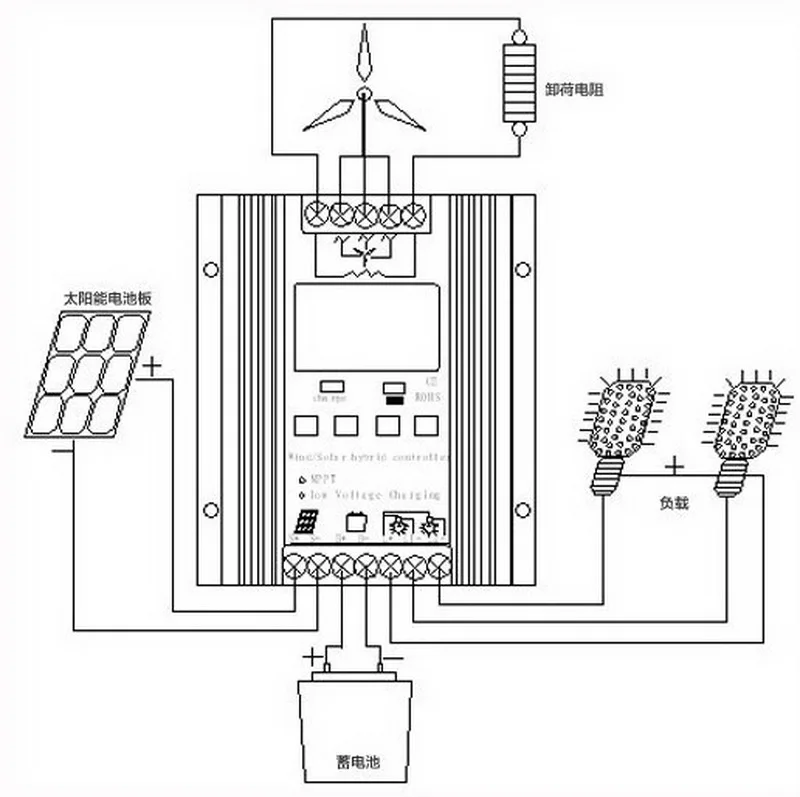

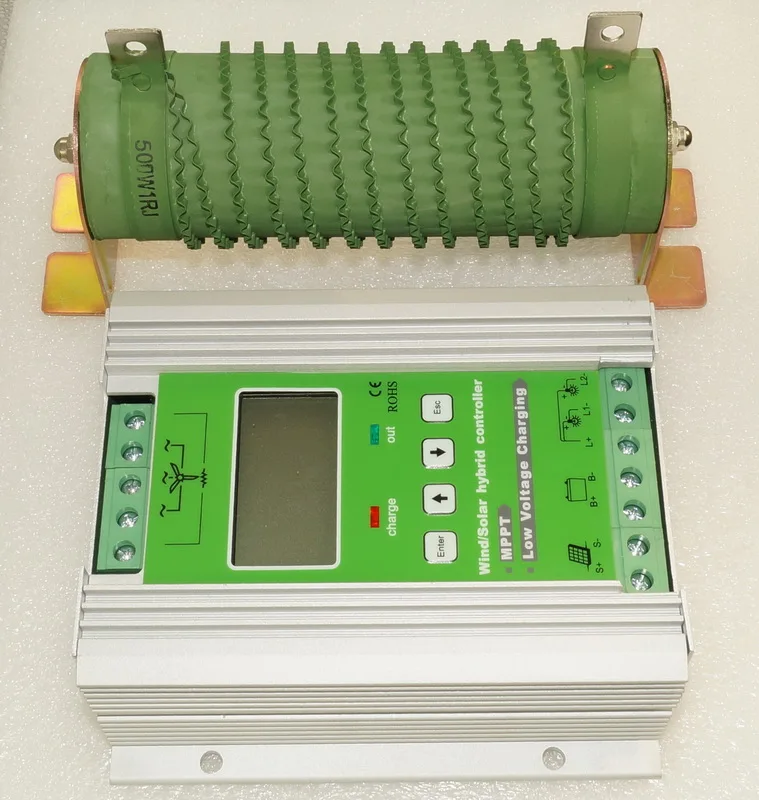

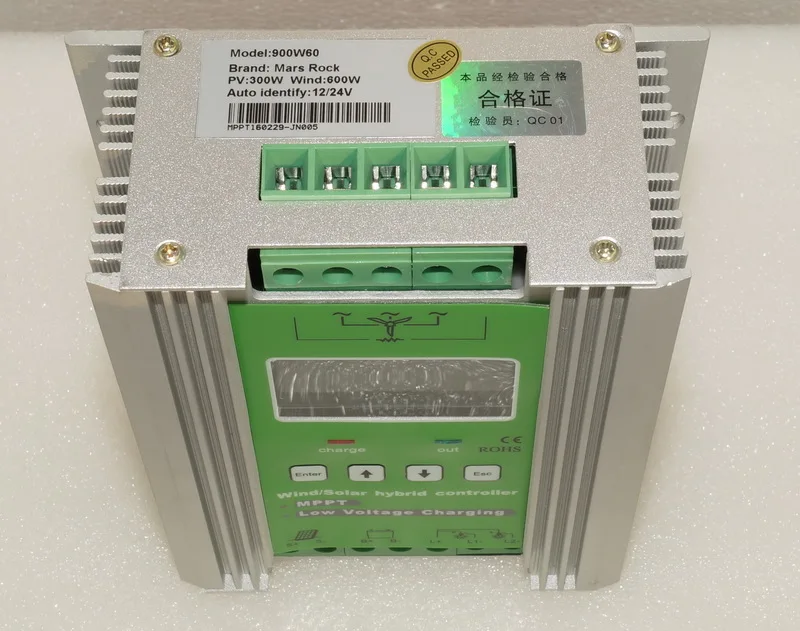

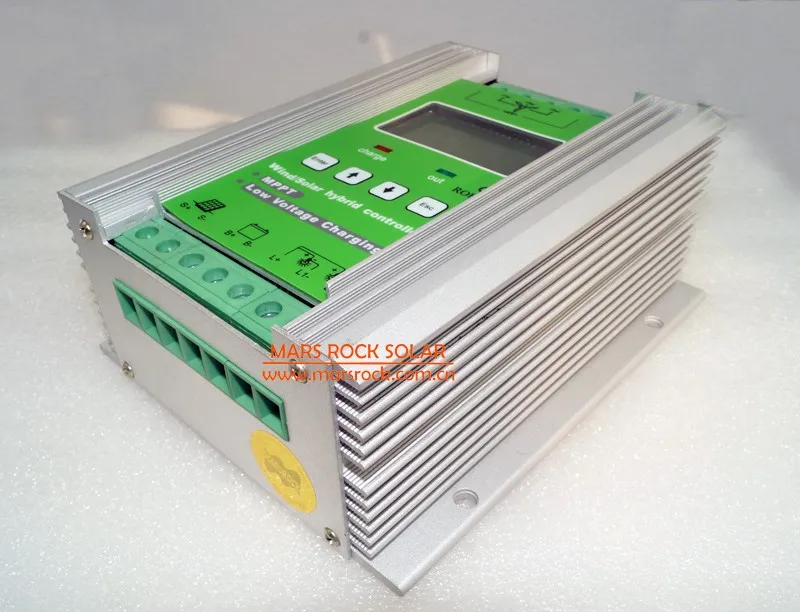

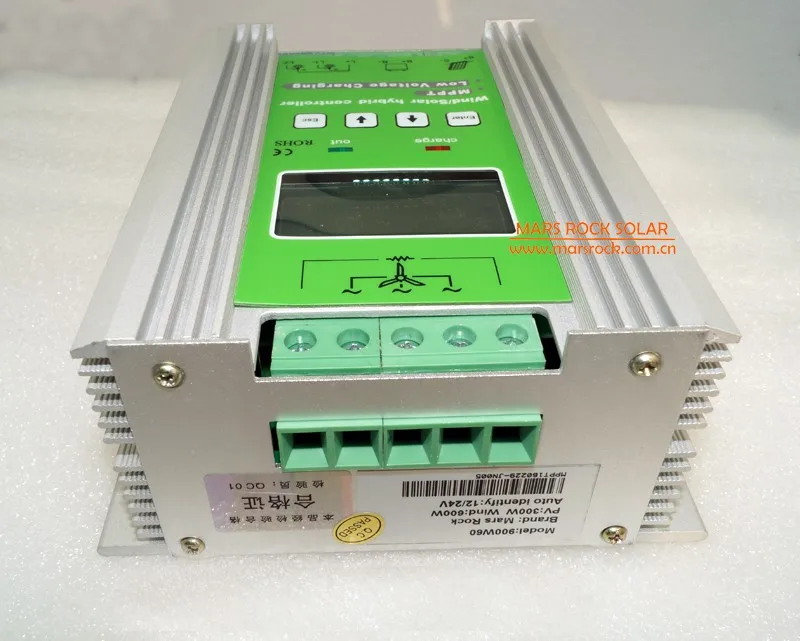

1100w Auto 12/24V Off Grid Intelligent MPPT Wind Solar Hybrid Charge Controller with 3 years warranty / LCD display

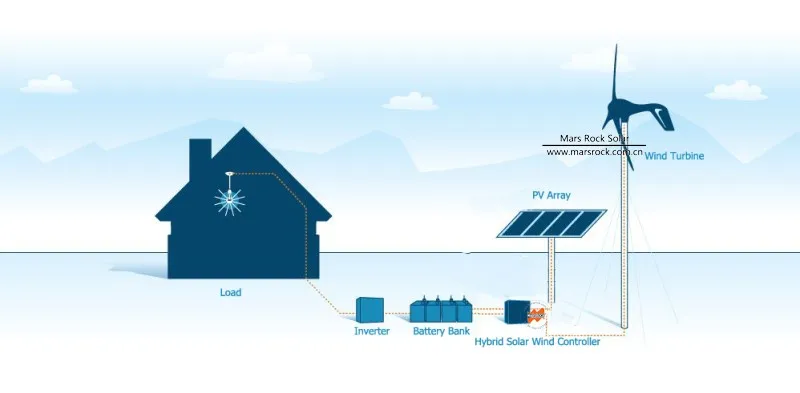

The controller is designed specifically for hybrid wind solar street light system, which can make the wind solar hybrid street light system of various resources to achieve the best configuration, of course, the controller with some simple Settings can also be used in household system.

Intelligent design succinct structure,powerfulcontroll, stable performance, safety and reliability of the products.Choose MPPT Wind turbine charging ways, charging more efficiency than ordinary PWM way more superior. The boost charge function, solve the low charging efficiency problem of low wind speed (optional). Professional digital intelligent control.

Features:

1.The Wind turbine charging part and Solar charging part are independent of each other, can make Wind turbine controller or solar controller using independent (As a Wind turbine controller cannot use light control function).

• Wind turbine charging adopted booster MPPT technology, which makes under low wind speed, the Wind turbine's electricity can still be used;
• In the high wind speed or the Wind turbine of power is beyond the scope of the battery and load absorption, the controller immediately launched the stepless unloading function,protection system of the equipment.
• Solar charging using in series MOS tube PWM technology, which makes the controller power consumption is small, the system more stable.

2.Discharge part working mode can be set, light control mode, time control function etc, The user can be set up according to the requirements on its own combination.

3.Manmachine interface of the controller USES a custom LCD screen and four key operation mode, the user to use simple and easy to use, popular and easy to understand, convenient and quick.

4. The controllers with perfect protection function, including: lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc.

Technical note:

In offgrid system, there is always a pair of contradictions that produce energy source and energy absorption of load does not match the problem, may be the following situation: 1. The power supply can be issued under the condition of sufficient electrical energy of the load is not likely to work and the battery power is full, so this time we need to send power electricity do discharge processing, otherwise may cause permanent damage to the equipment;2. In the power supply does not have enough electric power support is likely to appear when battery power is rarely lead to load can not have normal work, so we also need to improve power generation capacity in this situation.

In our wind solar system, solar panels power relative to the Wind turbine power is very stable power supply, so we had a wind solar hybrid controller mainly for Wind turbine design the booster MPPT charging technology and step-less unloading function, and in view of the solar panels still take simple and efficient PWM charging technology.

Booster MPPT mainly for most of the time in many parts of the wind power is not enough to support a generator to the condition of the battery charging, specific working principle is: the Wind turbine under the condition of wind speed reach the rated wind speed, the resulting voltage and power are not reach the rated power, we through realtime acquisition Wind turbine by means of booster circuit of voltage and current from the boost voltage to the battery voltage to the system requirements, using the software MPPT algorithm make the Wind turbine of power use as much as possible.

Stepless unloading function mainly aimed at the first case, when don't need additional energy, will generate the energy consumption of the Wind turbine on unloading device, the controller dedicated connection port of unloading device, the user can be selected according to actual condition when the choose and buy, we suggest in good wind conditions, such as coastal and western is empty,you must configure unloading;In some inland areas where wind conditions in general, we also recommend that try to configure unloading.

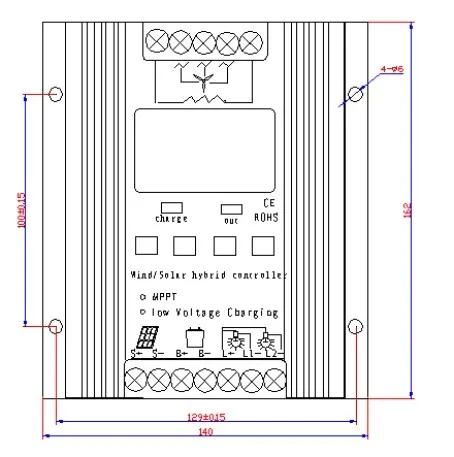

Dimension

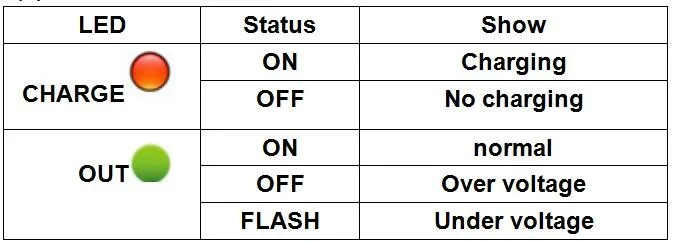

Status Indication

Button instructions

Button1:Press this button to enter setup interface or switch set up program;

Button2:Click this button to switch down in page views,in the setup interface click this button is used to reduce the parameter values, step 0.1 V.

Button3:Click this button to switch up browsing on page views,in the setup interface click this button is used to increase the parameter value, step 0.1 V.

Button4:Click this button to exit the setup interface, and save the parameters.

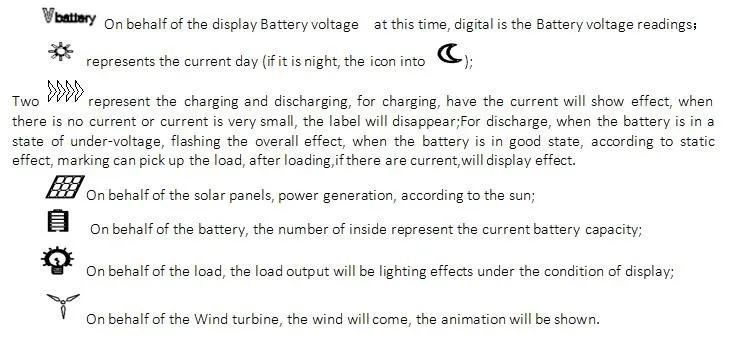

LCD screen (the default interface)

To the user in accordance with the specifications, general automatically entered into the following interface

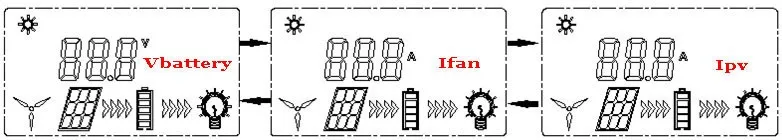

Parameters to browse

User press down key to view the Wind turbine charging current "IWind turbine",the solar charging current"Ipv", press the up button to return to the interface of a parameter.

The above three pages, collectively known as browse pages, when a minute don't operating controller buttons, LCD back-light will automatically go out.after pressing any key will once again lit back-light and continuously for one minute.

Parameter Settings

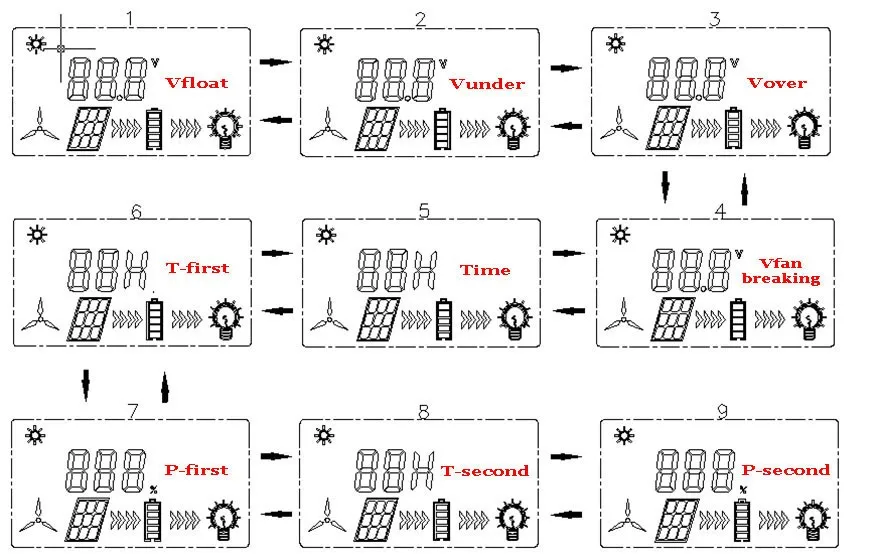

Press Enter key,the controller into the parameter set interface, as shown infollowedpic,“Vfloat” represent this time can be set to float charging voltage value, the user can press or key numerical,each time you press the increase or decrease 1v,set up finished,the user can press the ESC key to exit to browse the first page, can also continue to press Enter to switch to the next project, operation method as above.

Use environment
1. Should be in a clean dry ventilated environment.
2. Avoid direct sunlight and the sun, rain, humid mist of the environment.
3. To avoid dust in a soil, dust in the environment.
4. The battery should be placed away from 0.5m or more.
5. Is strictly prohibited in flamable, explosive gas environments, to guard against flames and sparks!
6. Ambient temperature -25 degree  - +50 degree .
7. The air relative humidity less than 85% (25 degree ± 5 degree ).

Safety and protection
The controller has the solar energy the counter-attack, reverse connect battery, battery open circuit, lightning protection, wind speed and over voltage protection function.
Note: lightning protection refers to the last level of protection, equipment necessary for lightning prone areas, need to use special multistage lightning protection system of lightning protection device, etc.If the user has this requirement, it is necessary to increase the corresponding cost of distribution system and indicate when you order it.

We provided product to the warranty period of one year since it is sold. If the product is exceed warranty or damaged by transportation, improper use, human element, force majeure, it is not under warranty.

Statement: we reserve the right to change products, product updates without prior notice

FQA:

1.    What kinds of battery type are workable for this controller?

1)  This model is designed for charging GEL and lead-acid battery.

2) But there is another type wind solar hybrid controller is workable for GEL/LEDD-ACID/LITHIUM ION battery

2.    Does this controller automatically recognize 12V and 24V system?

Yes.

3.    What kinds of protection function this controller designed for?

The controllers with perfect protection function, including: lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc. Any question, pls contact with me anytime..

4.    How do get MPPT mode to work

This product designed in MPPT working way to wind power, and PWM working way to solar power. Bellows is the MPPT working progess for your reference:
1.The Wind turbine charging part and Solar charging part are independent of each other, can make Wind turbine controller or solar controller using independent (As a Wind turbine controller cannot use light control function).
•Wind turbine charging adopted booster MPPT technology, which makes under low wind speed, the Wind turbine's electricity can still be used;
•In the high wind speed or the Wind turbine of power is beyond the scope of the battery and load absorption, the controller immediately launched the stepless unloading function,protection system of the equipment.
•Solar charging using in series MOS tube PWM technology, which makes the controller power consumption is small, the system more stable.


5.    Does this controller need to connect the solar panel and the wind turbine at the same time when is working?

The Wind turbine charging part and Solar charging part are independent of each other, can make Wind turbine controller or solar controller using independent (As a Wind turbine controller cannot use light control function).

6.    What kinds of parameter can be set by user through LCD screen? And how to set?

1)    Discharge part working mode can be set, light control mode, time control function etc, The user can be set up according to the requirements on its own combination.

2)    Manmachine interface of the controller USES a custom LCD screen and four key operation mode, the user to use simple and easy to use, popular and easy to understand, convenient and quick.

7.  How to calculate the max charge current in 12v or 24V system?

1) The model 1400w80 means the max can be connected with WIND 800W+SOLAR 600W, the system voltage normal is designed in 24V. so the max charging current is 1400W/24V=58.3A.

2) The models of 500W30(300W wind+200W solar) ,450W30(300W wind+150W solar) ,750W50(500W wind+ 250W solar) are designed for 12V system. So the max charging current in 12V system is 750W/12V=62.5A

7.    How to design my power system connect with wind and solar power?

1)    Model: 1400W80 means the max wind connecting with 800W, solar max connect with 600W.

But in order to extend the controller life, we advise the user to connect lower wind and solar to put into power. Otherwise in long time working in max power connecting, the controller will be easy damaged in future.

Any question, please feel free to contact with me:
